Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Drain fluid from the A/T. Refer to Changing the A/T Fluid (ATF) .

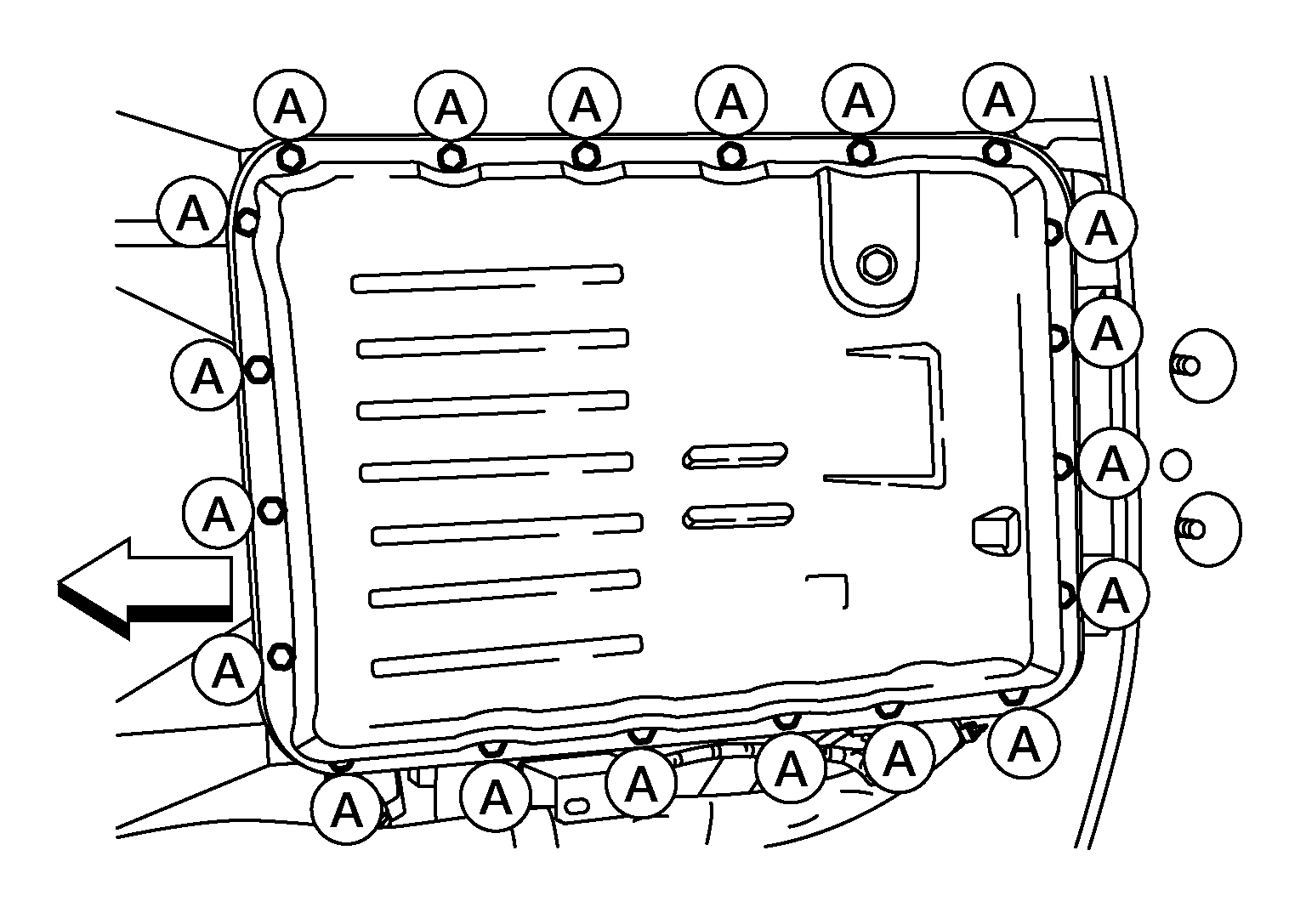

Remove bolts (A) from the oil pan and remove oil pan.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

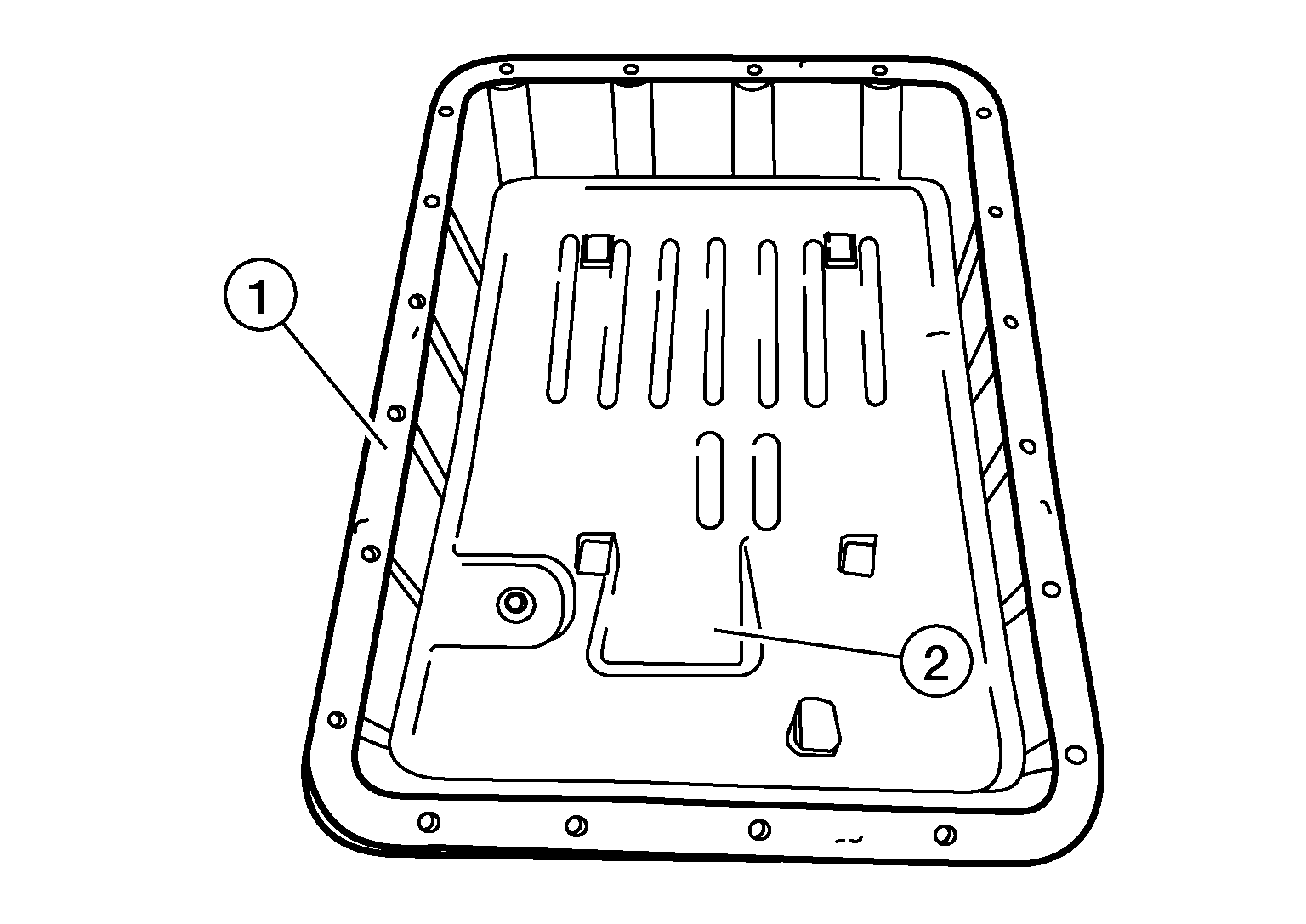

Remove oil pan gasket (1) from oil pan (2).

Courtesy of NISSAN NORTH AMERICA, INC.

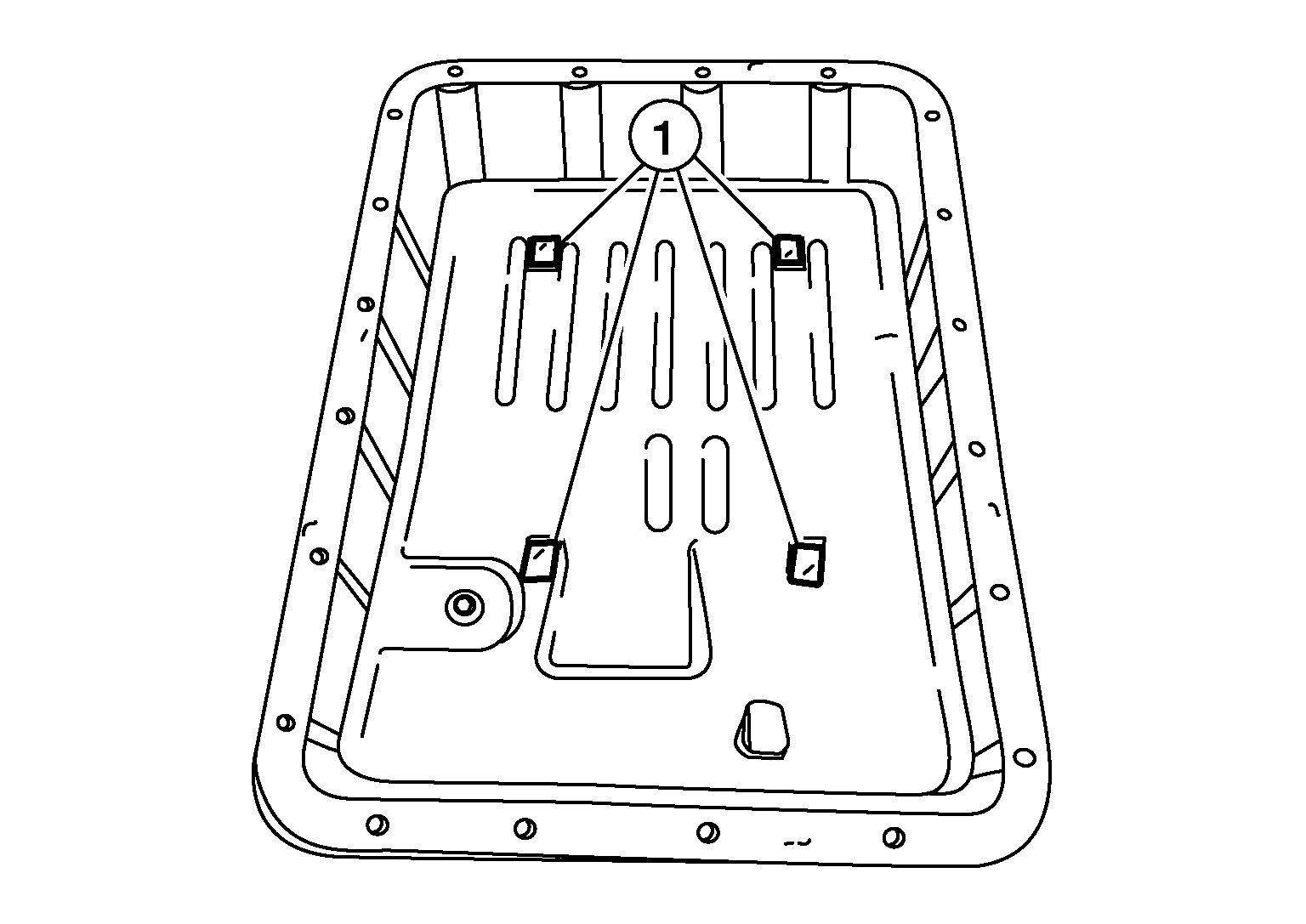

Remove magnets (1) from oil pan.

Courtesy of NISSAN NORTH AMERICA, INC.

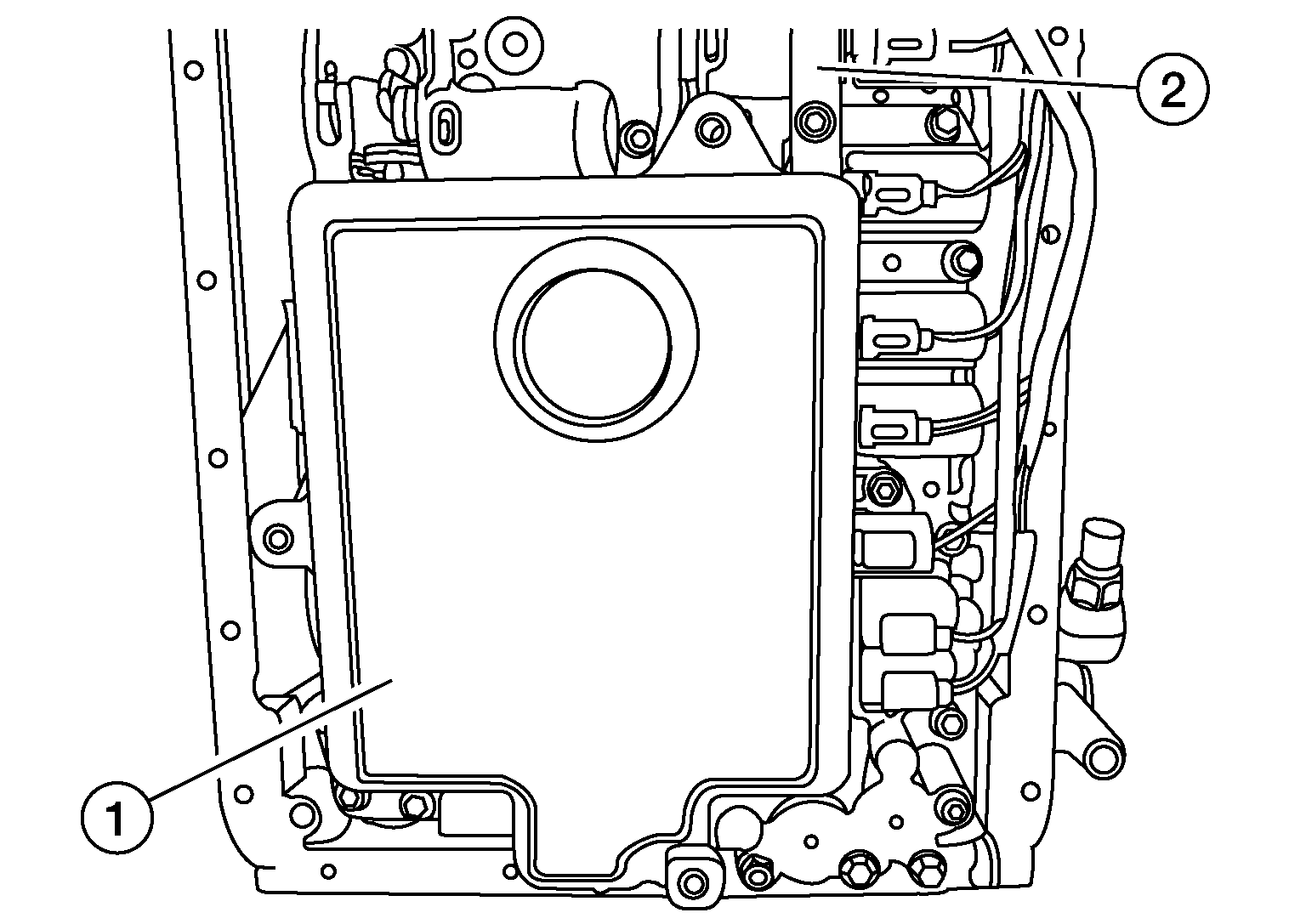

Remove oil strainer (1) from control valve (2).

Courtesy of NISSAN NORTH AMERICA, INC.
