Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

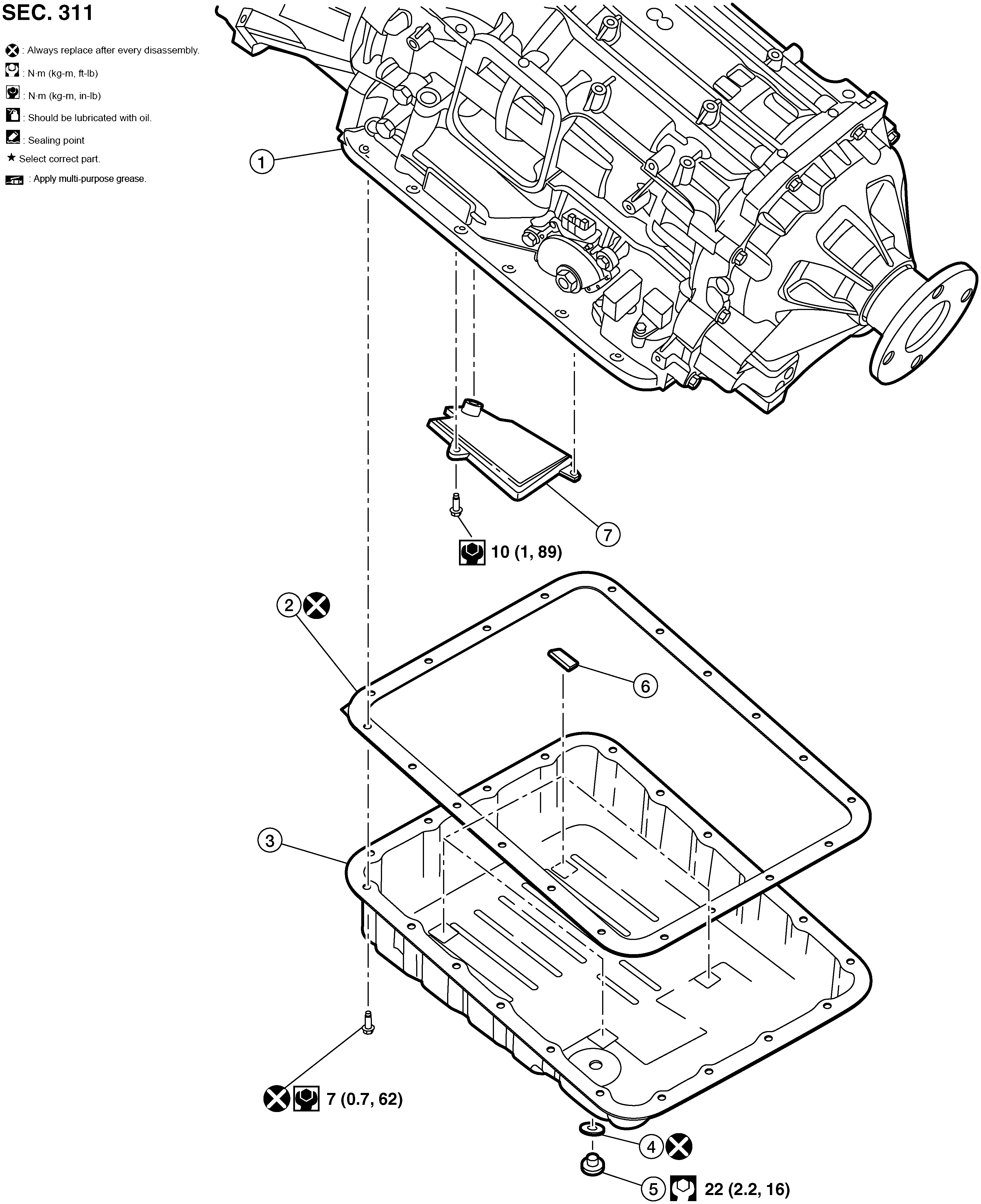

Fig 1: Oil Pan With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T assembly	2.	Oil pan gasket	3.	Oil pan
4.	Drain plug gasket	5.	Drain plug	6.	Magnet
7.	Oil strainer
