Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery or batteries. Refer to Battery Disconnect .
  2. Remove rear propeller shaft. Refer to Removal and Installation .
  3. For (4WD) remove front propeller shaft. Refer to Removal and Installation for Non-XD and Removal and Installation for XD.
  4. Support A/T assembly (1) with a transmission jack (A).
    GNSAWDIA1425Z-425Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
  5. Remove nuts and bolts (A) and remove transmission cross member.
    GNSALDIA0680Z-680Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect the oil charging pipe from A/T assembly.
  7. Lower the A/T assembly enough to access the input speed sensor.

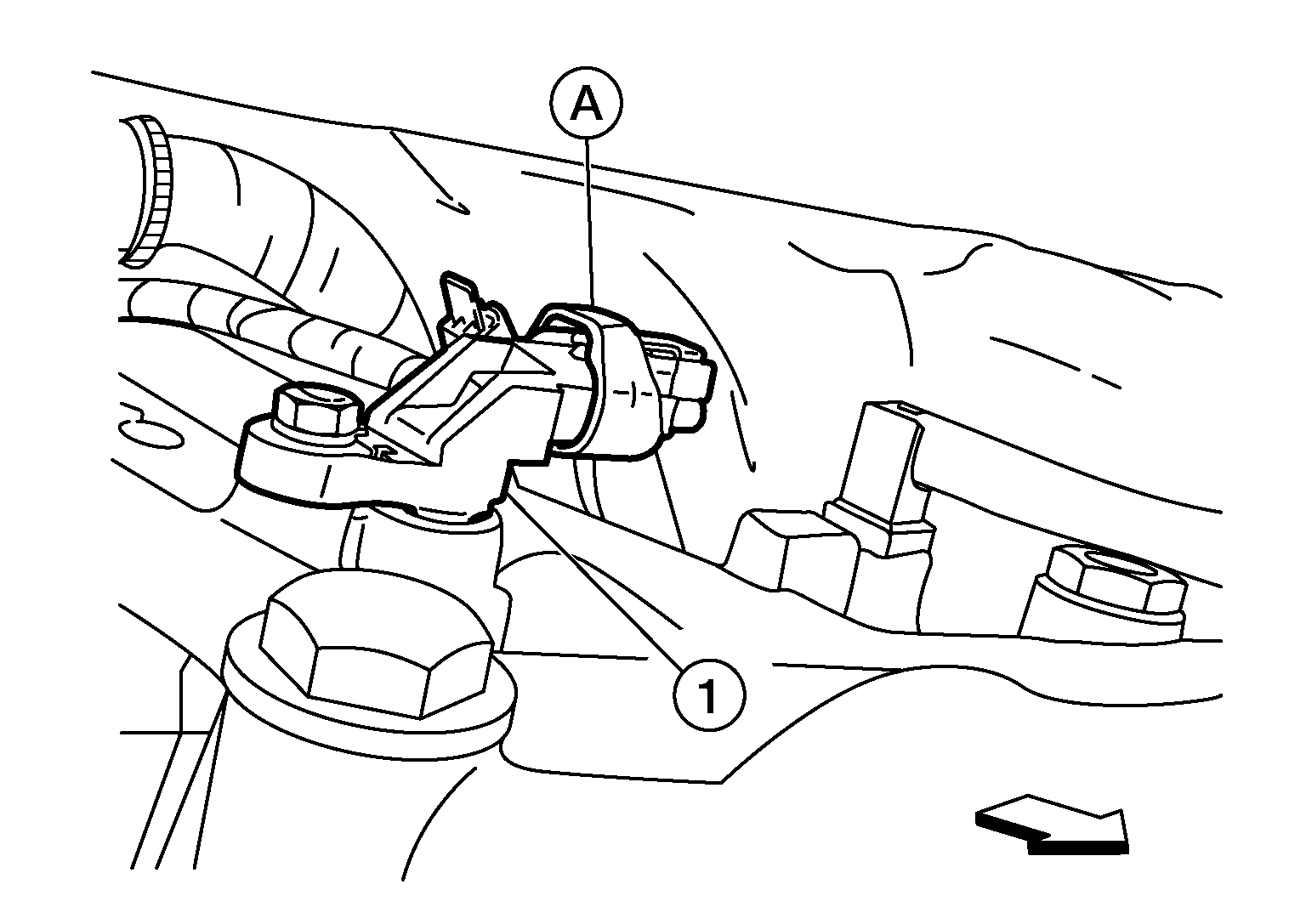

  8. Disconnect the harness connector (A) from input speed sensor (1).
    GNSALDIA0700Z-700Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  9. Remove input speed sensor from A/T assembly.
