Removal and Installation (Fluid Cooler Tubes and Hoses): Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be careful not to bend A/T fluid cooler tubes.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Remove front under cover. Refer to Removal and Installation .
Release hose clamps on fluid cooler hose A from fluid cooler tube A and fluid cooler tube C.
Release hose clamps and remove fluid cooler hose B from fluid cooler tube B and fluid cooler tube E.

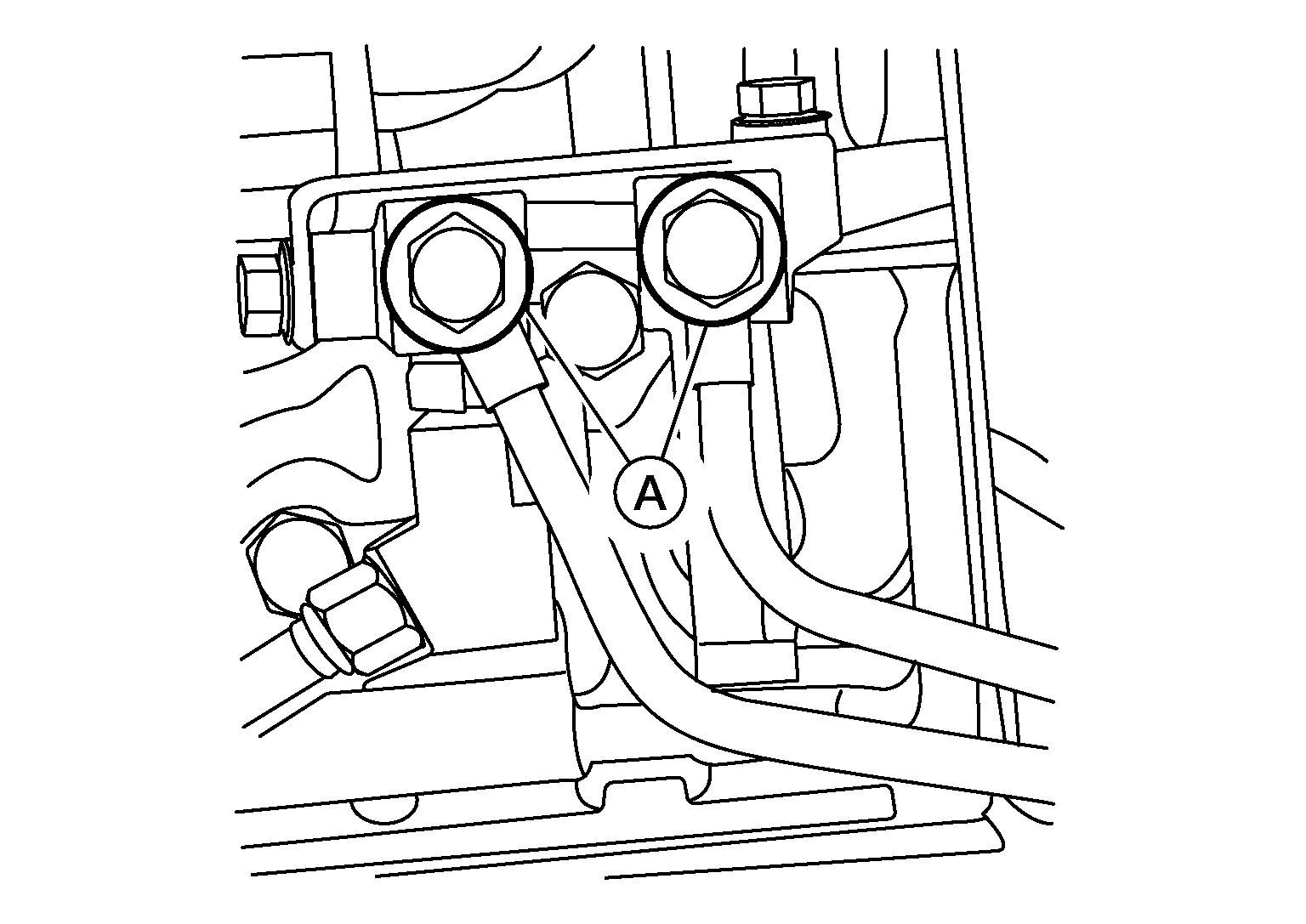

Remove bolts (A) on fluid cooler tubes A and B.

Courtesy of NISSAN NORTH AMERICA, INC.

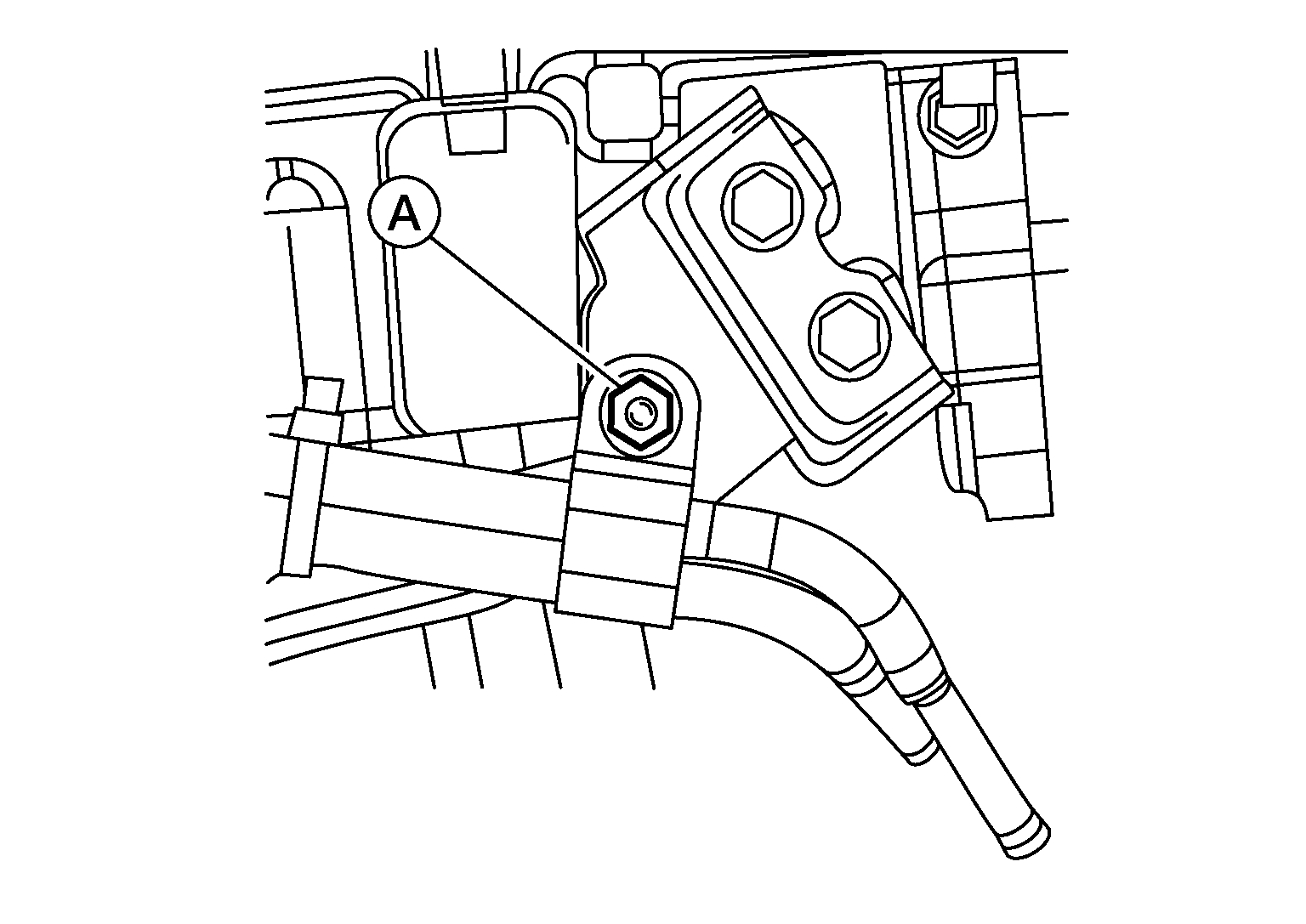

Remove bolt (A) on bracket A.

Courtesy of NISSAN NORTH AMERICA, INC.

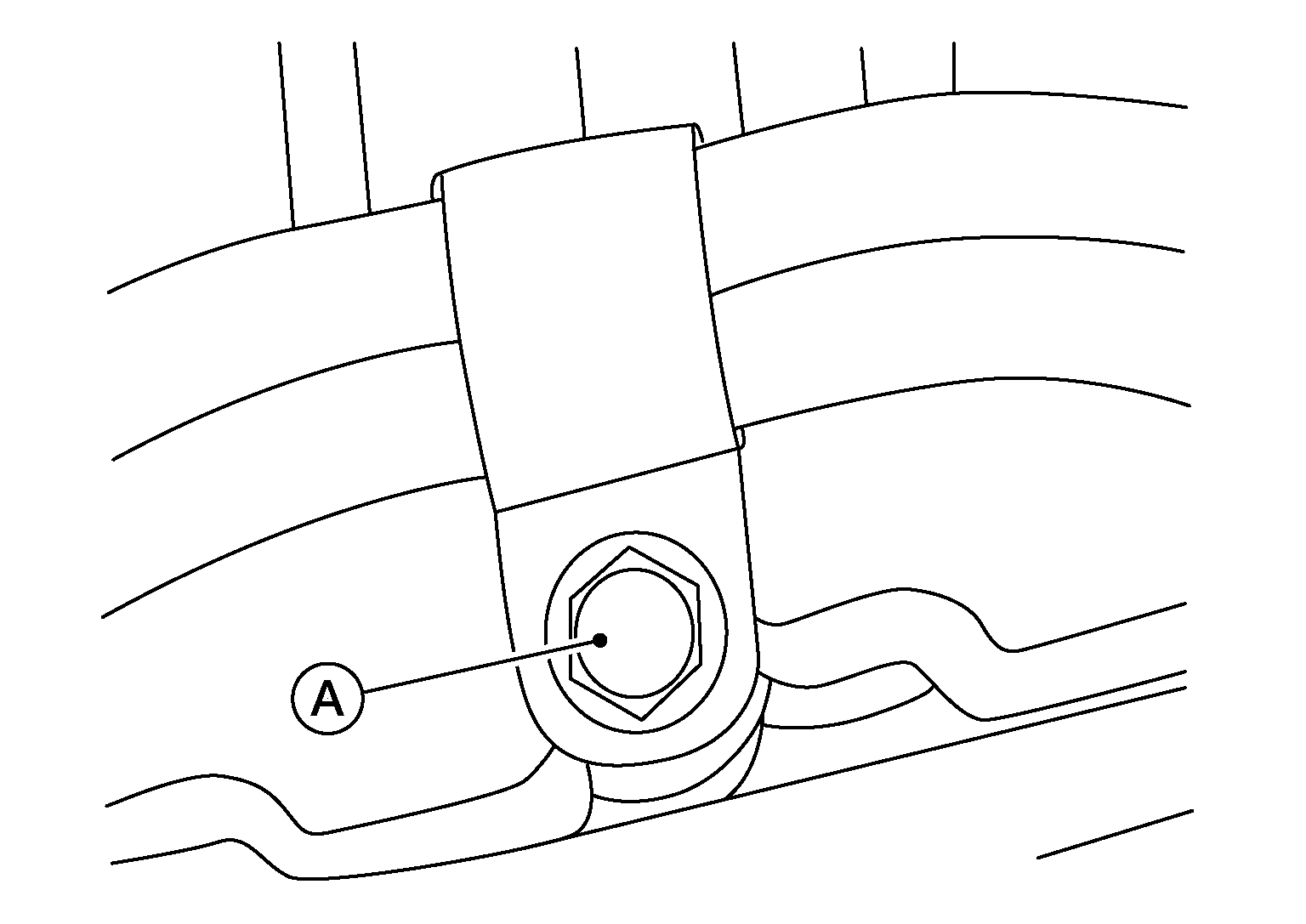

Remove bolt (A) from tube clip.

Courtesy of NISSAN NORTH AMERICA, INC.

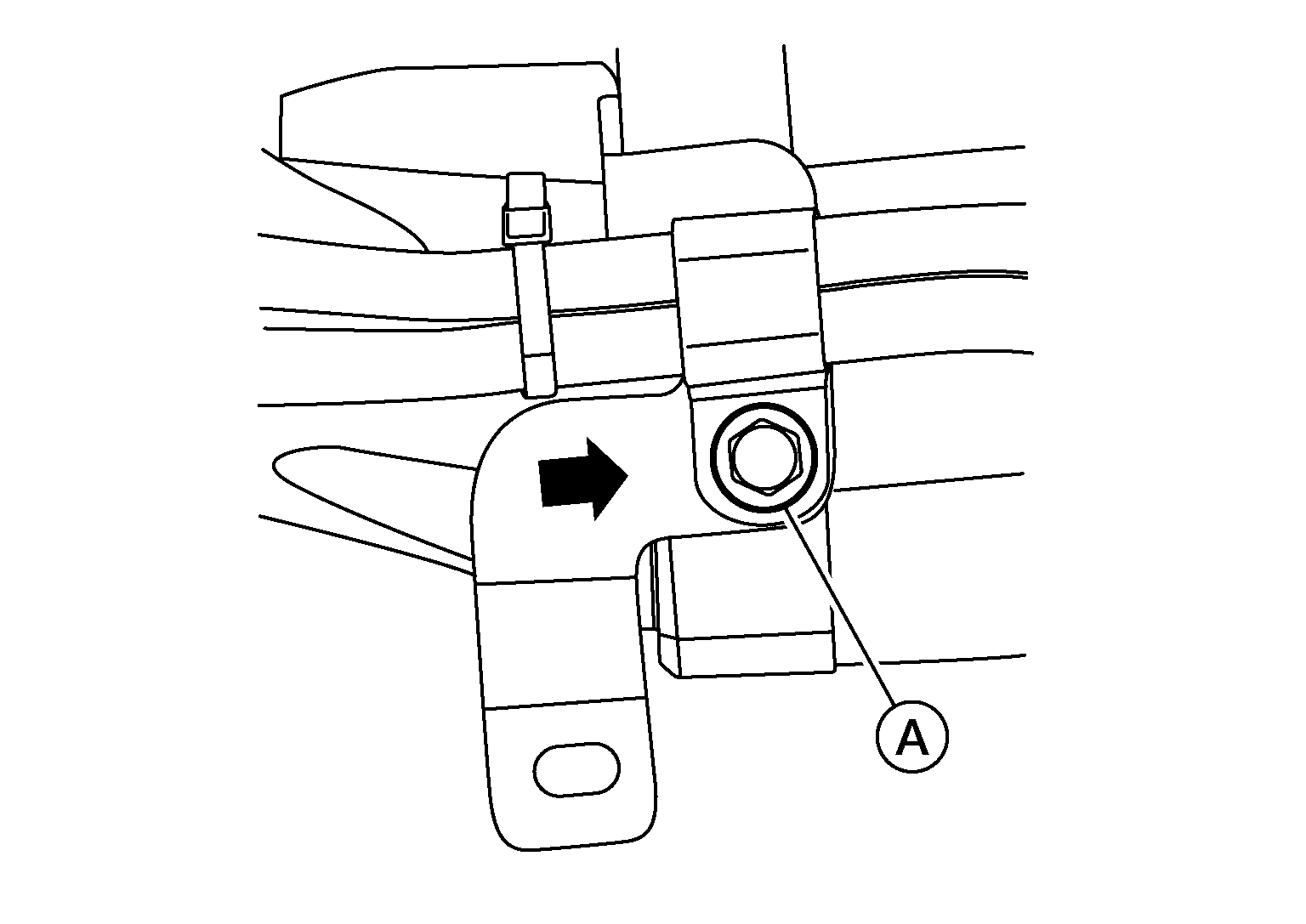

Remove nut (A) on bracket B.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove fluid cooler tubes A and B from A/T assembly.

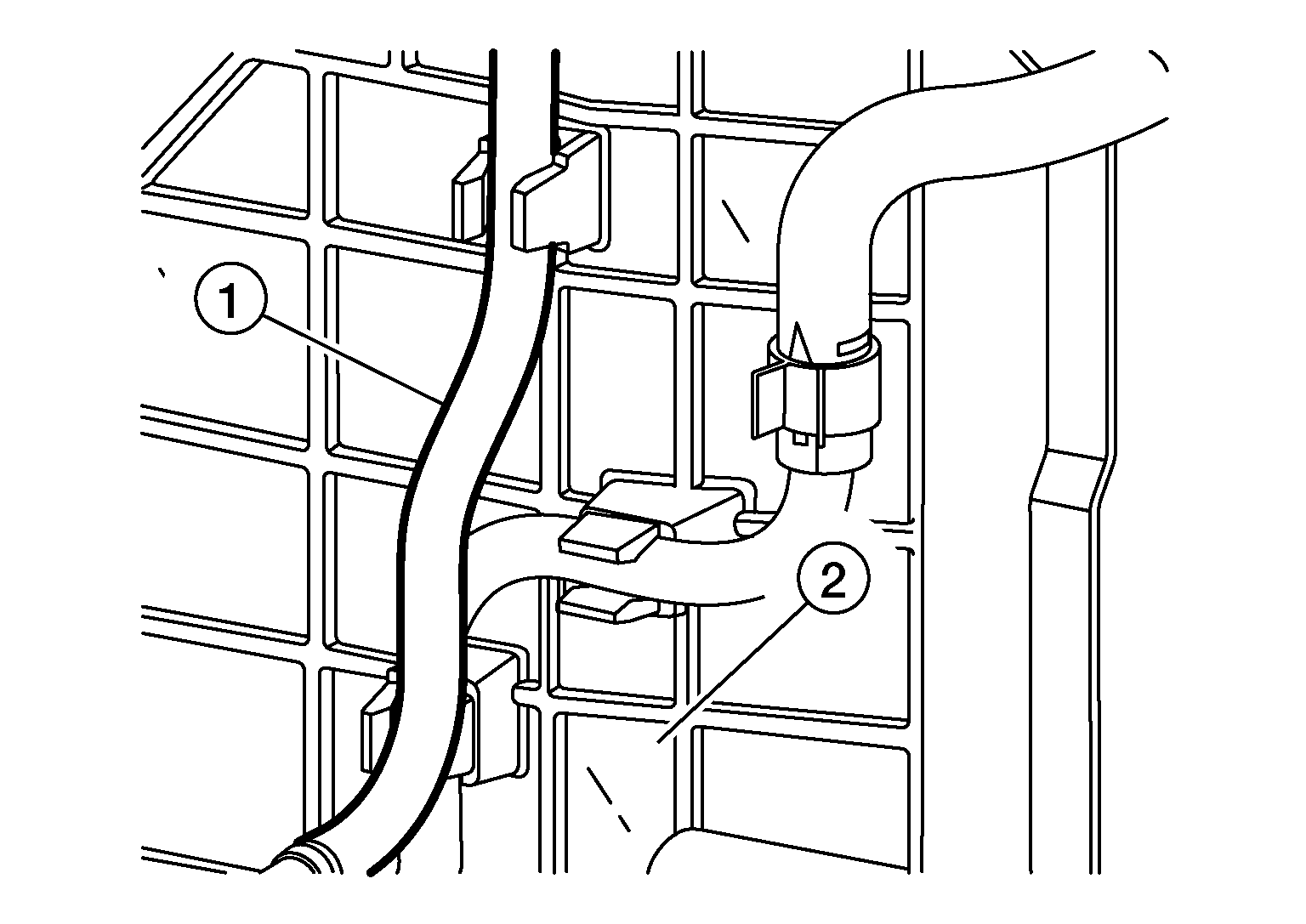

Release hose clamp on radiator and un-clip fluid cooler tube E (1) from radiator shroud (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Release hose clamp connecting fluid cooler tube C and fluid cooler hose C, un-clip fluid cooler tube C (1) and remove from radiator shroud (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Release hose clamp on A/T fluid cooler and remove fluid cooler hose C.
Release hose clamps on fluid cooler tube D.
Un-clip fluid cooler tube D (1) from radiator shroud (2) and Remove fluid cooler tube D (1).

Courtesy of NISSAN NORTH AMERICA, INC.
