Removal and Installation (Fluid Cooler Tubes and Hoses): Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Finger tighten bolts (A).
    GNSALDIA0705Z-705Courtesy of NISSAN NORTH AMERICA, INC.
  2. Install nut (A) to specification.
    GNSDB124210Courtesy of NISSAN NORTH AMERICA, INC.

    Nut (A)

    : 5.1 N.m (0.52 kg-m, 45 in-lb

  3. Install bolt (A) to specification.
    GNSALDIA0856Z-856Courtesy of NISSAN NORTH AMERICA, INC.

    Bolt (A)

    : 5.1 N.m (0.52 kg-m, 45 in-lb

  4. Install bolt (A) to specification.

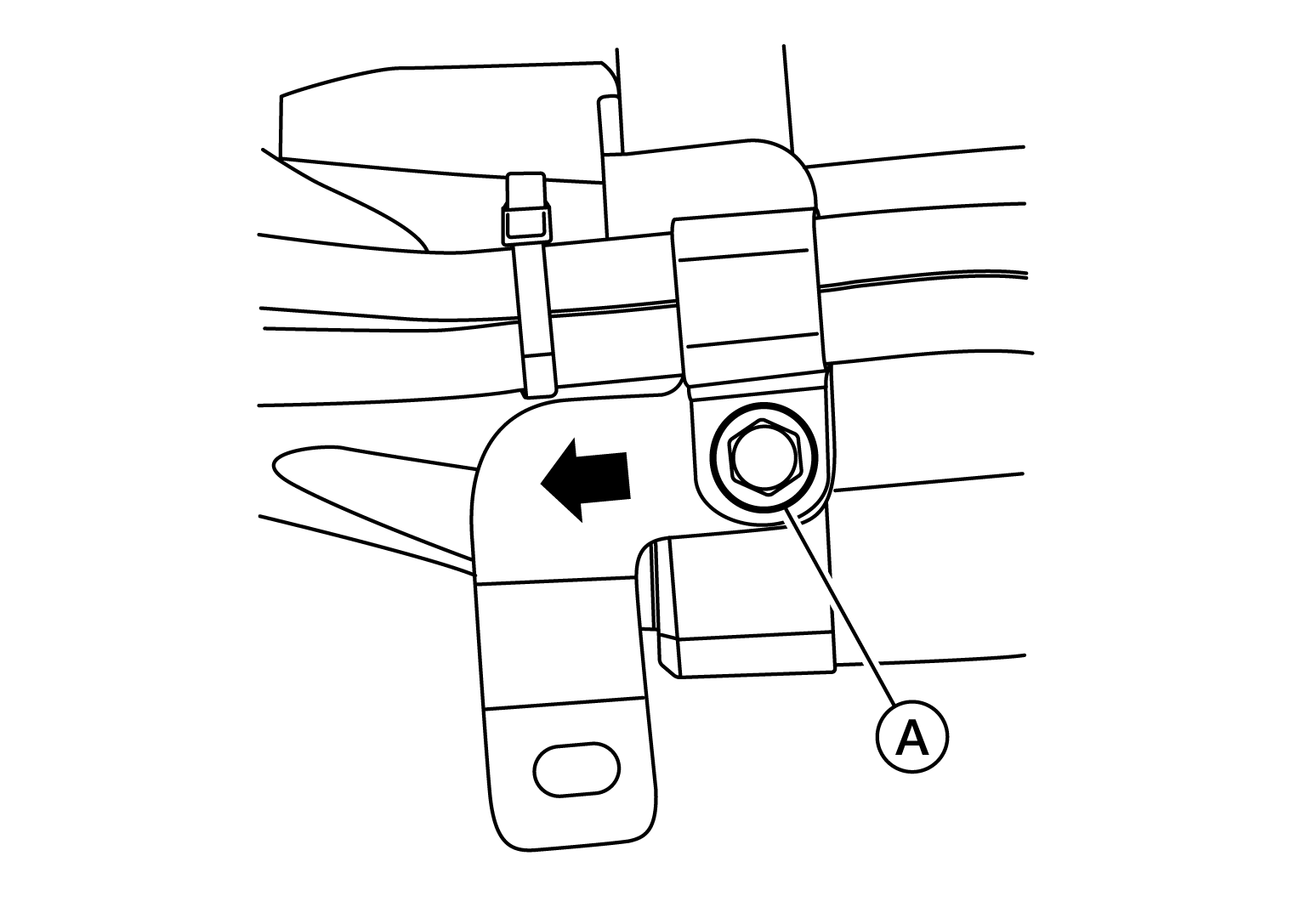

    GNSAWDIA1646Z-646Courtesy of NISSAN NORTH AMERICA, INC.

    Bolt (A)

    : 5.1 N.m (0.52 kg-m, 45 in-lb

  5. Install bolts (A) to specification.
    GNSALDIA0705Z-705Courtesy of NISSAN NORTH AMERICA, INC.

    Bolt (A)

    : 49 N.m (5.0 kg-m, 36 ft-lb

  6. Installation of the remaining components is in the reverse order of removal.
    CAUTION: Do not reuse copper washers.
    • Refer to the following when installing A/T fluid cooler hoses.

      Hose name

      Hose end

      Paint mark

      Position of hose clamp *

      A/T fluid cooler hose A

      Radiator assembly side

      Facing backward

      C

      A/T fluid cooler tube side

      Facing downward

      B

      A/T fluid cooler hose B

      Radiator assembly side

      Facing downward

      C

      A/T fluid cooler tube side

      Facing downward

      B

      A/T fluid cooler hose C

      A/T fluid cooler tube side

      Facing upward

      F

      A/T fluid cooler side

      Facing frontward

      A

      A/T fluid cooler hose D

      A/T fluid cooler tube side

      Facing upward

      A

      A/T fluid cooler side

      Facing frontward

      B

      *: Refer to the illustrations for the specific position of each hose clamp tab.

      • The illustrations indicate the view from the hose ends.

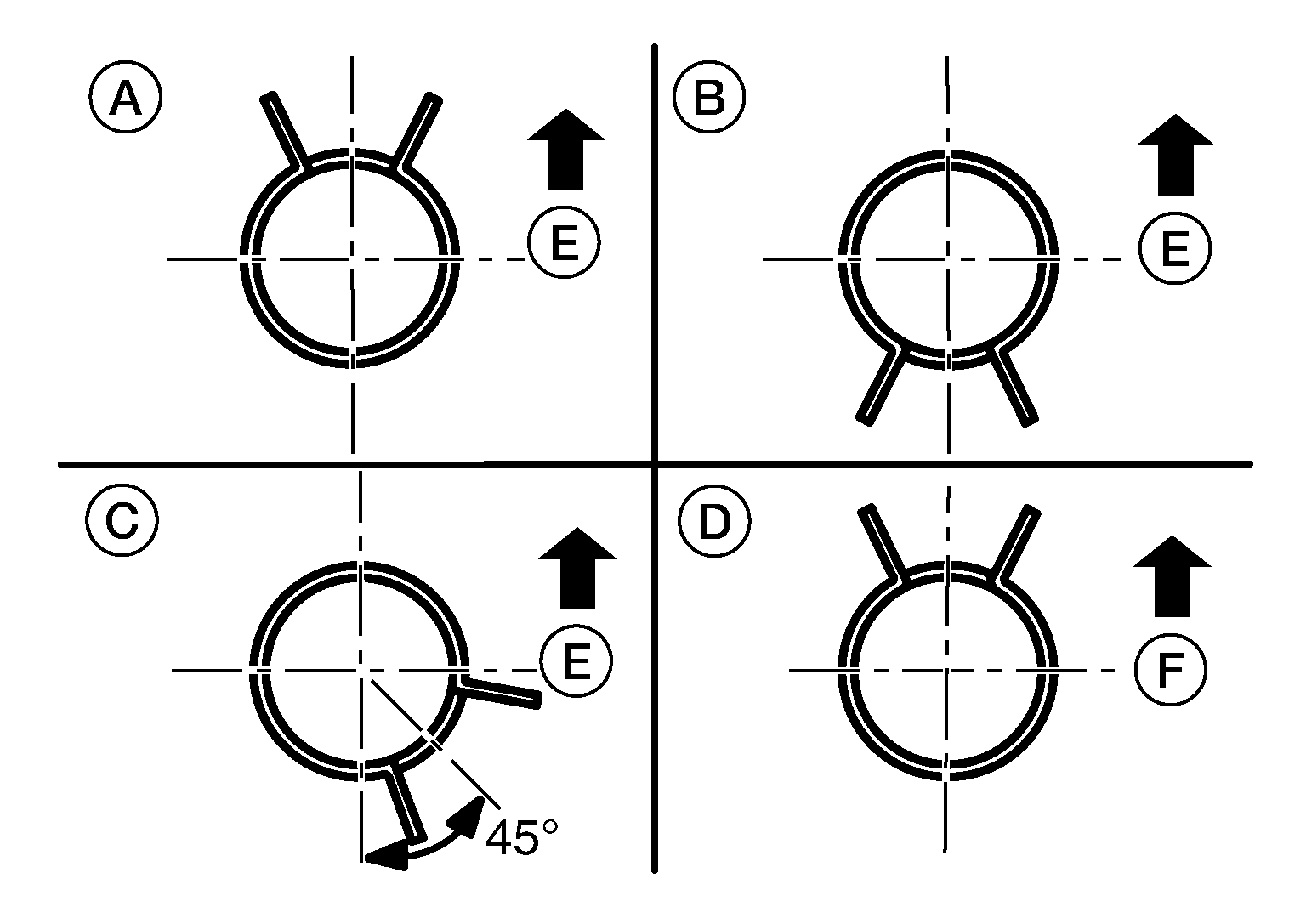

        GNSAWDIA1422Z-422Courtesy of NISSAN NORTH AMERICA, INC.

        SYMBOL D

        : Vehicle front

        SYMBOL E

        : Vehicle upper

      • When installing hose clamps, center line of each hose clamp tab should be positioned as shown in the figure.
      • Insert A/T fluid cooler hoses according to dimension "L" described below.

        A/T fluid cooler hose (1)

        Insertion side tube (2)

        Tube type

        Dimension "L"

        A/T fluid cooler hose A

        A/T fluid cooler tube A

        A

        End reaches the radius curve end.

        A/T fluid cooler tube C

        B

        30 mm (1.18 in) [End reaches the 2-stage bulge (D).]

        A/T fluid cooler hose B

        A/T fluid cooler tube B

        B

        A/T fluid cooler tube D

        B

        A/T fluid cooler hose C

        A/T fluid cooler tube

        B

        A/T fluid cooler

        B

        A/T fluid cooler hose D

        A/T fluid cooler tube

        B

        A/T fluid cooler

        B

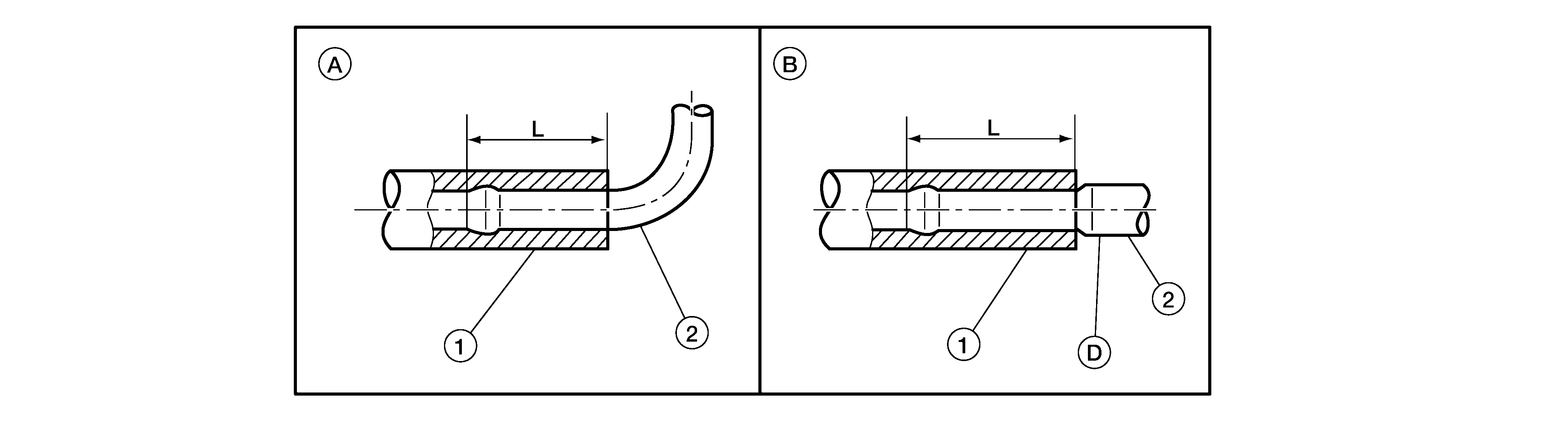

        GNSAWDIA1333Z-333Courtesy of NISSAN NORTH AMERICA, INC.
      • Set hose clamps (1) at both ends of A/T fluid cooler hoses (2) with dimension "A" from the hose edge.
        G05370092Courtesy of NISSAN NORTH AMERICA, INC.

        Dimension "A"

        : 5 - 9 mm (0.20 - 0.35 in)

      • Hose clamp should not interfere with the bulge of fluid cooler tube.
