Removal and Installation (A/T Fluid Cooler): Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front under cover. Refer to Removal and Installation .
  2. Remove front bumper. Refer to Removal and Installation - Bumper Fascia Upper .

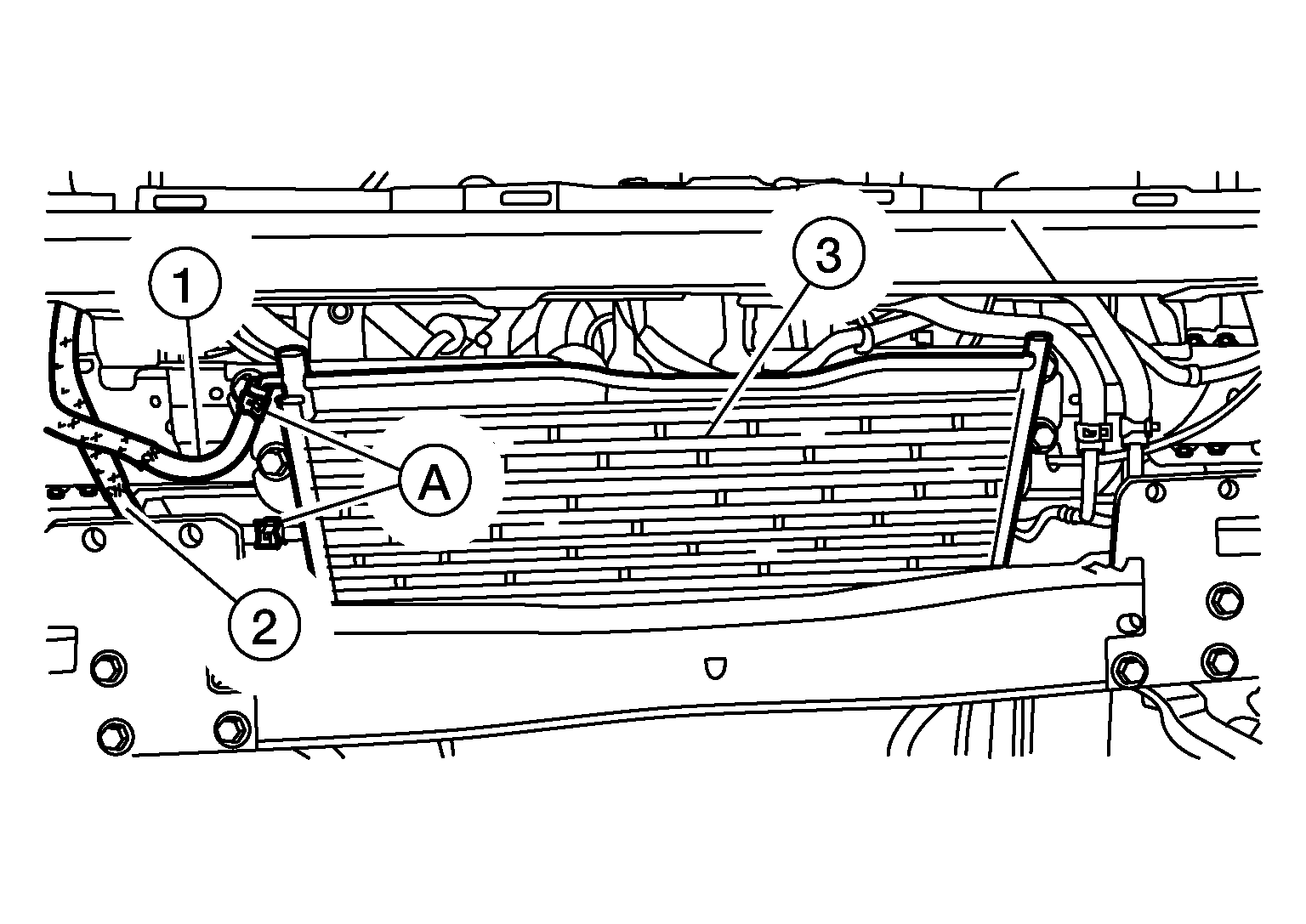

  3. Release hose clamps (A) and remove fluid cooler hose C (1) and fluid cooler hose D (2) from A/T fluid cooler (3).
    GNSALDIA0710Z-710Courtesy of NISSAN NORTH AMERICA, INC.

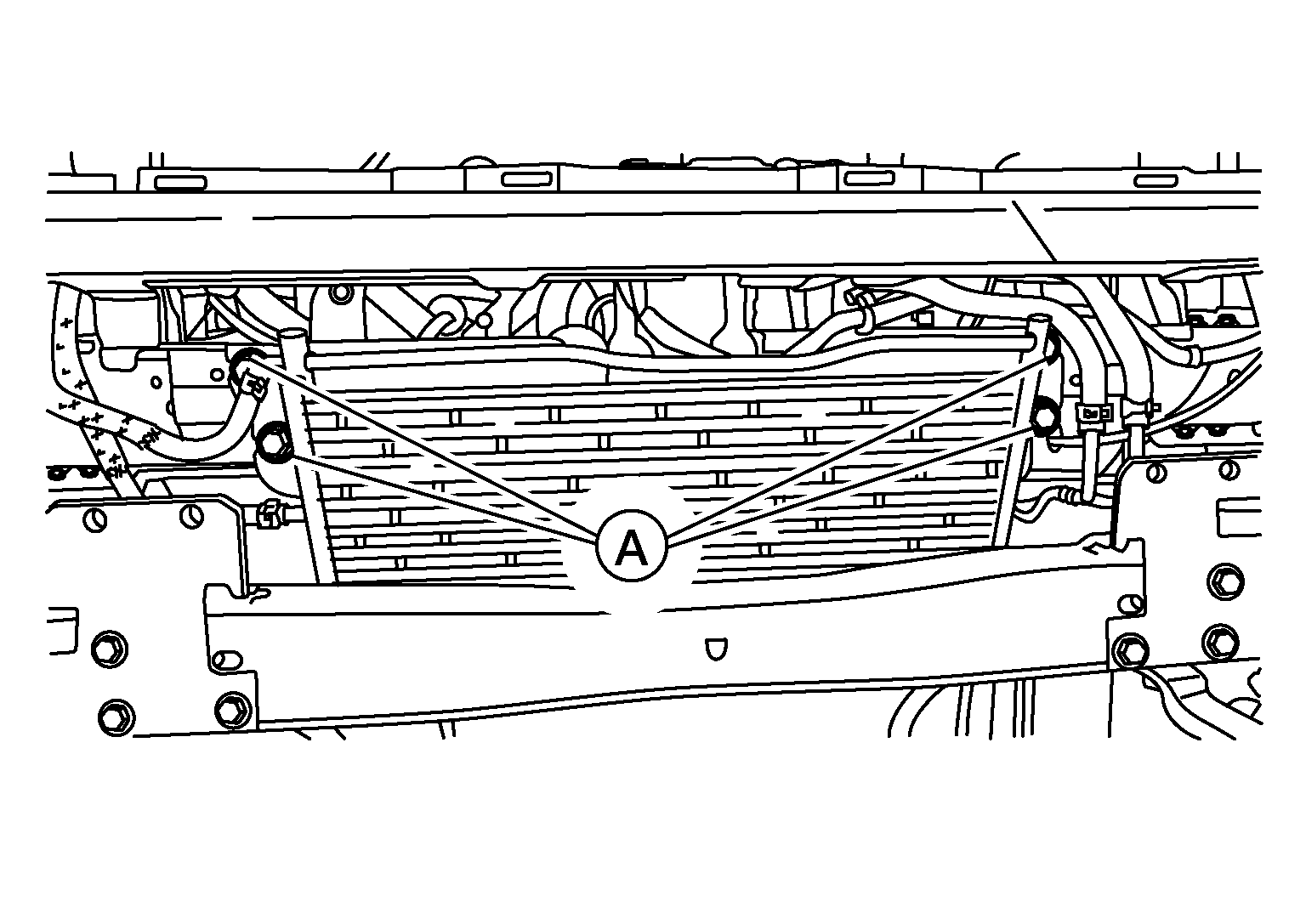

  4. Remove bolts (A) and remove A/T fluid cooler.
    GNSDB115574Courtesy of NISSAN NORTH AMERICA, INC.
