Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heating and cooling unit and steering member from the vehicle as an assembly. Refer to Removal and Installation for steering member and Removal and Installation or Removal and Installation for heating and cooling unit.
  2. Remove lock plate (1) and pull control cable (2) in the direction shown (SYMBOL ) to disconnect control cable from A/T shift selector.
    GNSDB118062Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release clip fastening control cable to accelerator pedal.
    GNSALDIA0824Z-824Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip

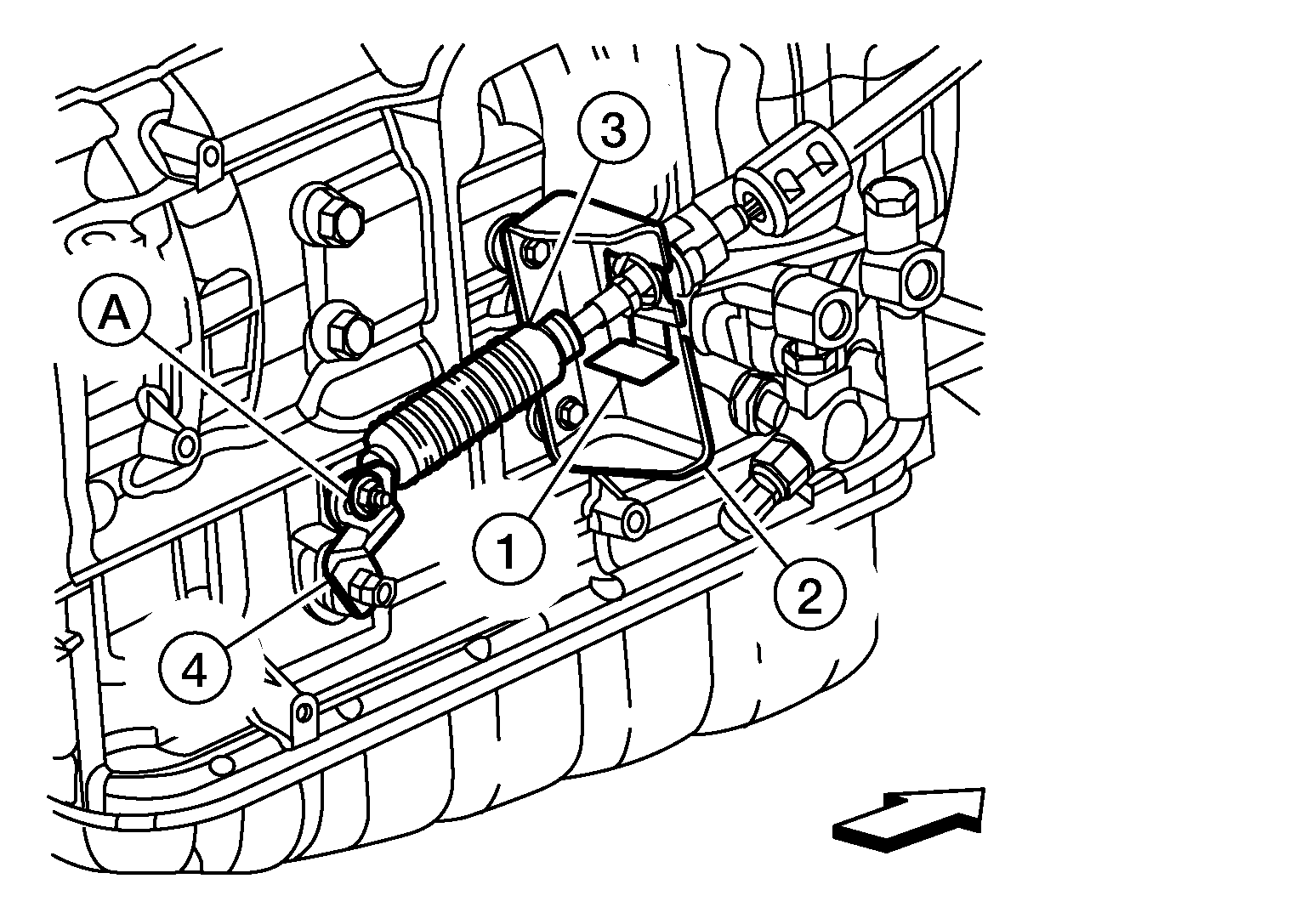

  4. Remove nut (A) and remove control cable (3) from manual lever (4).
    GNSDB122395Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove lock plate (1) and disconnect control cable (3) from bracket (2).

    SYMBOL

    : Front

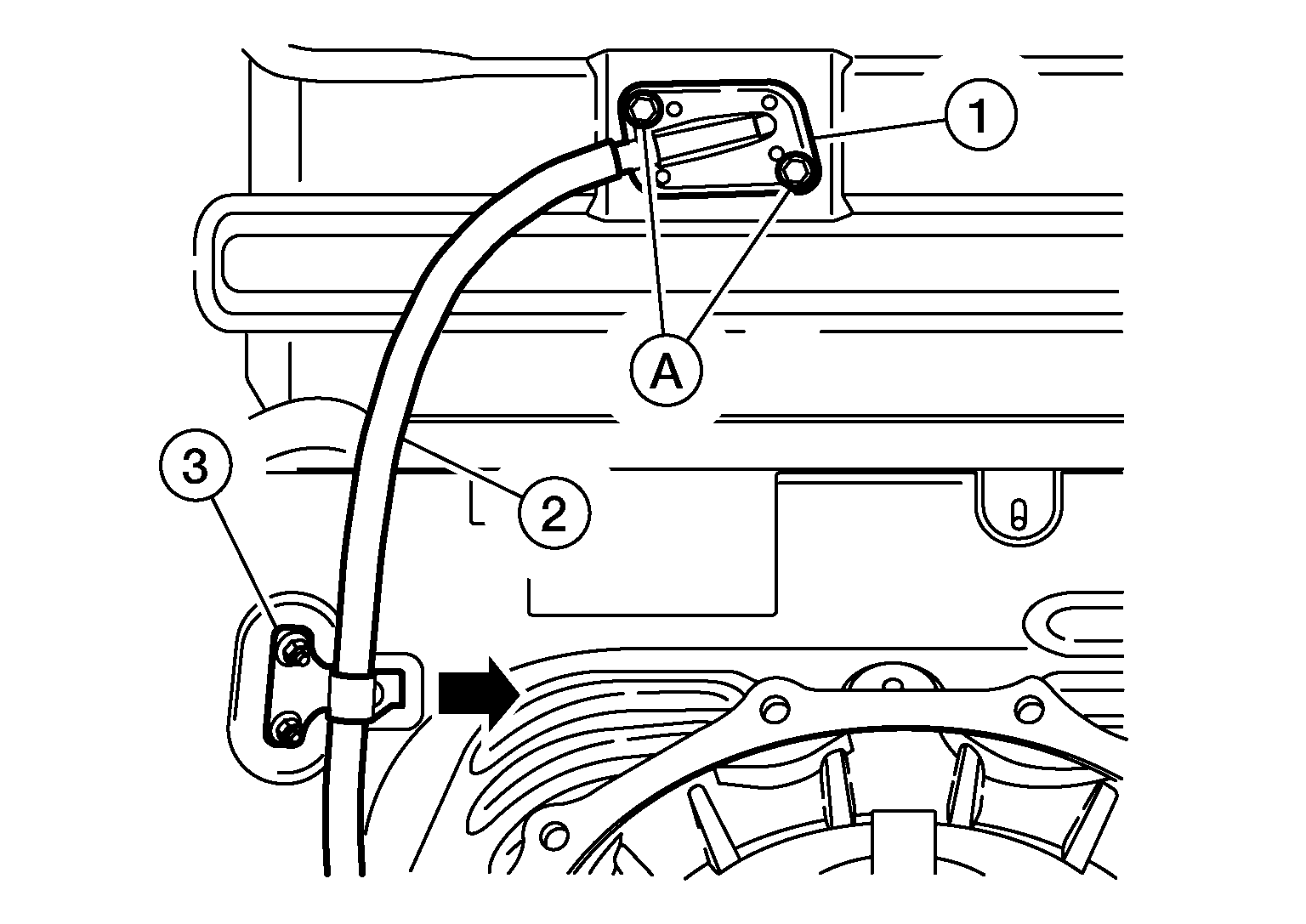

  6. Remove bolts (A) from control cable grommet (1).
    GNSDB115665Courtesy of NISSAN NORTH AMERICA, INC.
  7. Disconnect control cable (2) from bracket (3) in the direction shown (SYMBOL ).
  8. Remove control cable from vehicle.
