Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column covers. Refer to Removal and Installation .
  2. Remove lock plate (1) and pull control cable (2) in the direction shown (SYMBOL ) to disconnect A/T shift selector.
    GNSDB118062Courtesy of NISSAN NORTH AMERICA, INC.

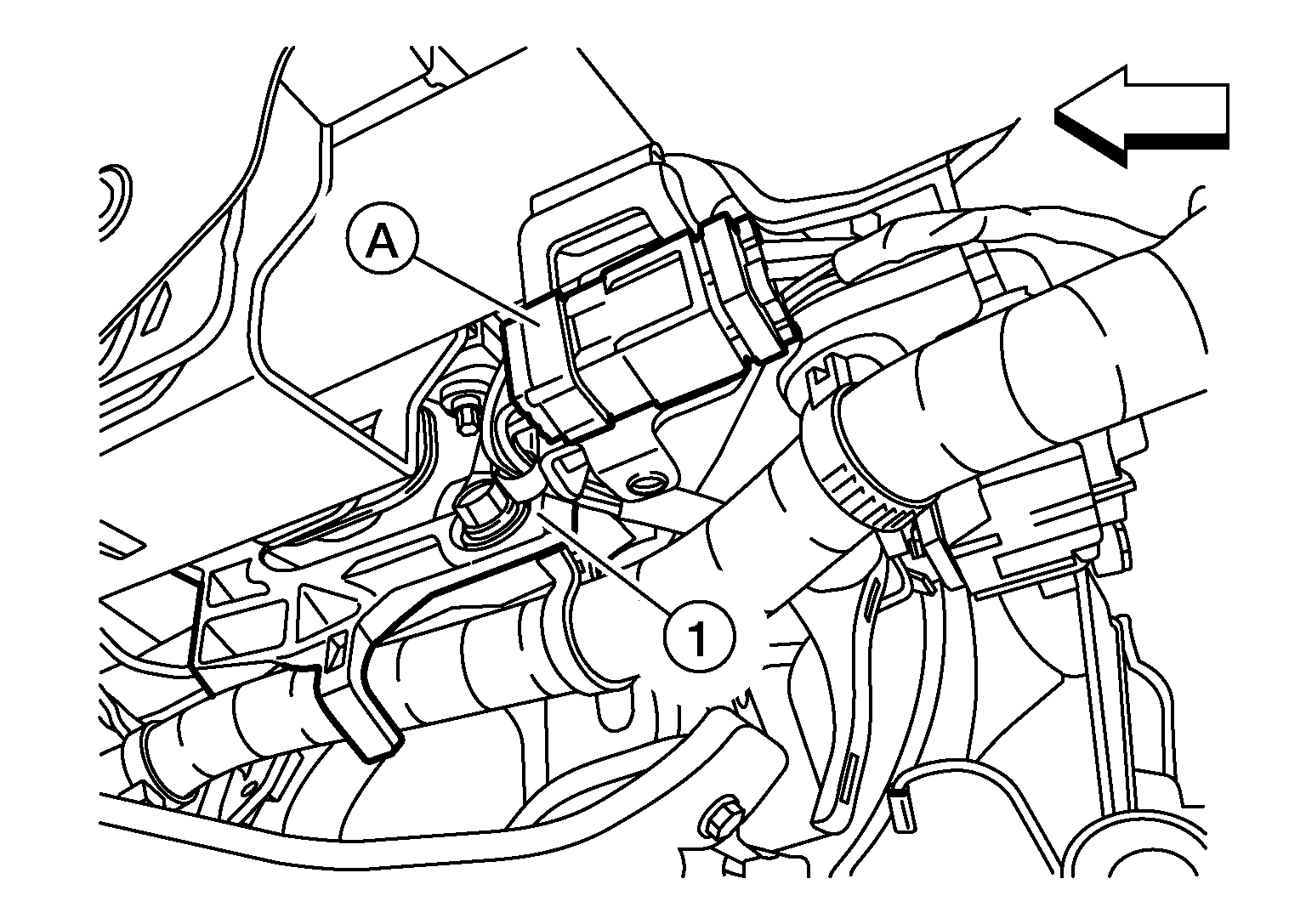

  3. Disconnect harness connector (A) from A/T shift selector (1).
    GNSALDIA0712Z-712Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

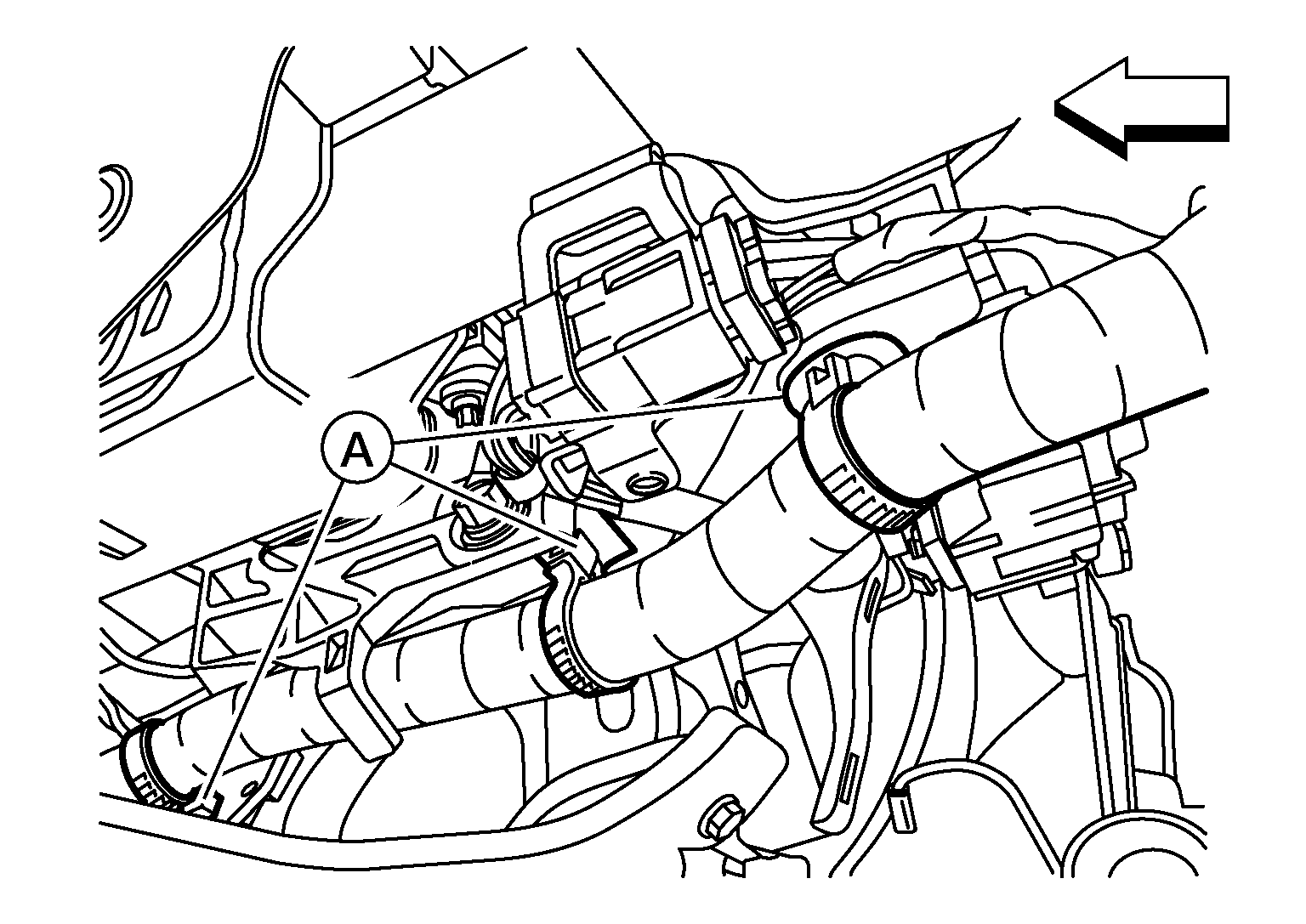

  4. Release the harness clips (A) using a suitable tool.
    GNSALDIA0713Z-713Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

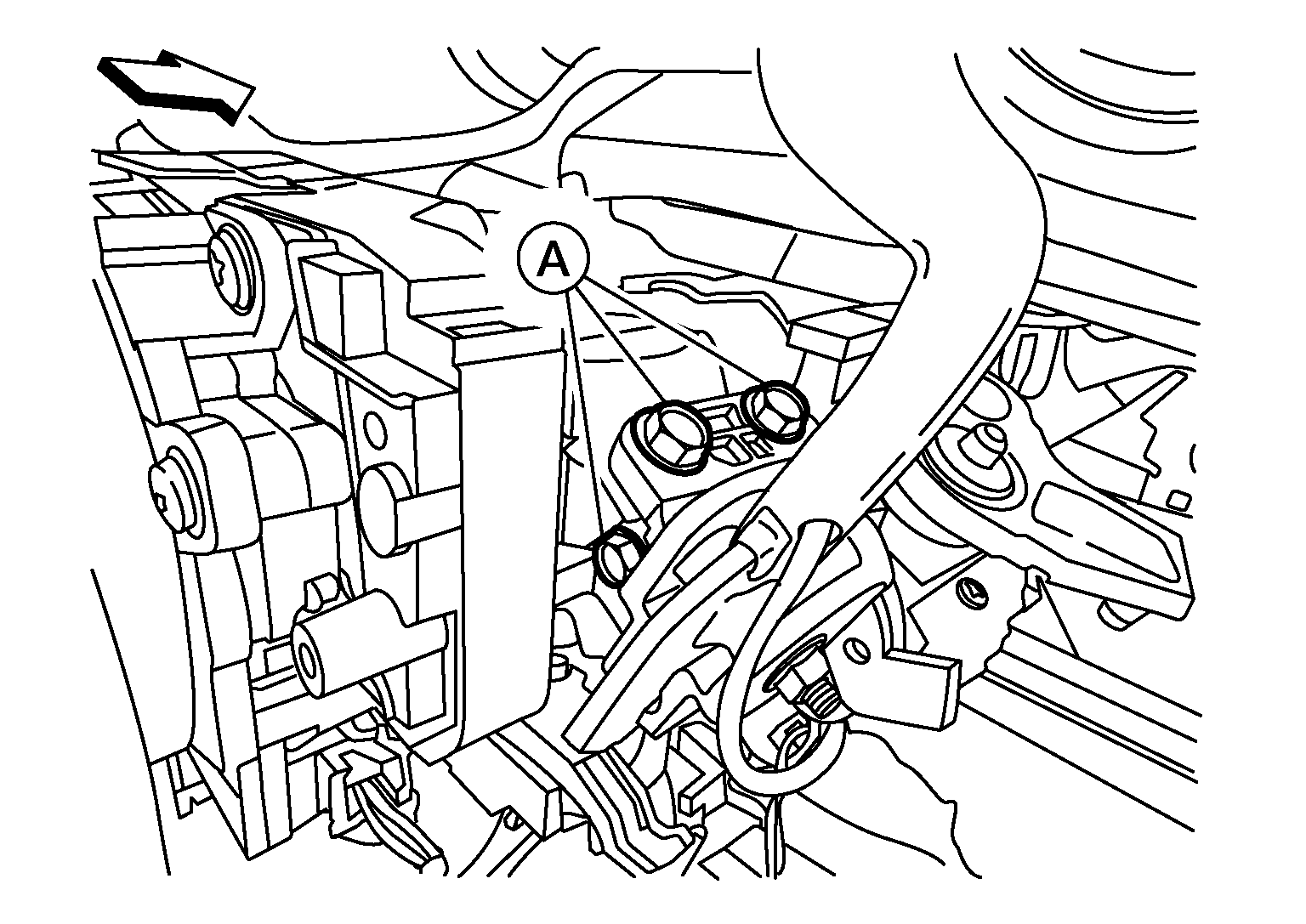

  5. Remove bolts (A) from A/T shift selector.
    GNSALDIA0714Z-714Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  6. Remove A/T shift selector from steering column.
