Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF.

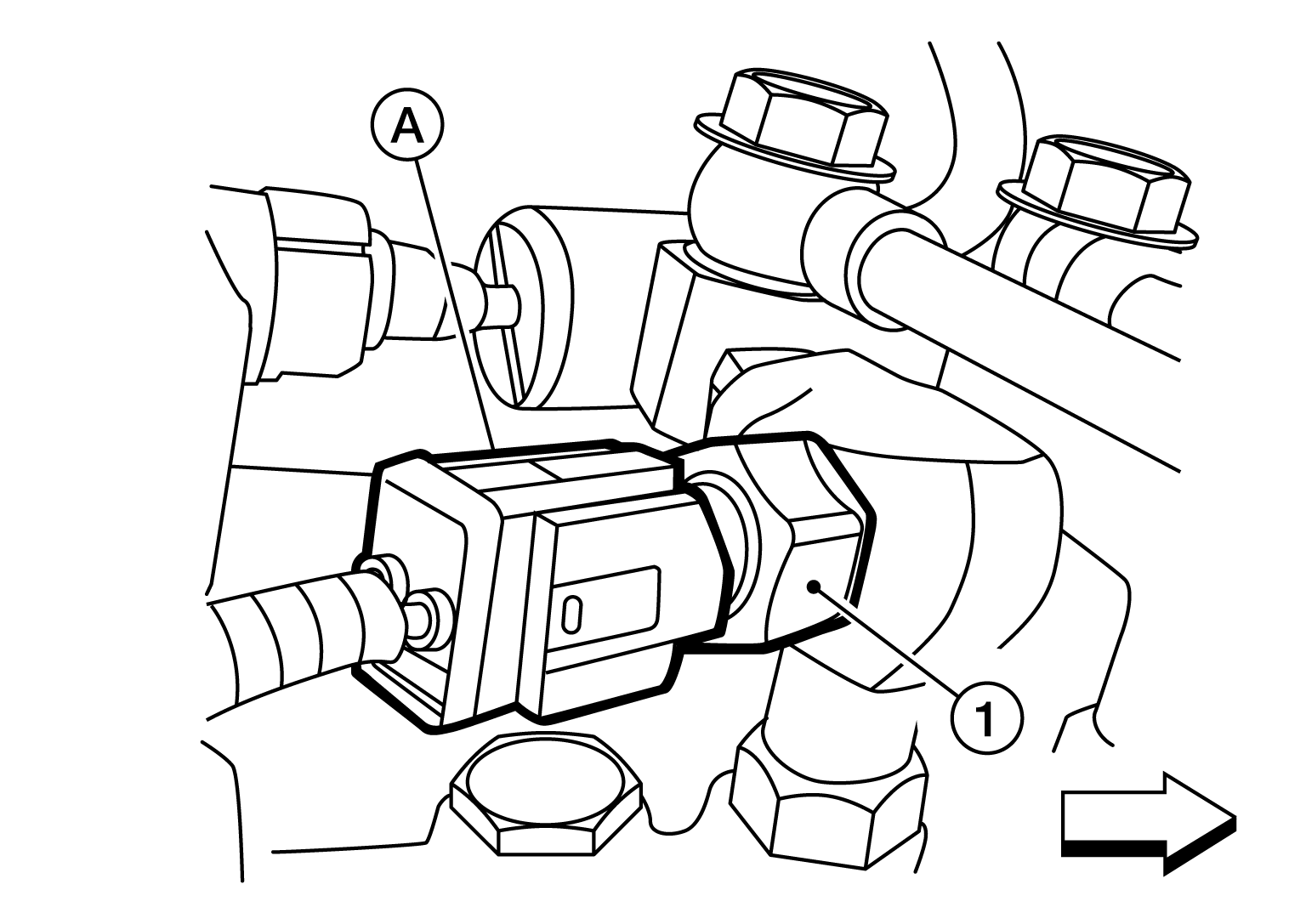

- Disconnect the harness connector (A) from the A/T fluid temperature sensor (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Front
|

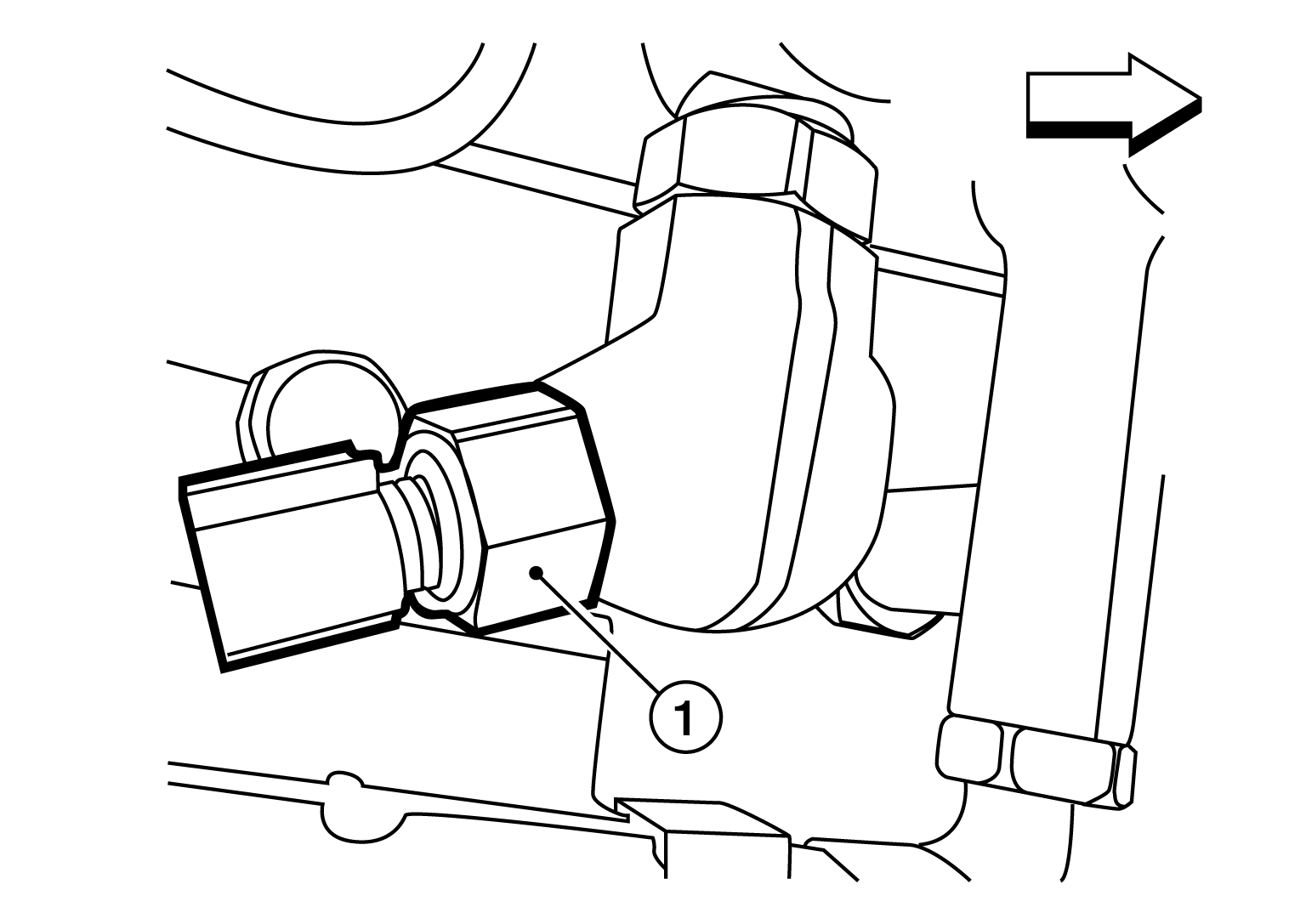

- Remove the A/T fluid temperature sensor (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Front
|
