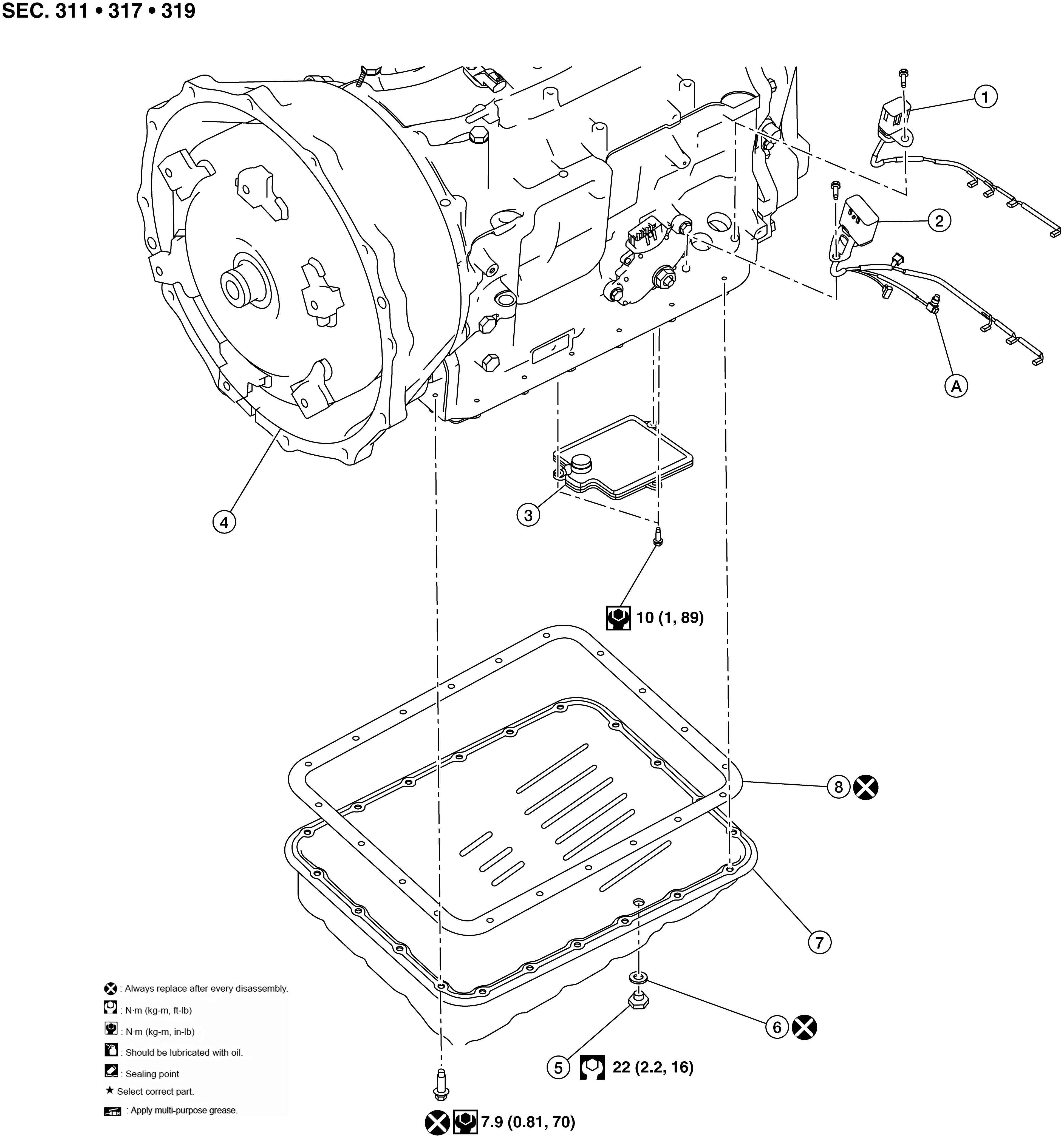

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Terminal assembly 2
|
2.
|
Terminal assembly 1
|
3.
|
Oil strainer
|
|
4.
|
A/T assembly
|
5.
|
Drain plug
|
6.
|
Drain plug gasket
|
|
7.
|
Oil pan
|
8.
|
Oil pan gasket
|
A.
|
Temperature sensor 2
|
|
|
Front
|
NOTE:
A/T fluid temperature sensor 2 is part of A/T assembly connector (12-pin), and they must be replaced as an assembly.
