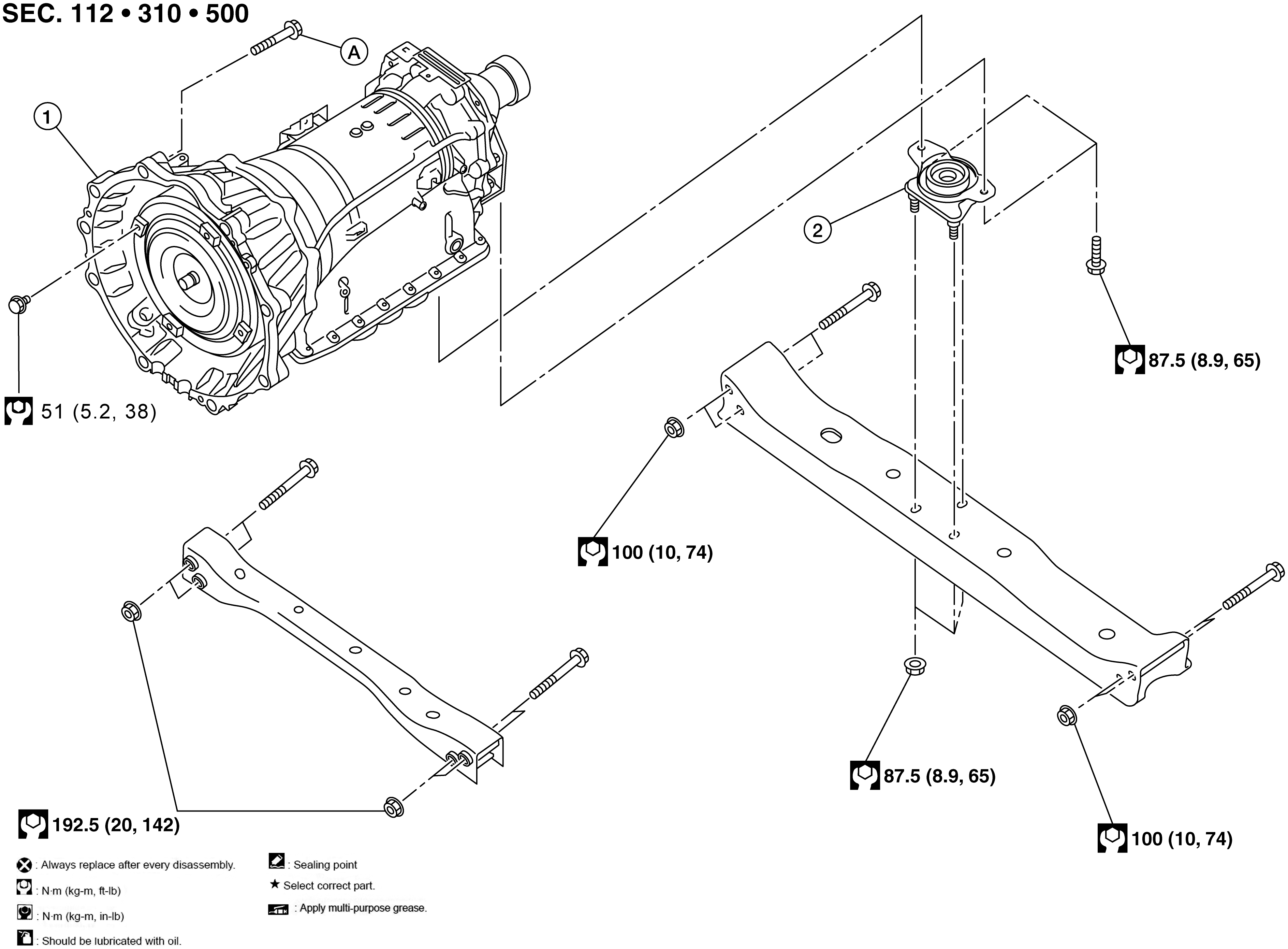

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
A/T assembly |
2. |
Engine mounting insulator (rear) |
||
|
A. |
Refer to INSTALLATION . |
||||
