Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery or batteries. Refer to Battery Disconnect .
  2. Drain ATF through drain plug. Refer to Changing .
  3. Remove bolts (A) then remove rear diagonal cross member [(1) (LH/RH)] (Non-XD Models).
    GNSDB124032Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove bolts and nuts (A) from front cross member (1), then remove front cross member.
    GNSDB119423Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove transfer case. Refer to Removal and Installation .
  6. Support A/T assembly (1) with a transmission jack (A).
    GNSDB112760Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
  7. Remove rear engine mount cross member (1) and remove engine mount insulator (rear) (2).
    GNSALDIA0835Z-835Courtesy of NISSAN NORTH AMERICA, INC.

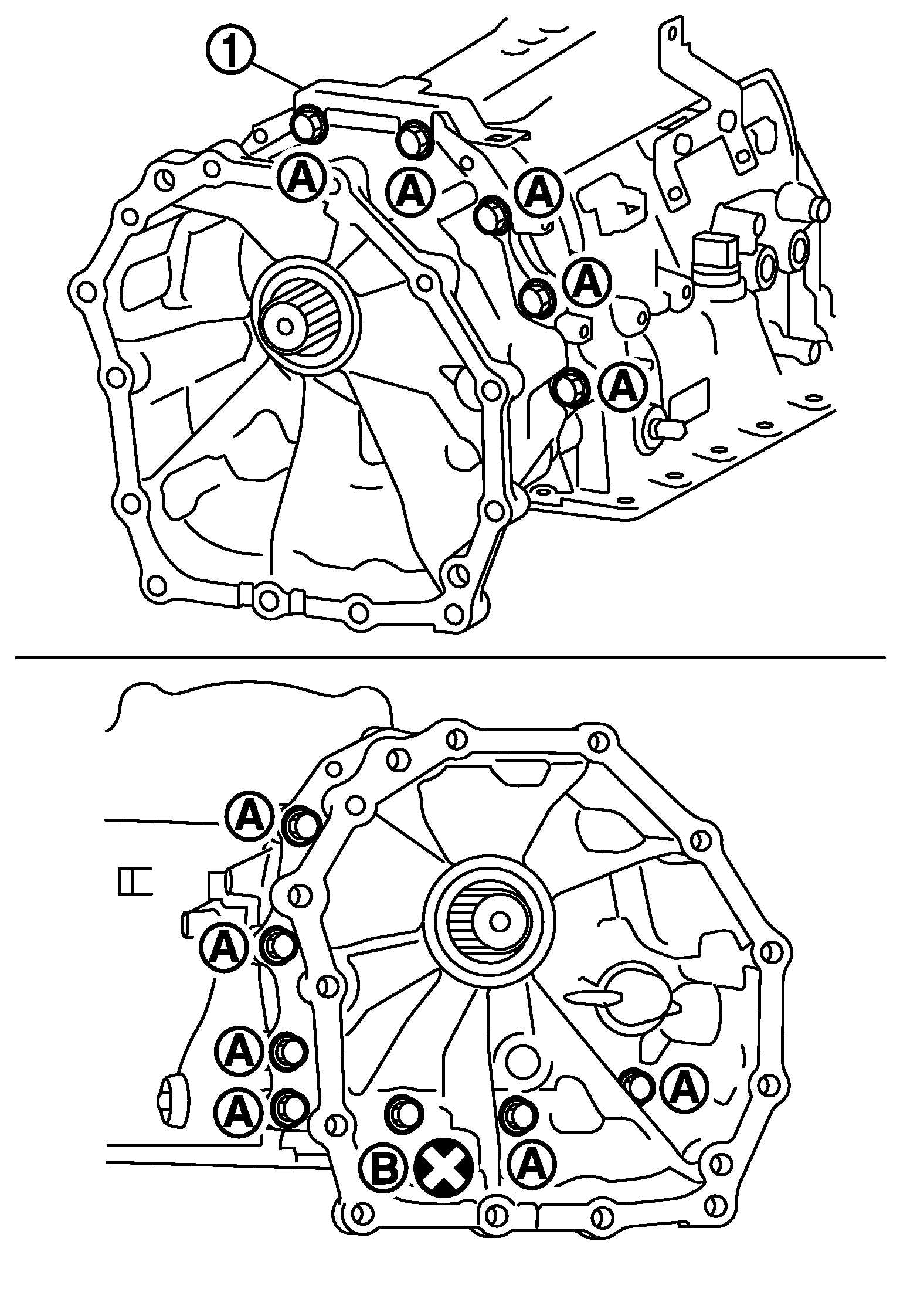

  8. Remove tightening bolts (A) and (B) for adapter case and transmission case.
    GNSJPDIA1155Z-155Courtesy of NISSAN NORTH AMERICA, INC.

    (1)

    : Bracket

    (A)

    : Bolt

    (B)

    : Self-sealing bolt

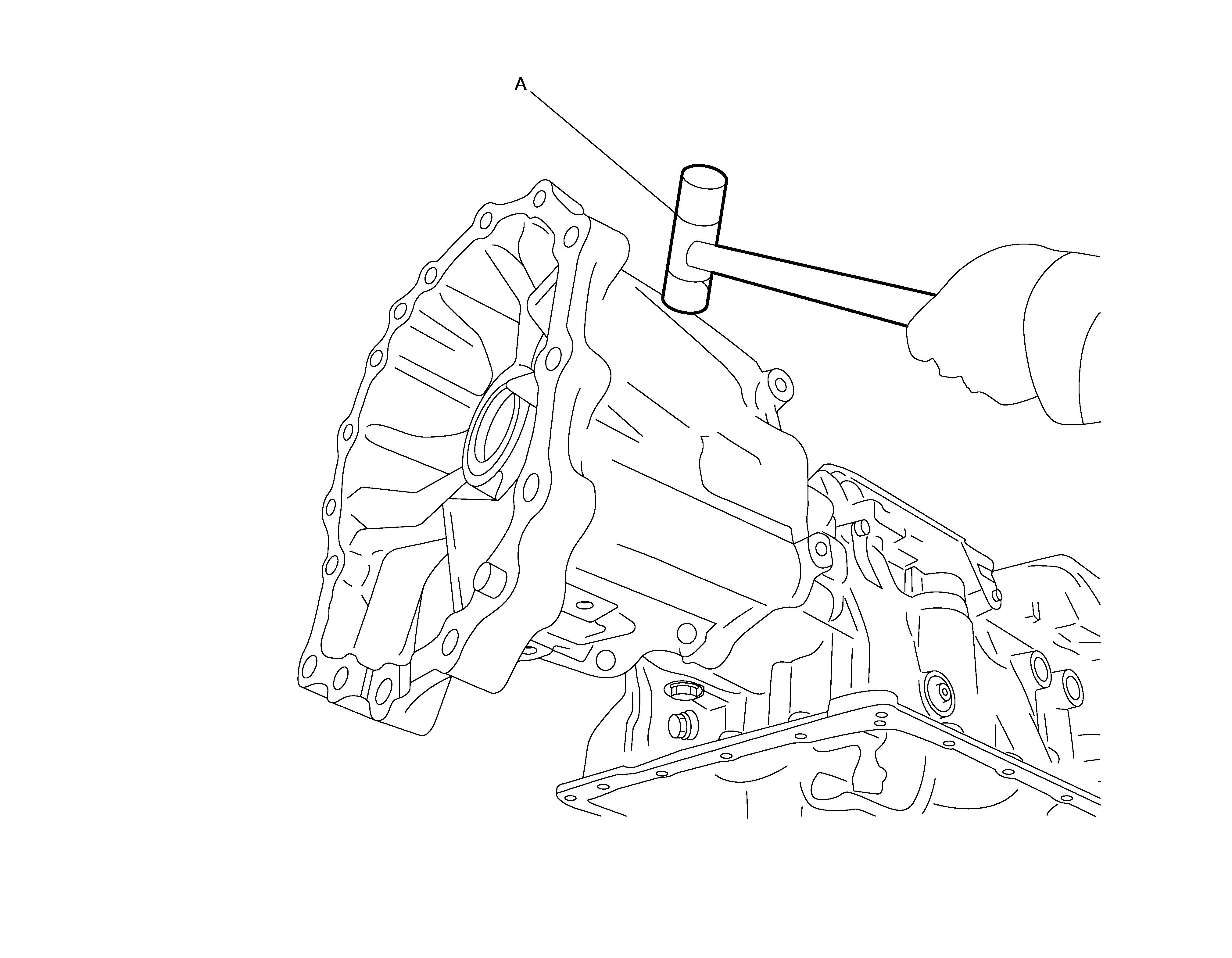

  9. Tap adapter case using suitable tool (A).
    GNSAWDIA1468Z-468Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage rear extension case.
  10. Remove adapter case (with needle bearing) from transmission case.
  11. Remove bearing race (1) from output shaft (2).
    GNSJPDIA0057Z-057Courtesy of NISSAN NORTH AMERICA, INC.
  12. Remove the output shaft (1) from A/T assembly by rotating left/right.
    GNSJPDIA0028Z-028Courtesy of NISSAN NORTH AMERICA, INC.
  13. Remove parking gear (1) from output shaft (2).
    GNSJPDIA0029Z-029Courtesy of NISSAN NORTH AMERICA, INC.
  14. Remove seal rings (1) from output shaft.
    GNSJPDIA0030Z-030Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse seal rings.
  15. Remove needle bearing (1) from adapter case.
    G04120872Courtesy of NISSAN NORTH AMERICA, INC.
  16. Remove parking actuator support (1) from adapter case.
    GNSJPDIA0031Z-031Courtesy of NISSAN NORTH AMERICA, INC.
  17. Remove parking pawl (with return spring) (1) and pawl shaft (2) from adapter case.
    GNSJPDIA0032Z-032Courtesy of NISSAN NORTH AMERICA, INC.
  18. Remove return spring (1) from parking pawl (2).
    G04075844Courtesy of NISSAN NORTH AMERICA, INC.
