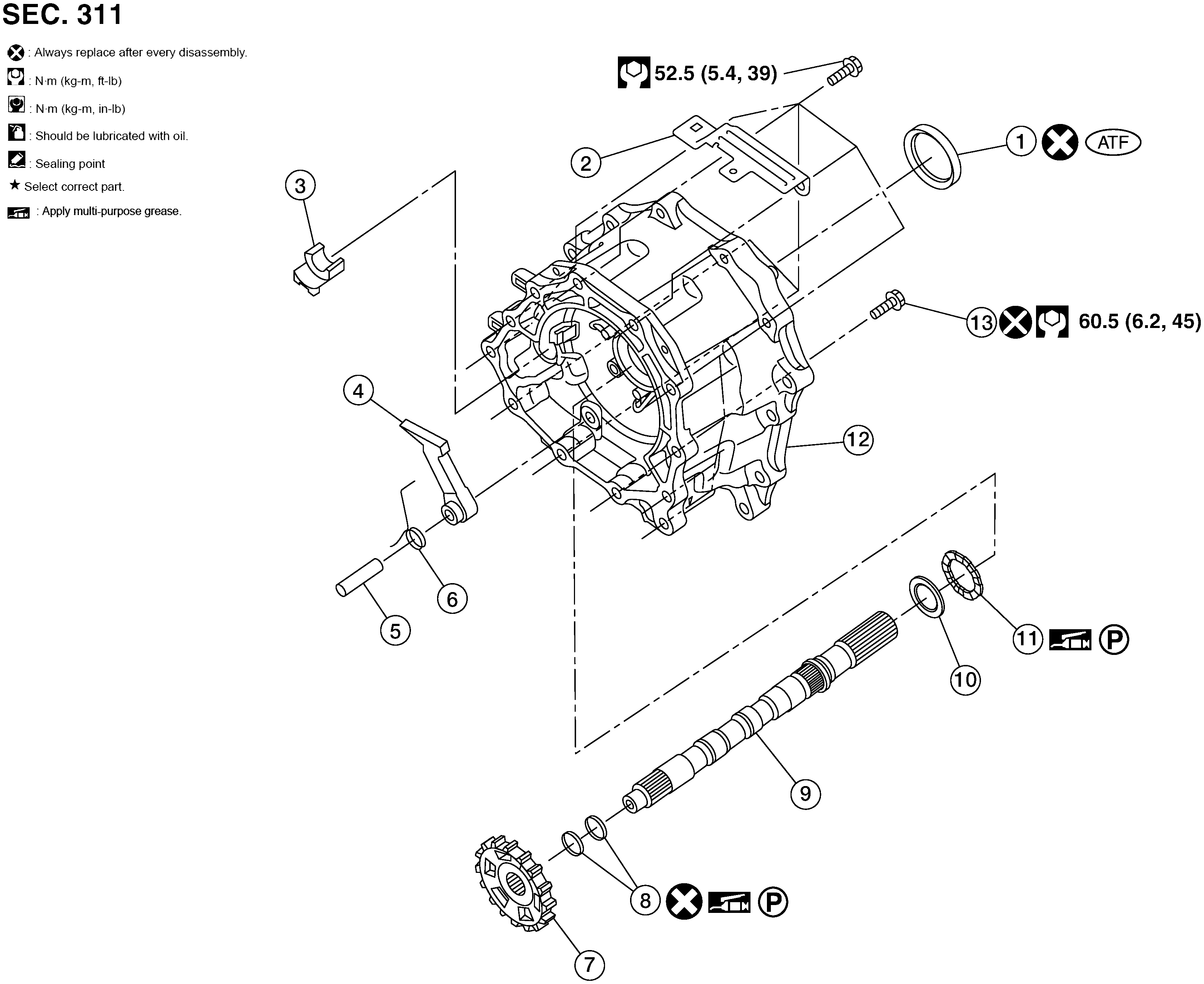

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Rear oil seal
|
2.
|
Bracket
|
3.
|
Parking actuator support
|
|
4.
|
Parking pawl
|
5.
|
Pawl shaft
|
6.
|
Return spring
|
|
7.
|
Parking gear
|
8.
|
Seal ring
|
9.
|
Output shaft
|
|
10.
|
Bearing race
|
11.
|
Needle bearing
|
12.
|
Adapter case
|
|
13.
|
Self-sealing bolt
|
