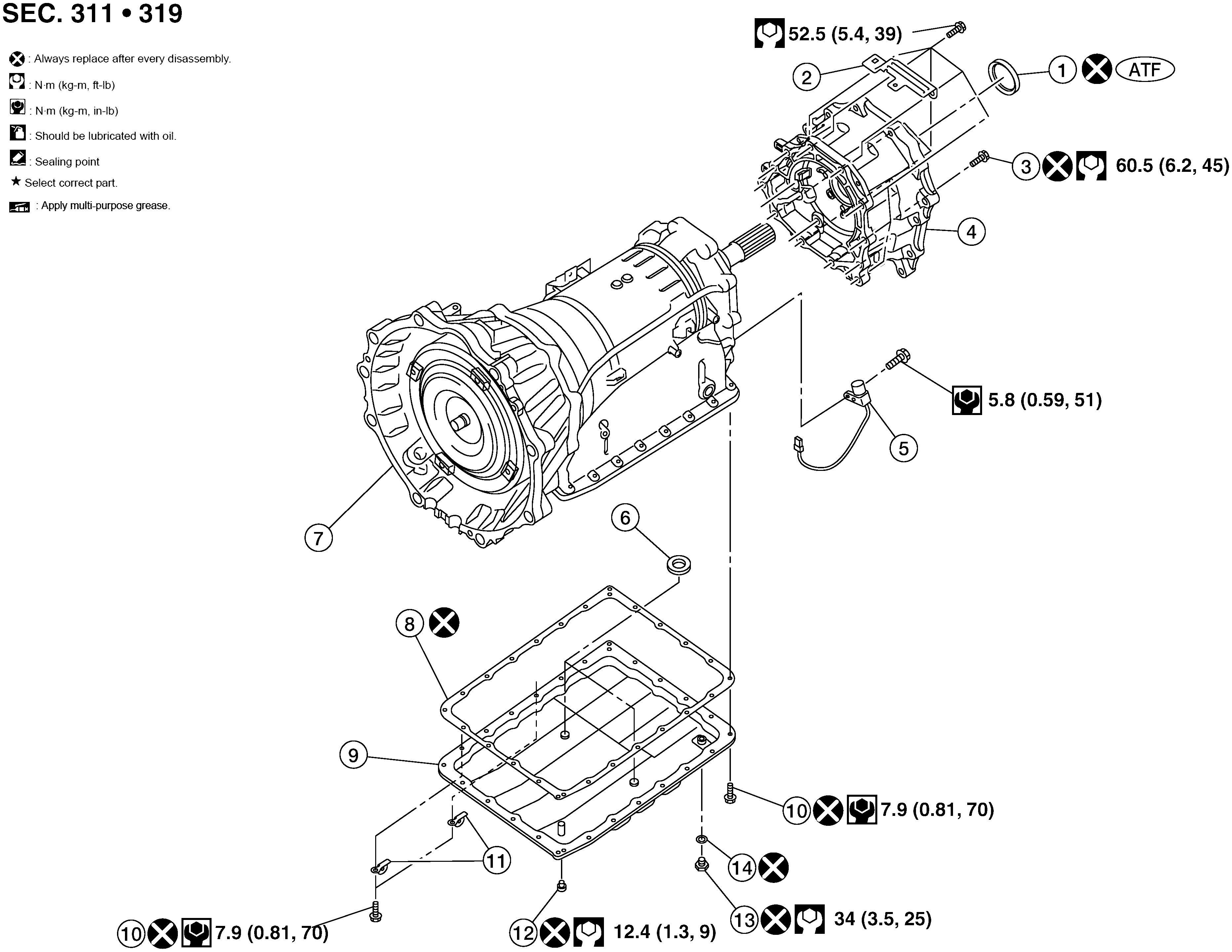

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear oil seal
|
2.
|
Bracket
|
3.
|
Self-sealing bolt
|
|
4.
|
Adapter case
|
5.
|
Output speed sensor
|
6.
|
Magnet
|
|
7.
|
A/T assembly
|
8.
|
Oil pan gasket
|
9.
|
Oil pan
|
|
10.
|
Oil pan mounting bolt
|
11.
|
Clip
|
12.
|
Overflow plug
|
|
13.
|
Drain plug
|
14.
|
Drain plug gasket
|
