Removal and Installation - XD Models: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain A/T fluid through drain plug. Refer to Changing .
  2. Remove front under cover. Refer to Removal and Installation .
  3. Remove front grille. Refer to Removal and Installation .
  4. Remove horn (low). Refer to Removal and Installation .

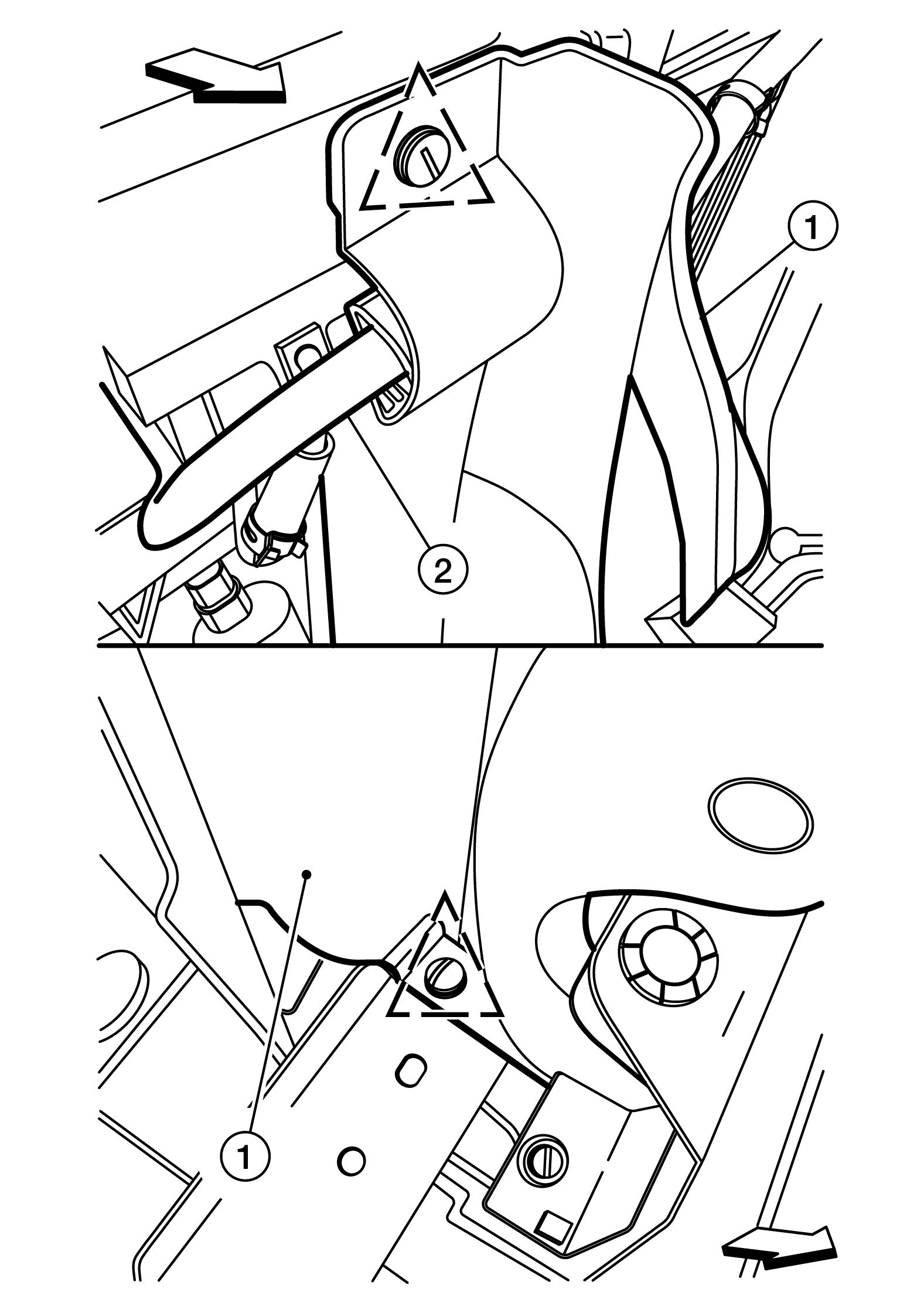

  5. Remove A/T fluid cooler hose D from front air guide [RH (1)].
    GNSAWDIA1478Z-478Courtesy of NISSAN NORTH AMERICA, INC.
  6. Release clips securing front air guide [RH (1)] to radiator core support.

    (2)

    : Fluid cooler hose D

    SYMBOL

    : Clip

    SYMBOL

    : Front
  7. Remove A/T fluid cooler hose C and D from A/T fluid cooler.

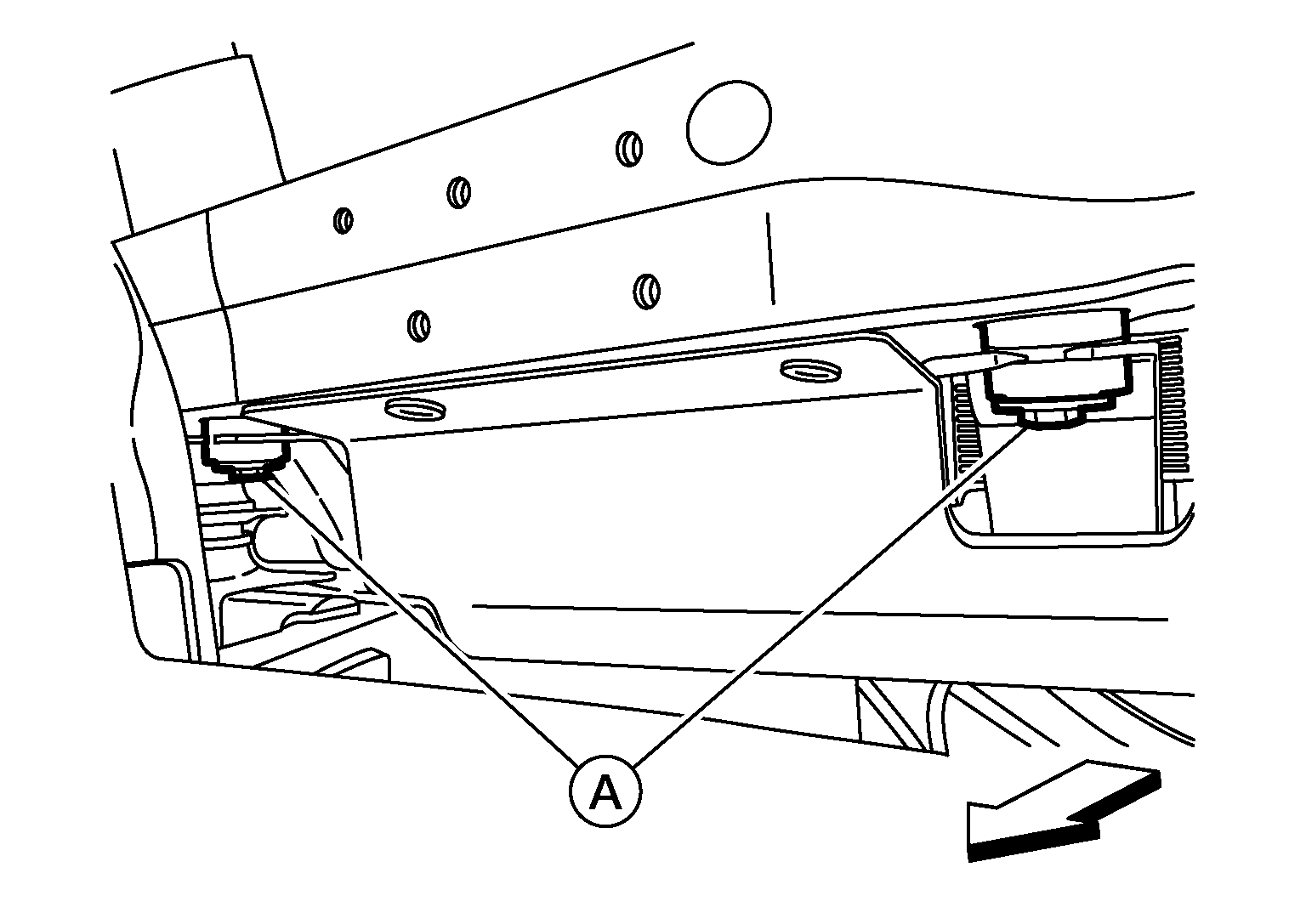

  8. Remove bolts (A) fastening bottom of A/T fluid cooler to lower radiator core support
    GNSDB120926Courtesy of NISSAN NORTH AMERICA, INC.

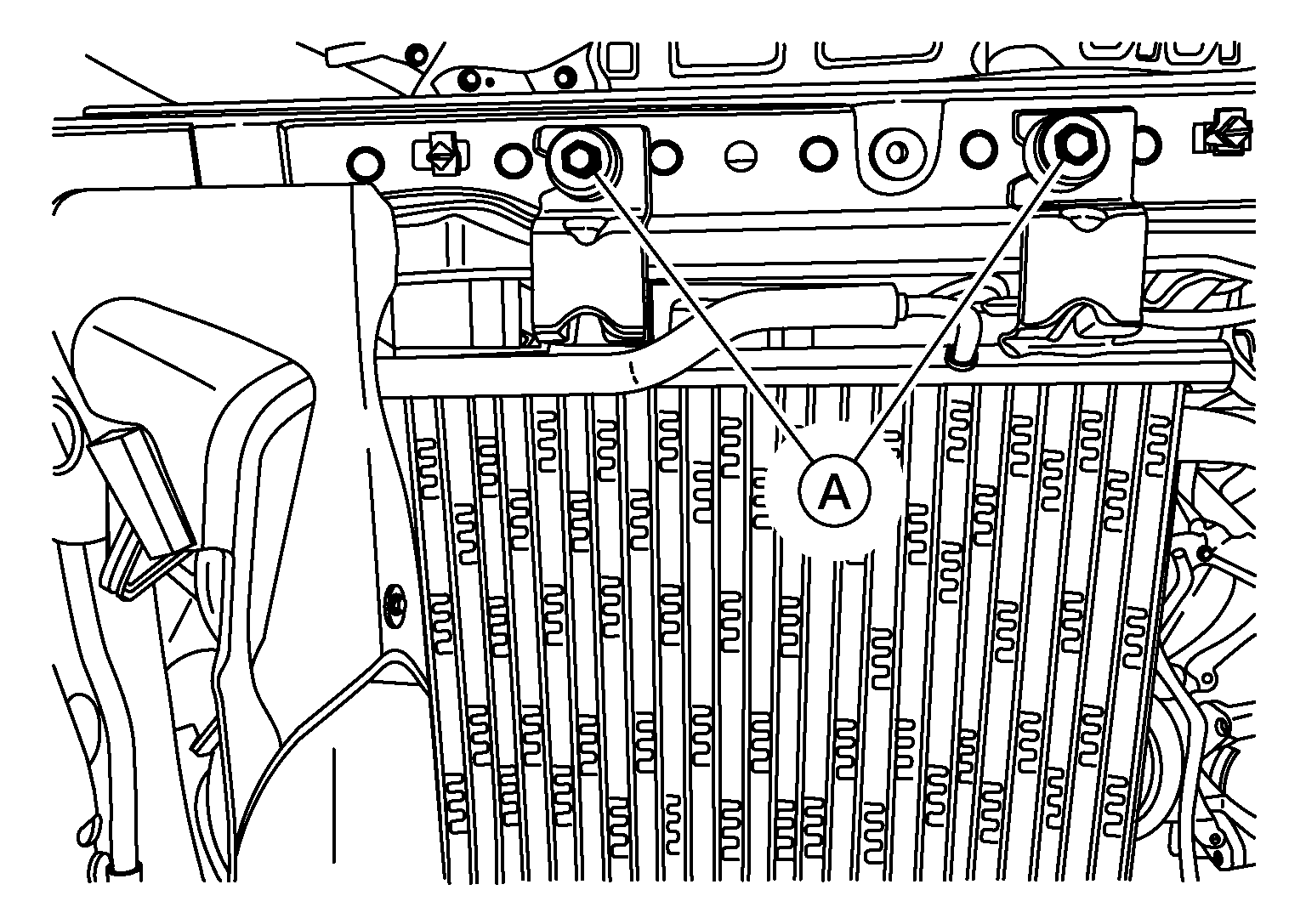

  9. Remove bolts (A) fastening Top of A/T fluid cooler to upper radiator core support
    GNSDB117908Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove A/T fluid cooler from vehicle with front air guide (RH).
    CAUTION: Be careful not to damage A/T fluid cooler core.
  11. Remove front air guide (RH) from A/T fluid cooler.

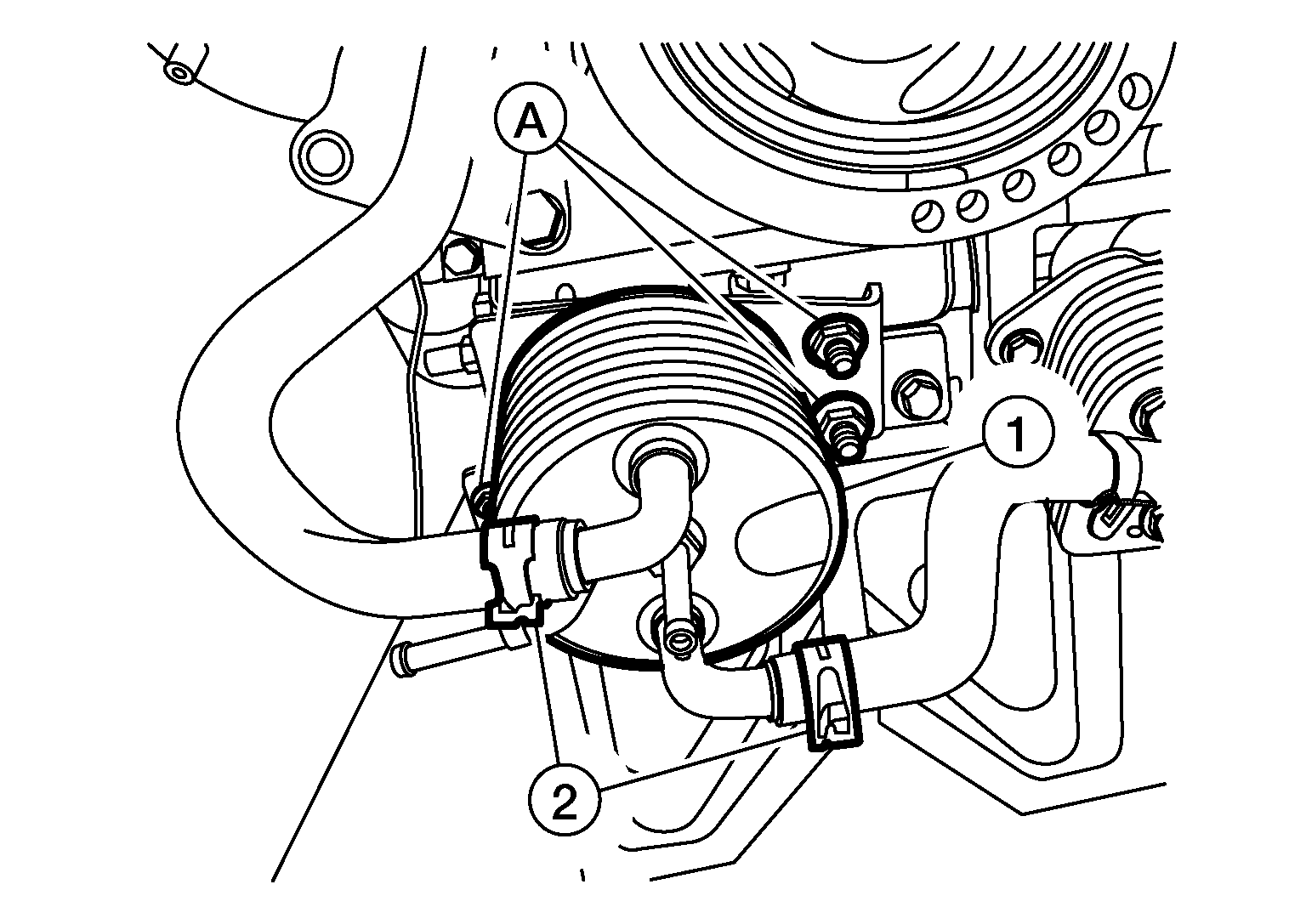

  12. Remove water hoses (2) from A/T fluid warmer (1).
    GNSDB120192Courtesy of NISSAN NORTH AMERICA, INC.
  13. Remove bolts (A) and remove A/T fluid warmer (1) from vehicle.
  14. Remove nut (A) and remove control cable (2) from manual lever (3)
    GNSDB115703Courtesy of NISSAN NORTH AMERICA, INC.
  15. Remove lock plate (4) and disconnect control cable (2) from bracket (1)
  16. Remove bracket (1).
  17. Remove A/T fluid cooler hoses and A/T fluid cooler tubes.
    CAUTION: Be careful not to bend A/T fluid cooler tubes.
    NOTE: Cap or plug openings to prevent fluid from spilling.
