A/T Cooler Installation
Installation in the reverse order of removal.
- Do not reuse gaskets.
- Be careful not to scratch tube surface when installing.
- Be careful not to bend ends of tubes that attach to transmission.
Refer to the following when installing hoses.
|
Hose name |
Hose end |
Paint mark |
Position of hose clamp hook |
|
A/T fluid coolant hose A |
To bypass value |
Align hose to valve tube |
C |
|
To A/T fluid warmer |
Align hose to warmer tube |
Align with hose paint marks |
|
|
A/T fluid coolant hose C |
To bypass value, upper tube |
Align hose to valve tube |
B |
|
To bypass value, lower tube |
Align hose to valve tube |
E |
|
|
A/T fluid cooler hose D, outside |
Align tube to hose |
B |
|
|
A/T fluid cooler hose D, inside |
Align tube to hose |
B |
|
|
A/T fluid coolant hose B |
To bypass value |
Align hose to valve tube |
F |
|
To A/T fluid warmer |
Align hose to warmer tube |
Align with hose paint marks |
|
|
A/T fluid coolant hose D |
A/T fluid cooler hose E, inside |
Align hose to tube |
B |
|
A/T fluid cooler hose F, outside |
Align hose to tube |
C |
|
|
A/T fluid cooler hose C, inside |
Align hose to tube |
D |
|
|
A/T fluid cooler hose C, outside |
Align hose to tube |
D |

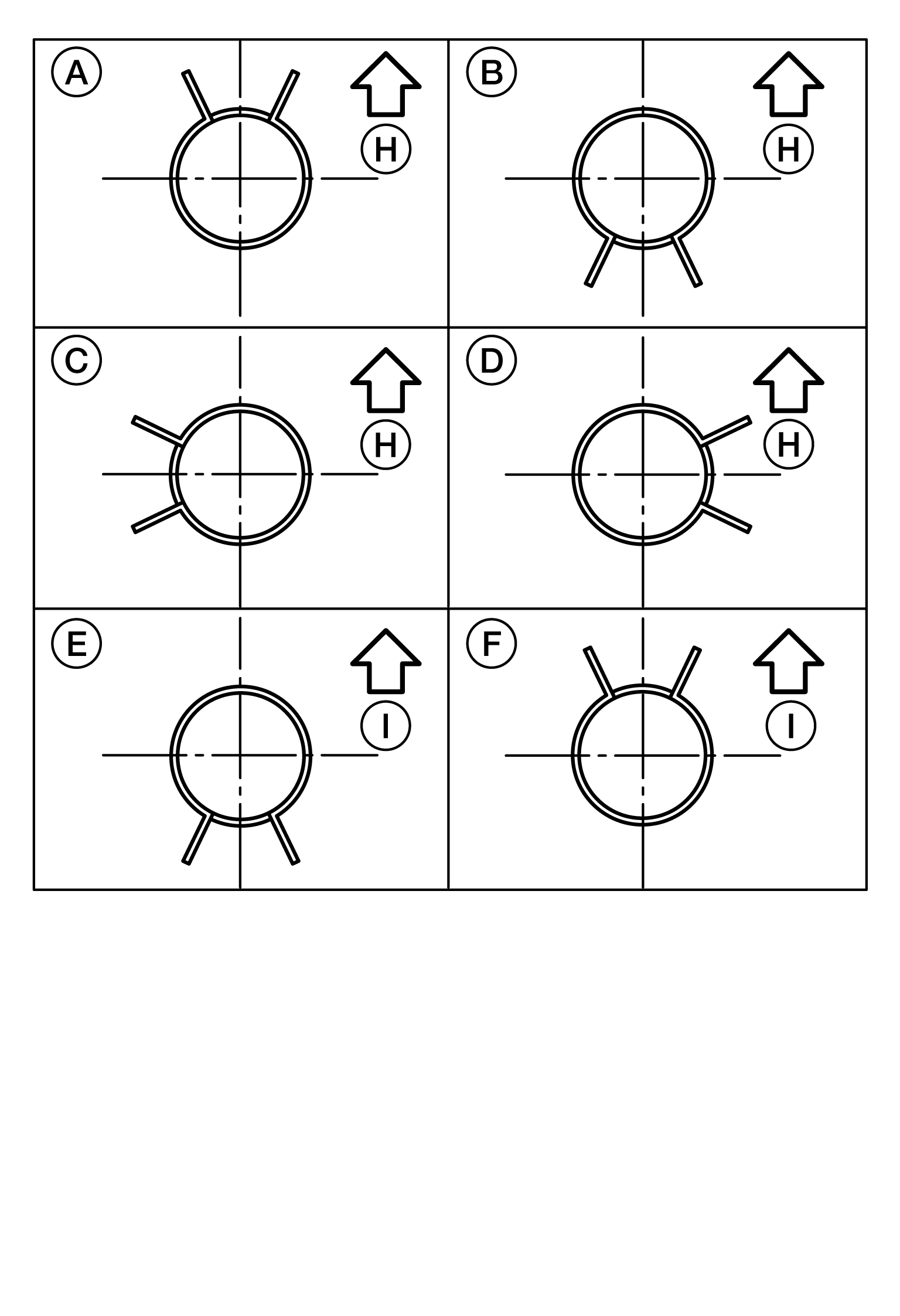

- - The illustration indicates the view from the hose ends.
- When installing hose clamps, center line of each hose clamp tab should be positioned as shown, above.
H
: Vehicle front
I
: Vehicle upper

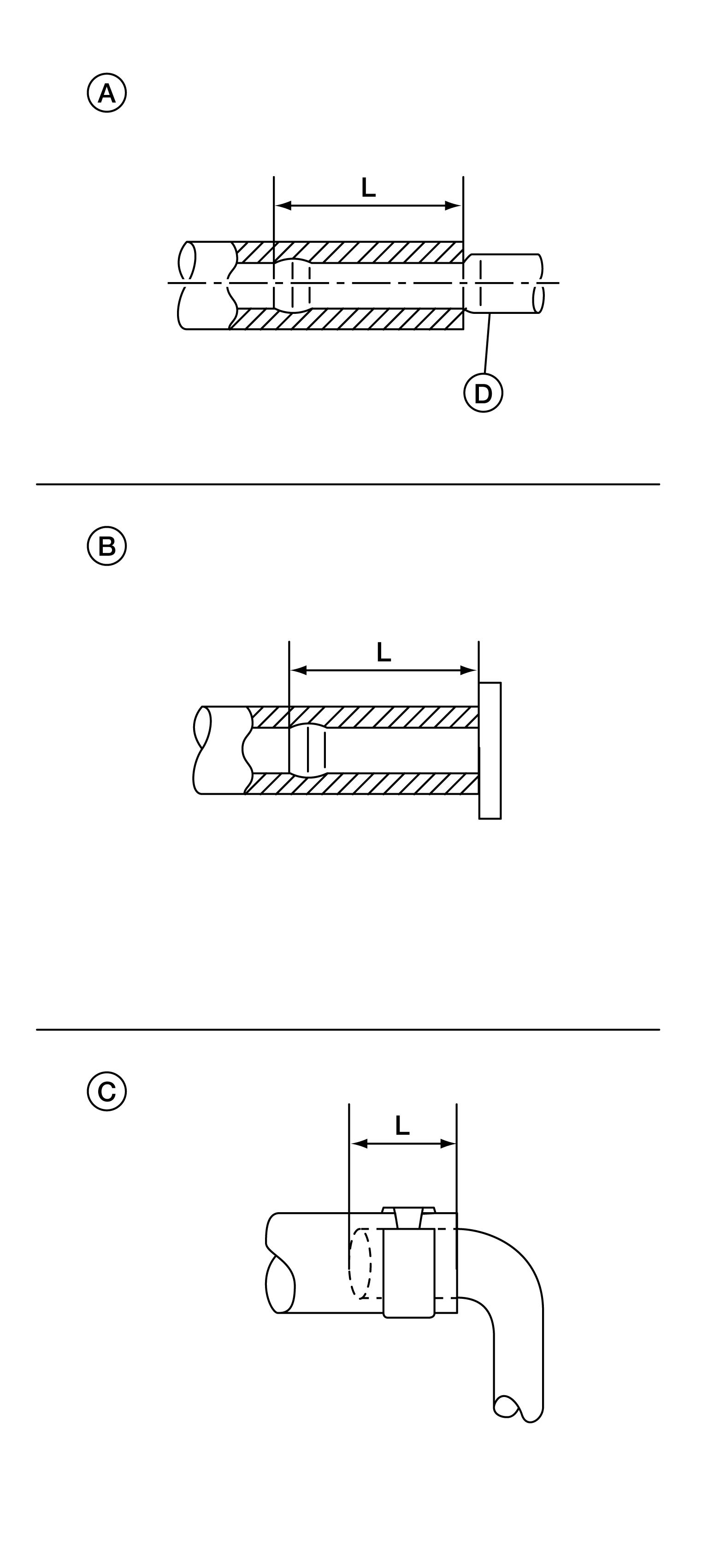

- Insert tubes into hoses as described.
View
Dimension (L)
A
30-33 mm (1.18-1.30 in). End reaches 2-stage bulge (D).
B
30-33 mm (1.18-1.30 in) End tube root.
C
28 mm (1.10 in) End reaches tube bend.
- Position hose clamps (1) at both ends of fluid cooler hoses (2) at dimension (A) from the hose edge.
Dimension (A)
: 5 - 9 mm (0.20 - 0.35 in)
