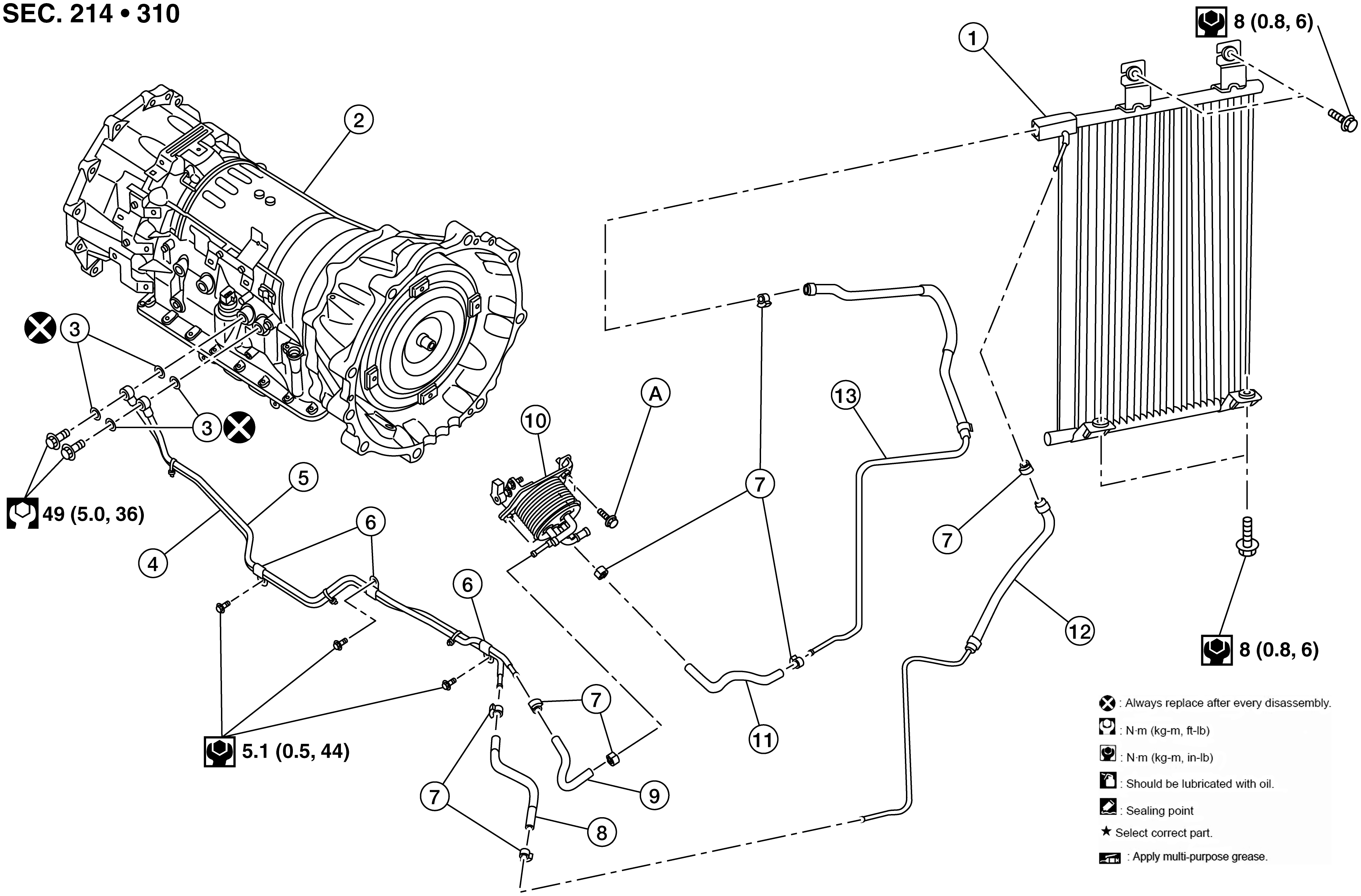

Exploded View - XD Models
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
A/T fluid cooler
|
2.
|
A/T assembly
|
3.
|
Copper washer
|
|
4.
|
A/T fluid cooler tube D
|
5.
|
A/T fluid cooler tube A
|
6.
|
Clip
|
|
7.
|
Hose clamp
|
8.
|
A/T fluid cooler hose E
|
9.
|
A/T fluid cooler hose A
|
|
10.
|
A/T fluid warmer
|
11.
|
A/T fluid cooler hose B
|
12.
|
A/T fluid cooler hose D
|
|
13.
|
A/T fluid cooler hose C
|
