Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heating and cooling unit and steering member from vehicle as an assembly. Refer to Removal and Installation .

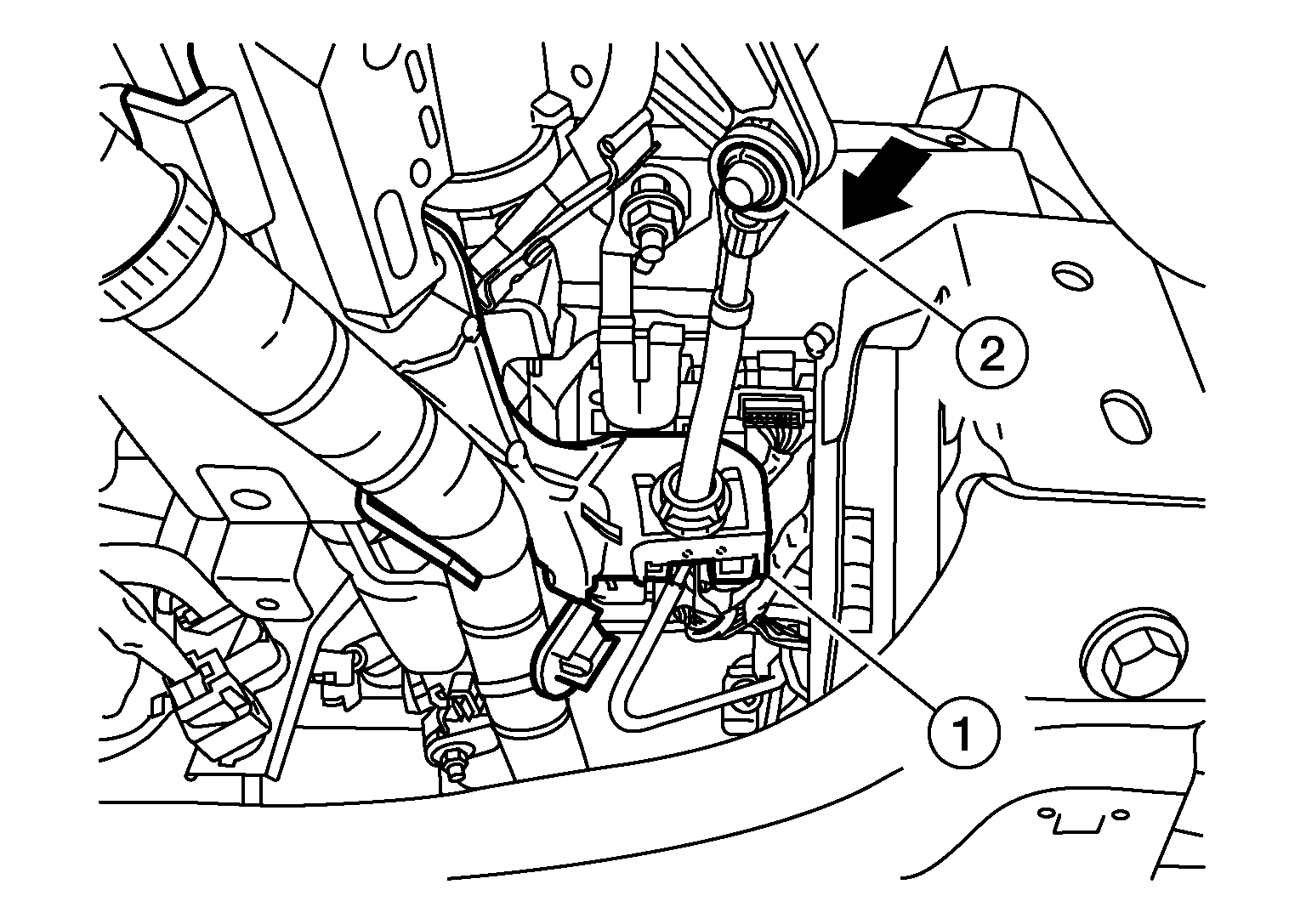

  2. Remove lock plate (1) and pull control cable (2) in the direction shown, below (SYMBOL ) to disconnect control cable from A/T shift selector.
    GNSDB118062Courtesy of NISSAN NORTH AMERICA, INC.

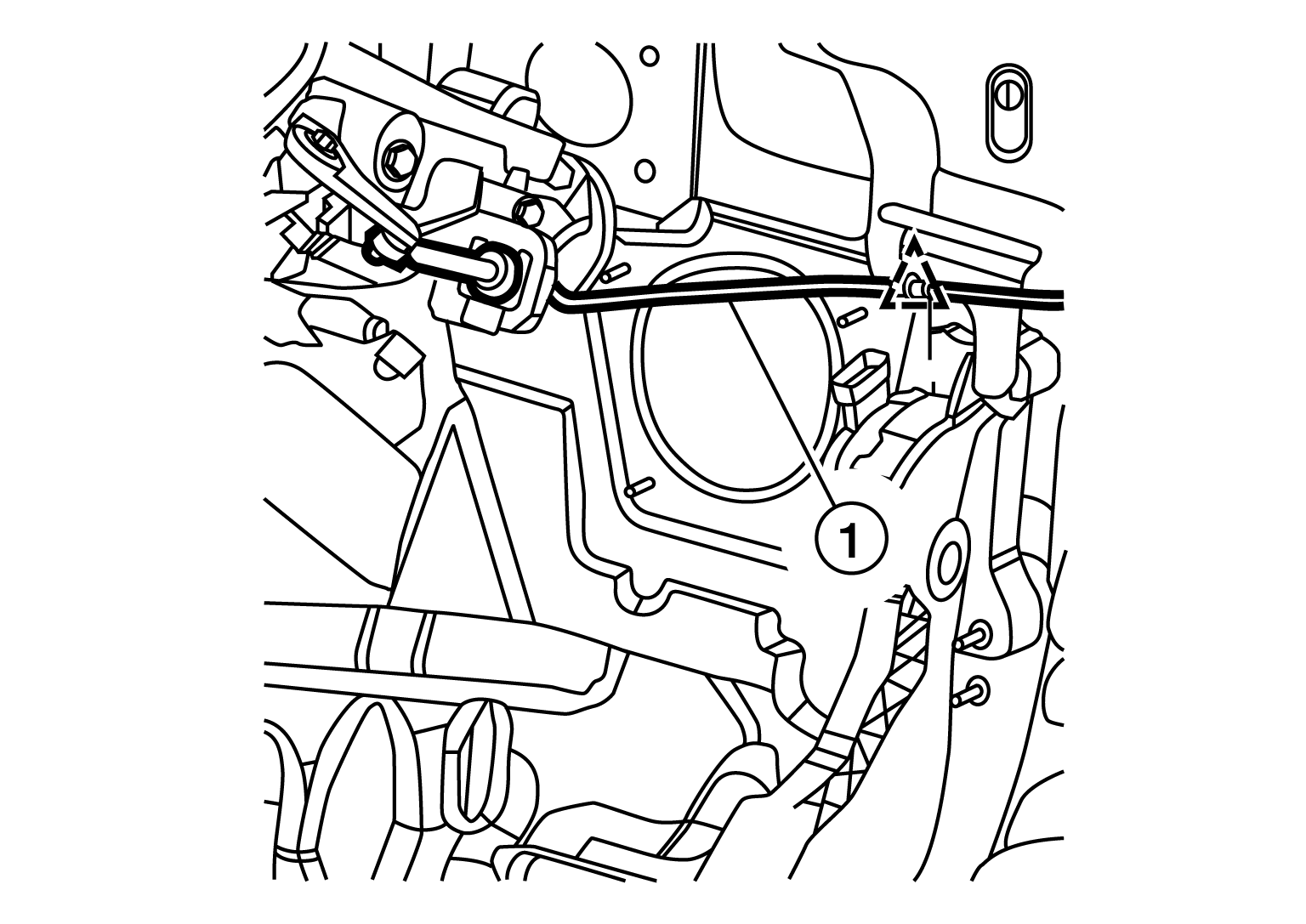

  3. Release clip fastening control cable (1) to accelerator pedal.
    GNSALDIA0824Z-824Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip

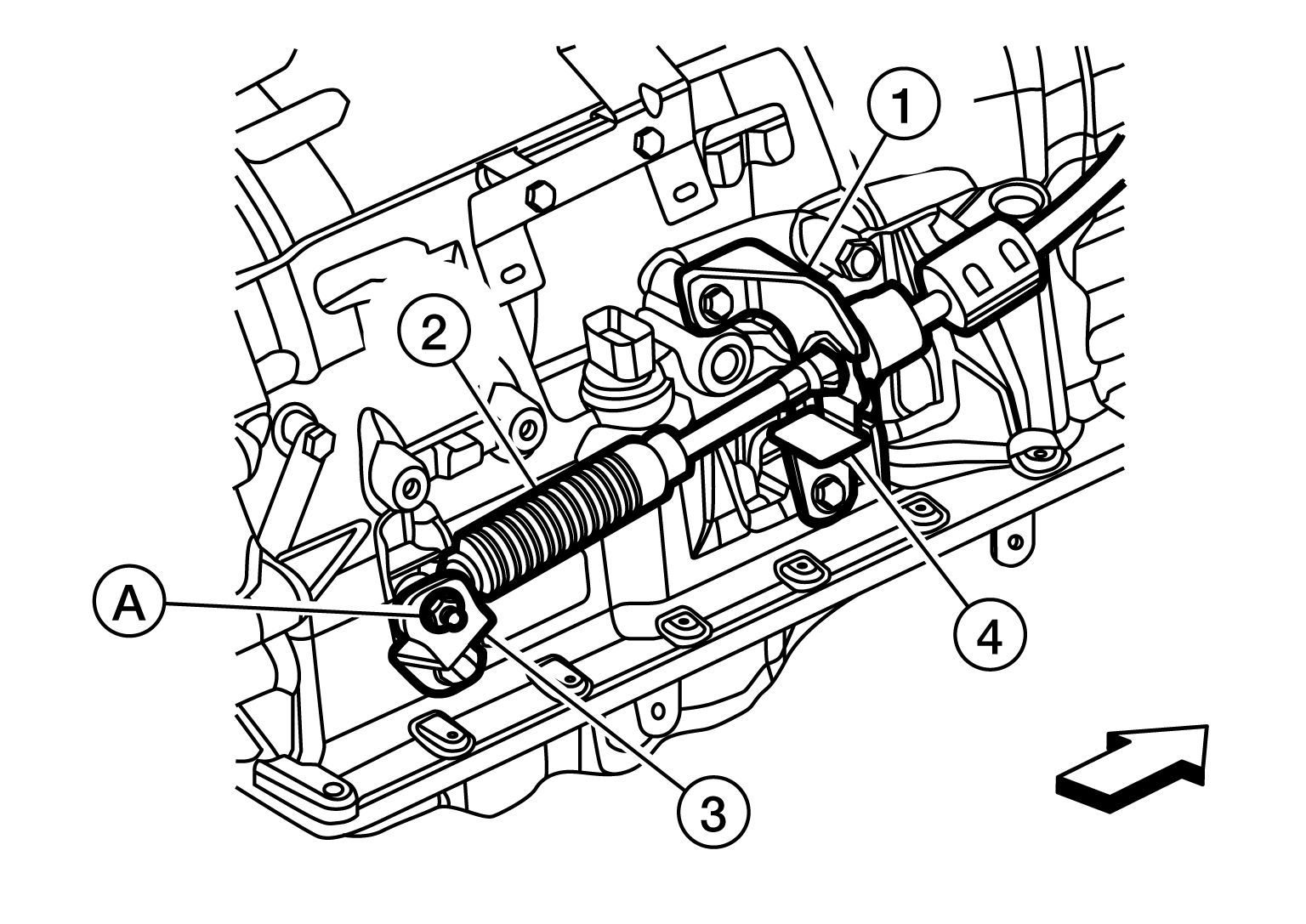

  4. Remove nut (A) and remove control cable (2) from manual lever (3).
    GNSDB115703Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove lock plate (4) and disconnect control cable (2) from bracket (1).

    SYMBOL

    : Front

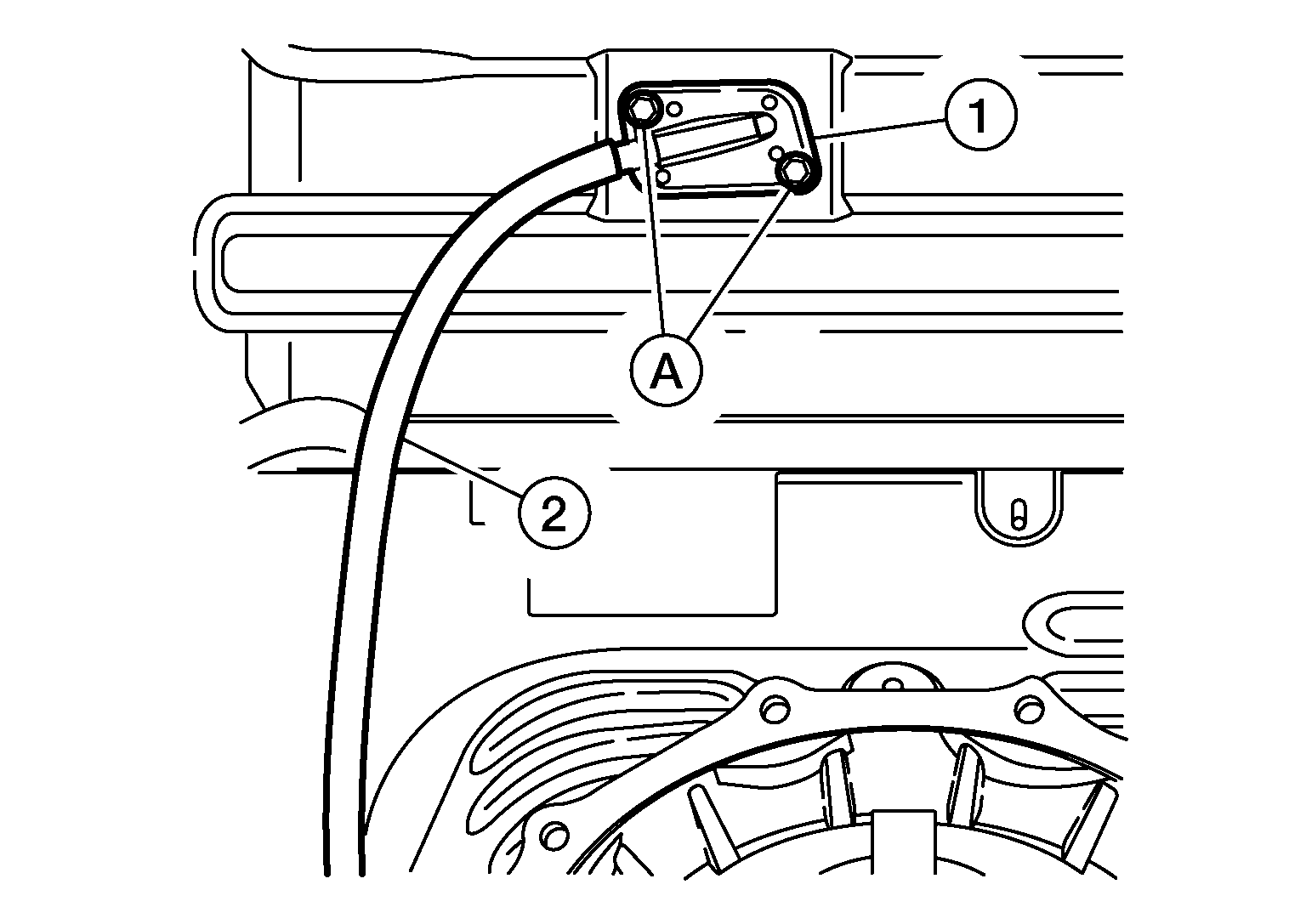

  6. Remove bolts (A) from control cable grommet (1).
    GNSAWDIA1463Z-463Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove control cable (2) from vehicle.
