Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

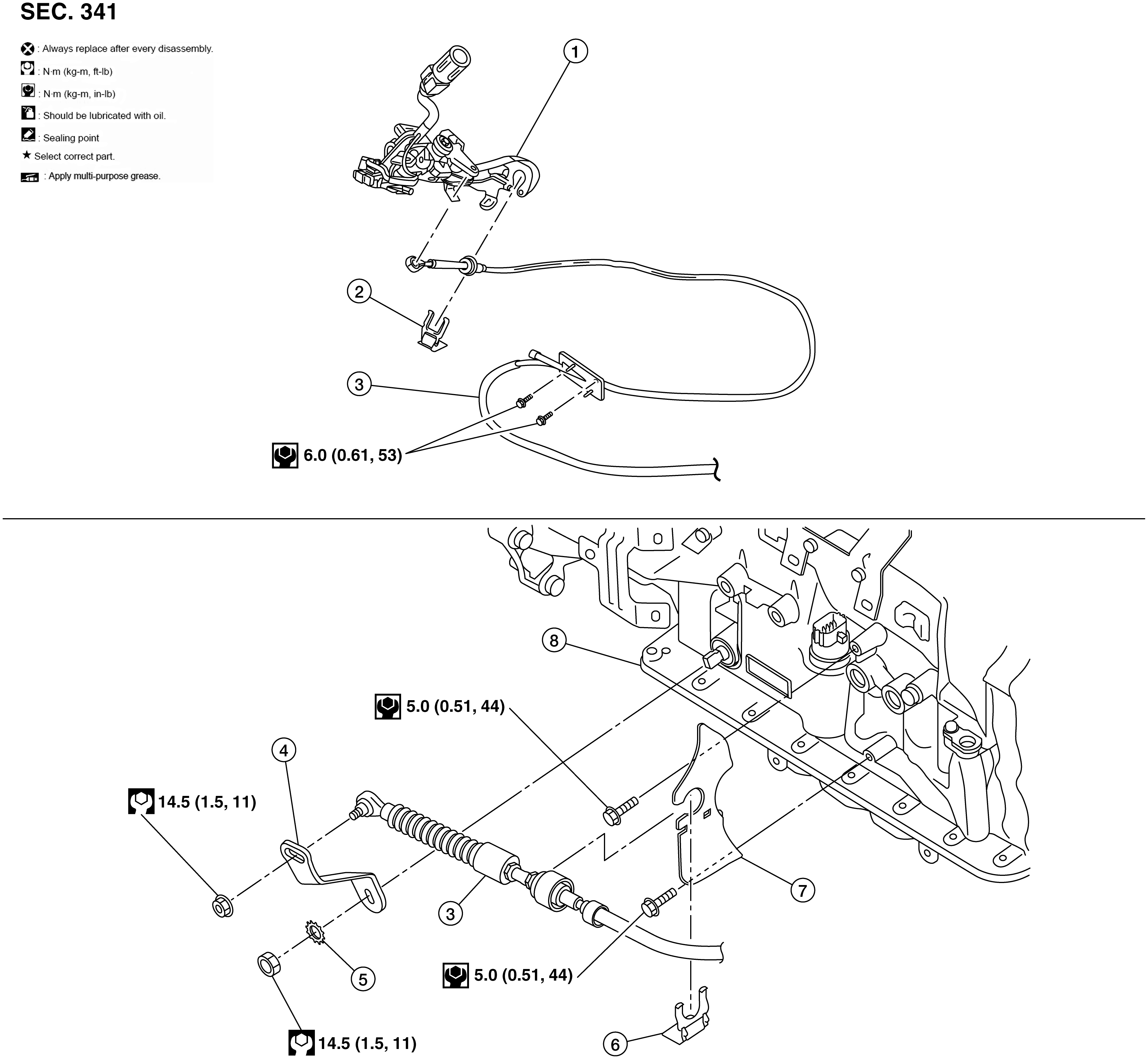

Fig 1: Control Cable With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T shift selector	2.	Lock plate	3.	Control cable
4.	Manual lever	5.	Washer	6.	Lock plate
7.	Bracket	8.	A/T assembly
