Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

Do not bend the A/T air breather hose to prevent damage to the hose.
Insert A/T air breather hose to air breather tube all the way to the curve of the tube.

To install air breather hose (1), face paint mark (A) toward the rear of the vehicle as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

To fix A/T air breather hose (1) to the clip (2), face the A/T air breather hose paint mark (A) upward and observe the installation position shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

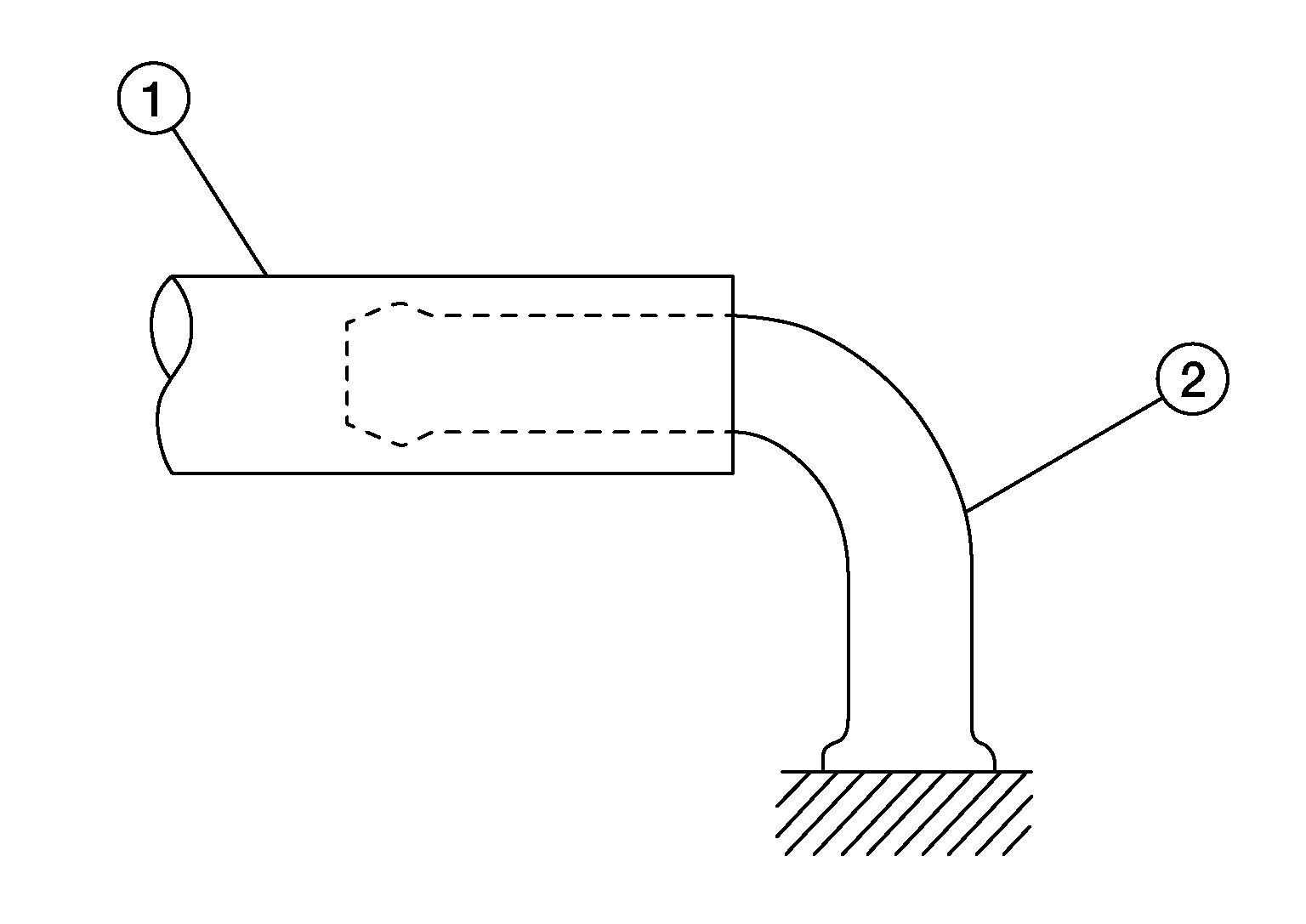

When inserting breather hose (1) to breather tube (2), be sure to insert it fully until its end reaches the stop.

Courtesy of NISSAN NORTH AMERICA, INC.
