Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seatback assembly. Refer to Removal and Installation .
  2. Remove rear seatback hinge assembly bolts (A/B).
    GNSALJIA1776Z-776Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release rear RH seatback flap J-hooks, then release hook and loop fasteners (A) then place seatback flap aside.
    GNSALJIA1777Z-777Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : J-hook
  4. Release J-hooks (A) from seatback board [RH (1)].
    GNSALJIA1778Z-778Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release clips (A), then remove seatback board [RH (1)] from rear seatback frame (RH).
    GNSALJIA1779Z-779Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove nut (B) then separate rear seatbacks (LH/RH).
    GNSALJIA1780Z-780Courtesy of NISSAN NORTH AMERICA, INC.

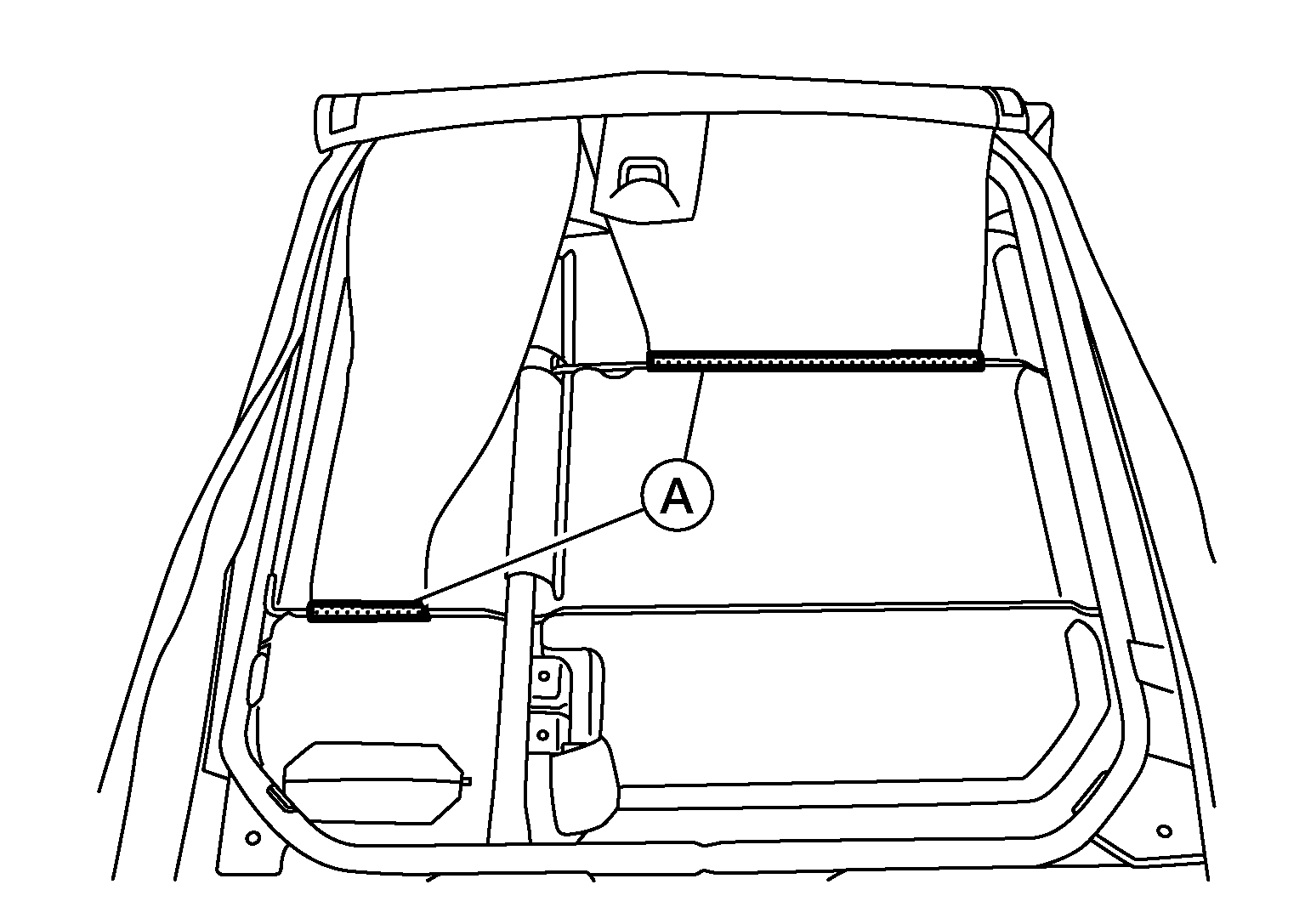

  7. Release J-hooks (A) then position seatback flaps aside.
    GNSALJIA1787Z-787Courtesy of NISSAN NORTH AMERICA, INC.

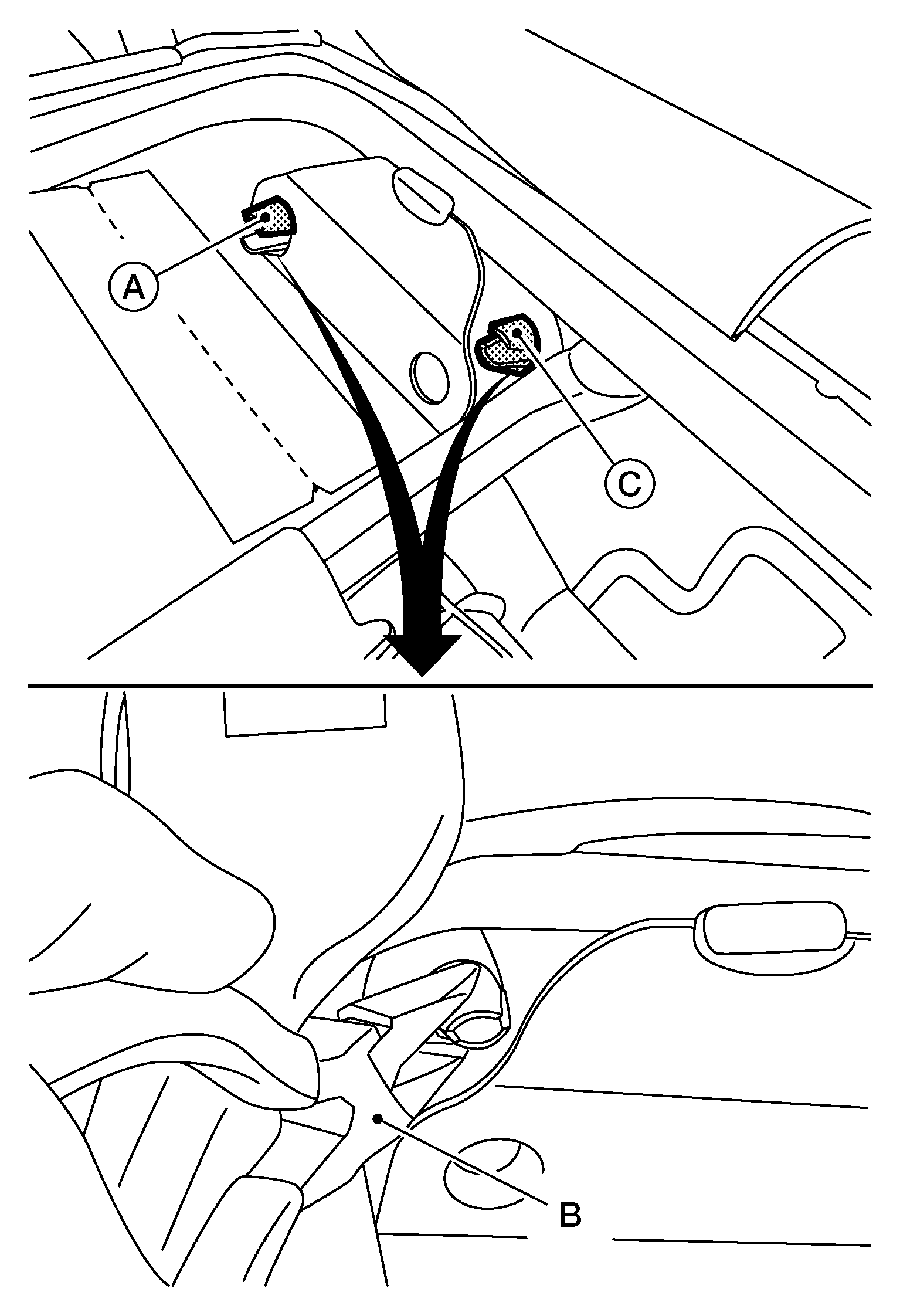

  8. Remove headrest holder (free) and headrest holder (lock).
    NOTE: Using suitable tool (B), release the center headrest holder [lock (A)] and headrest holder [free (C)] as shown below.
    GNSALJIA1788Z-788Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove armrest assembly using the following procedure:

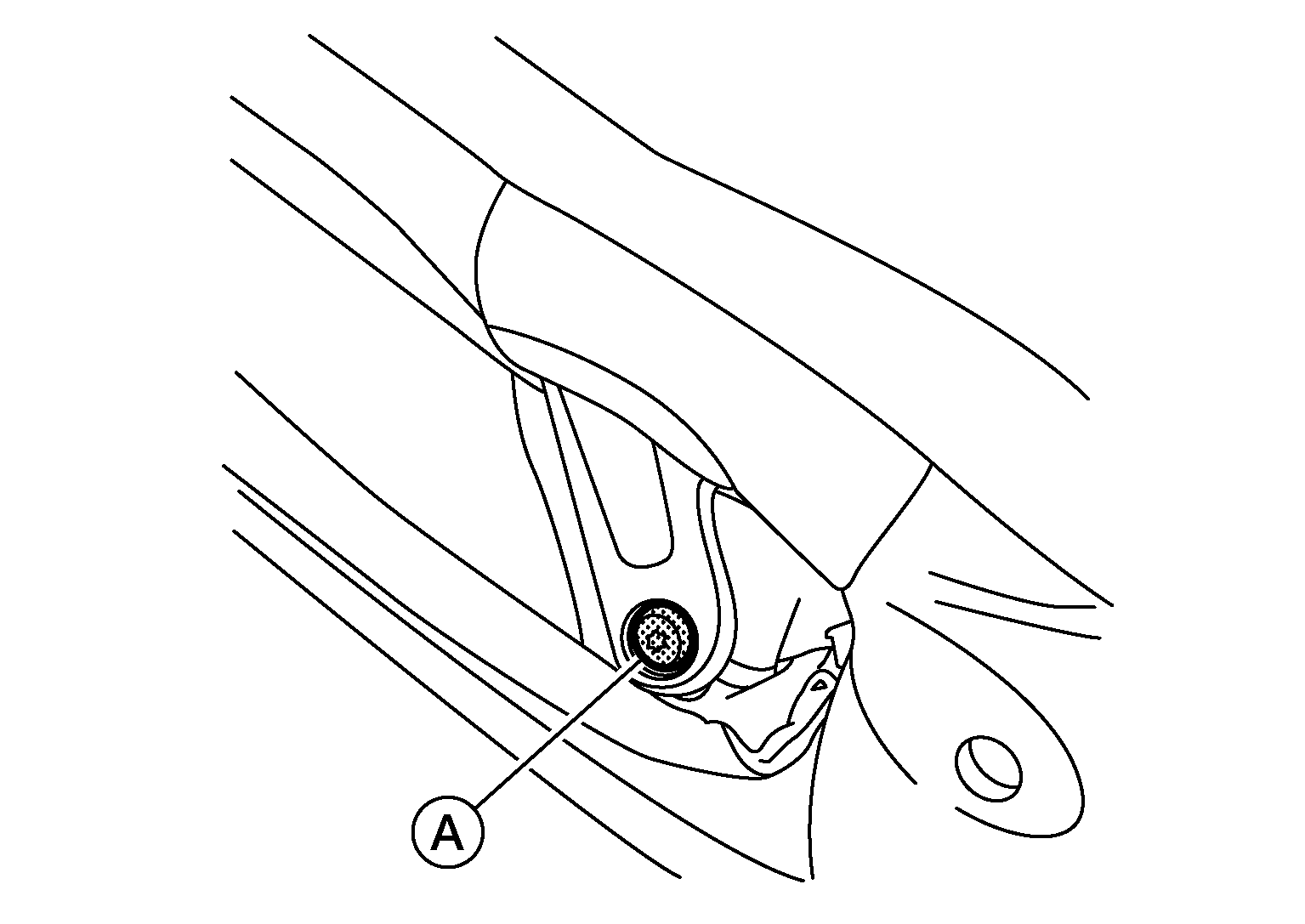

    1. Remove armrest assembly bolt (A).
      GNSALJIA1789Z-789Courtesy of NISSAN NORTH AMERICA, INC.

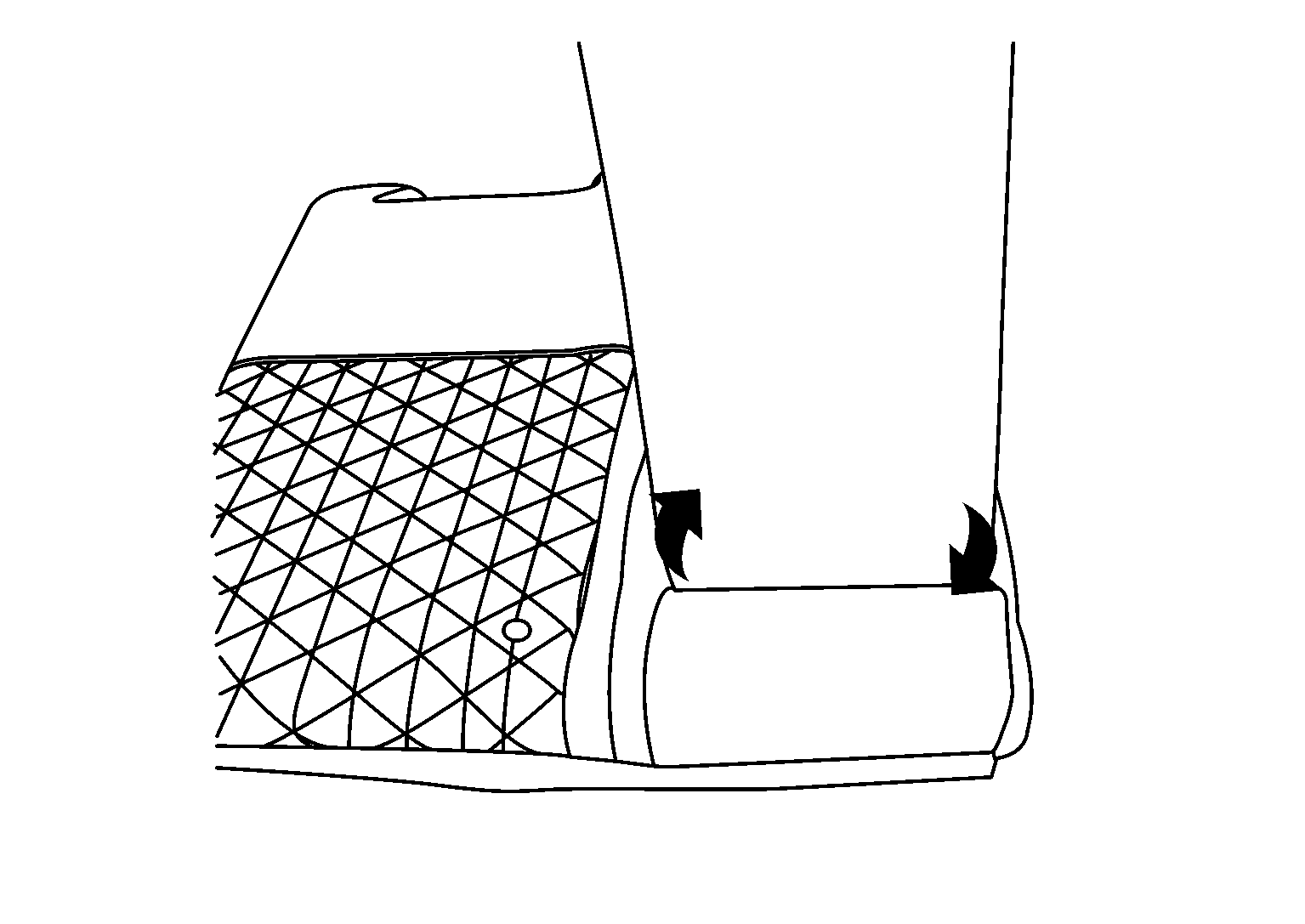

    2. Remove the armrest assembly as shown below.
      GNSALJIA1790Z-790Courtesy of NISSAN NORTH AMERICA, INC.

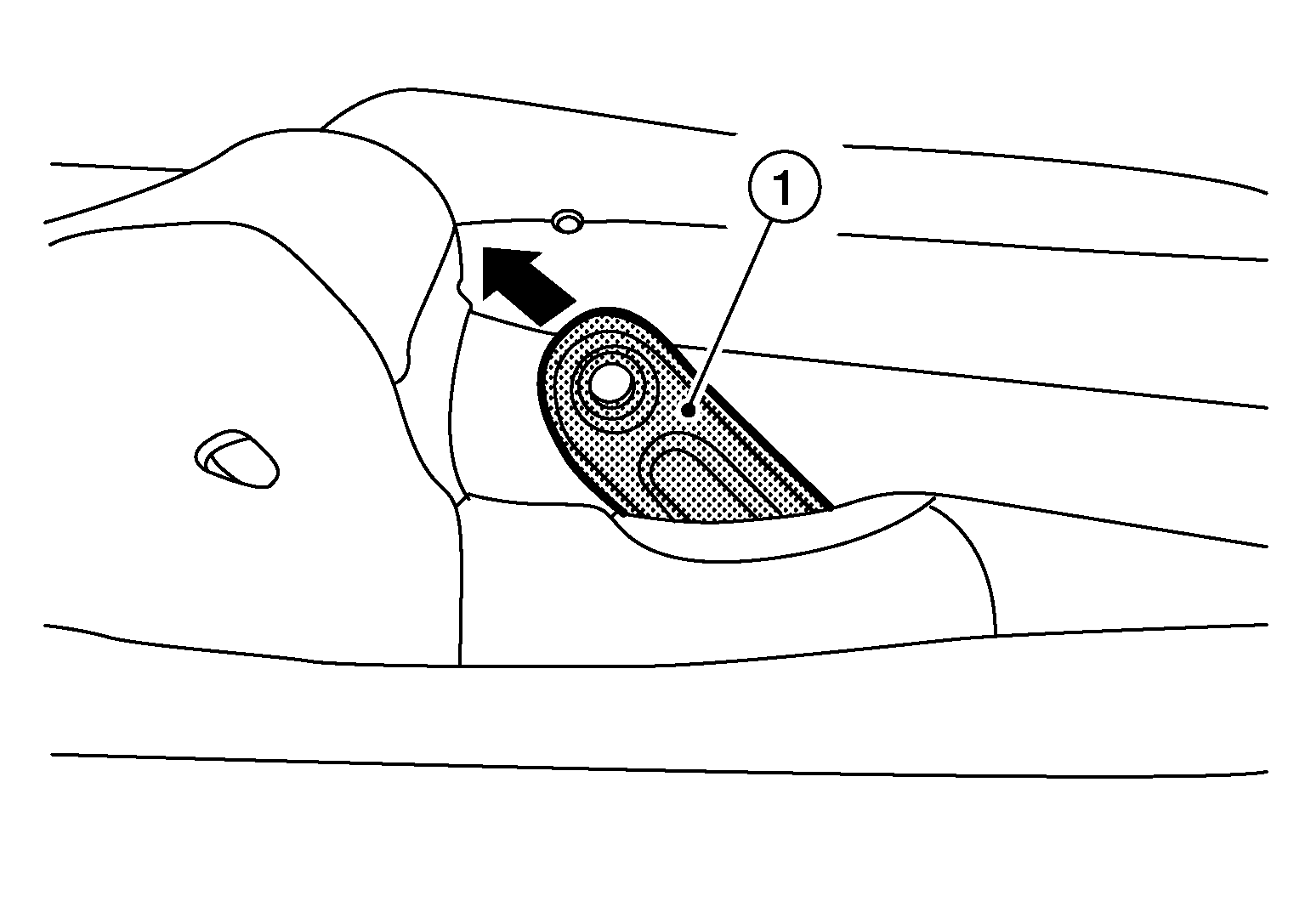

  10. Remove armrest finisher (1) as shown below.
    GNSALJIA1791Z-791Courtesy of NISSAN NORTH AMERICA, INC.

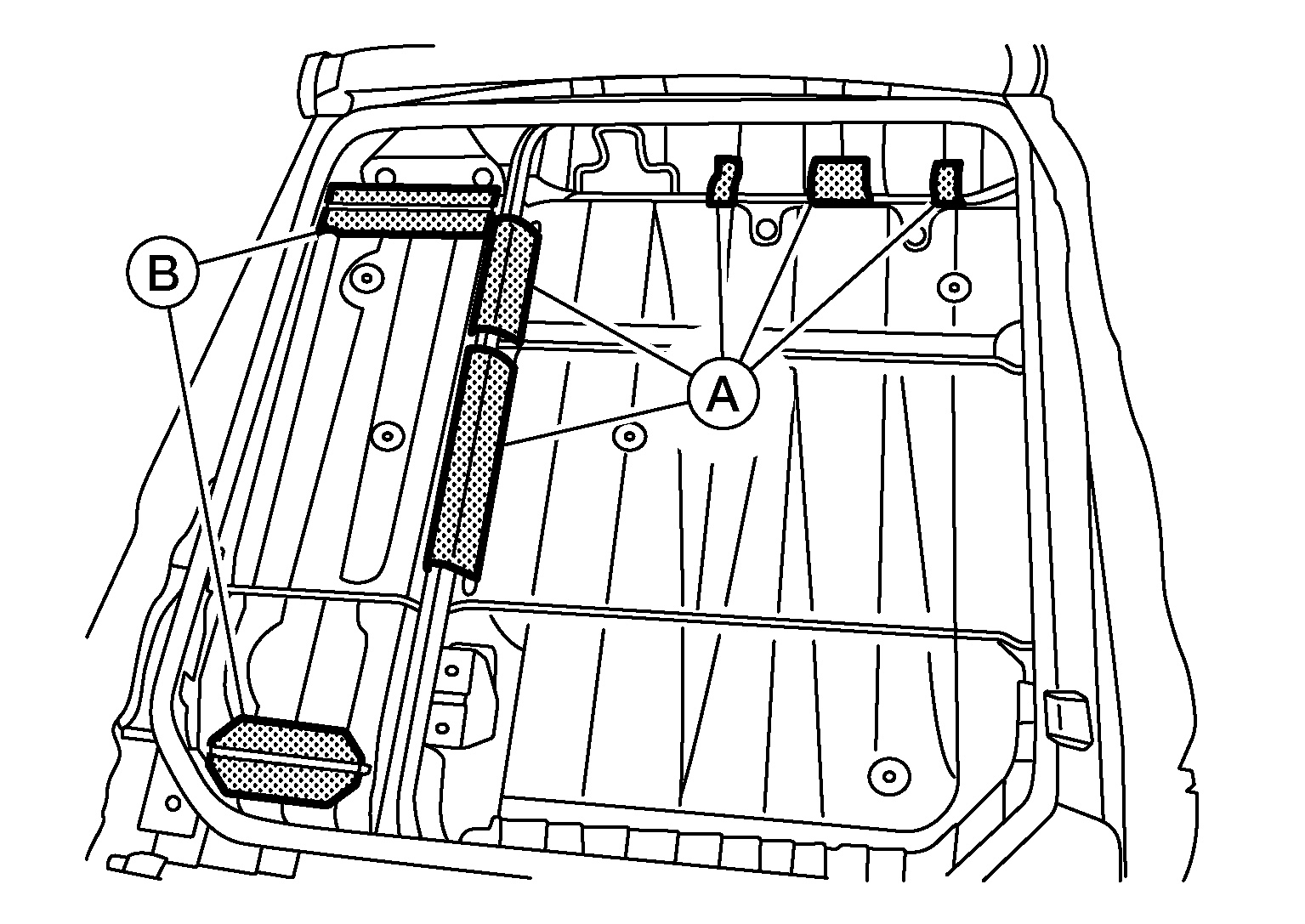

  11. Release J-hooks (A) from the rear seatback frame (RH), then remove seatback frame (RH) and route trim retainers (B) through seatback pad (RH).
    GNSALJIA1792Z-792Courtesy of NISSAN NORTH AMERICA, INC.

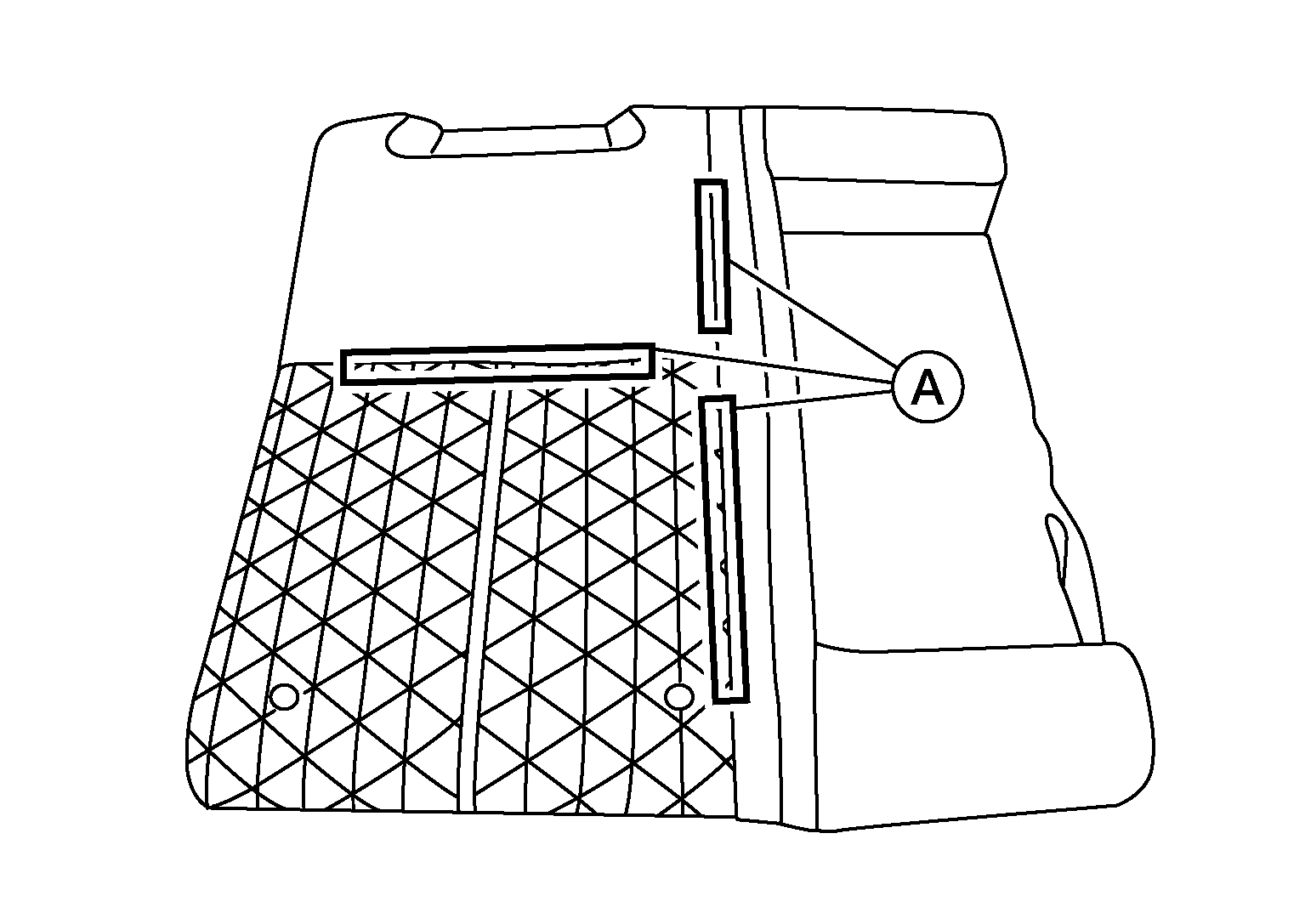

  12. Release hook and loop fasteners (A), then separate the rear seatback pad (RH) from the seatback trim (RH).
    GNSALJIA1793Z-793Courtesy of NISSAN NORTH AMERICA, INC.


  1. Remove the rear seatback assembly. Refer to Removal and Installation .
  2. Remove rear seatback hinge assembly bolts (A/B).
    GNSALJIA1776Z-776Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release rear RH seatback flap J-hooks, then release hook and loop fasteners (A) then place seatback flap aside.
    GNSALJIA1777Z-777Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : J-hook
  4. Release J-hooks (A) from seatback board [LH (1)].
    GNSALJIA1778Z-778Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release clips (A), then remove seatback board [RH (1)] from seatback frame (RH).
    GNSALJIA1779Z-779Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove nut (B) then separate rear seatbacks (LH/RH).
    GNSALJIA1780Z-780Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove LH headrest.

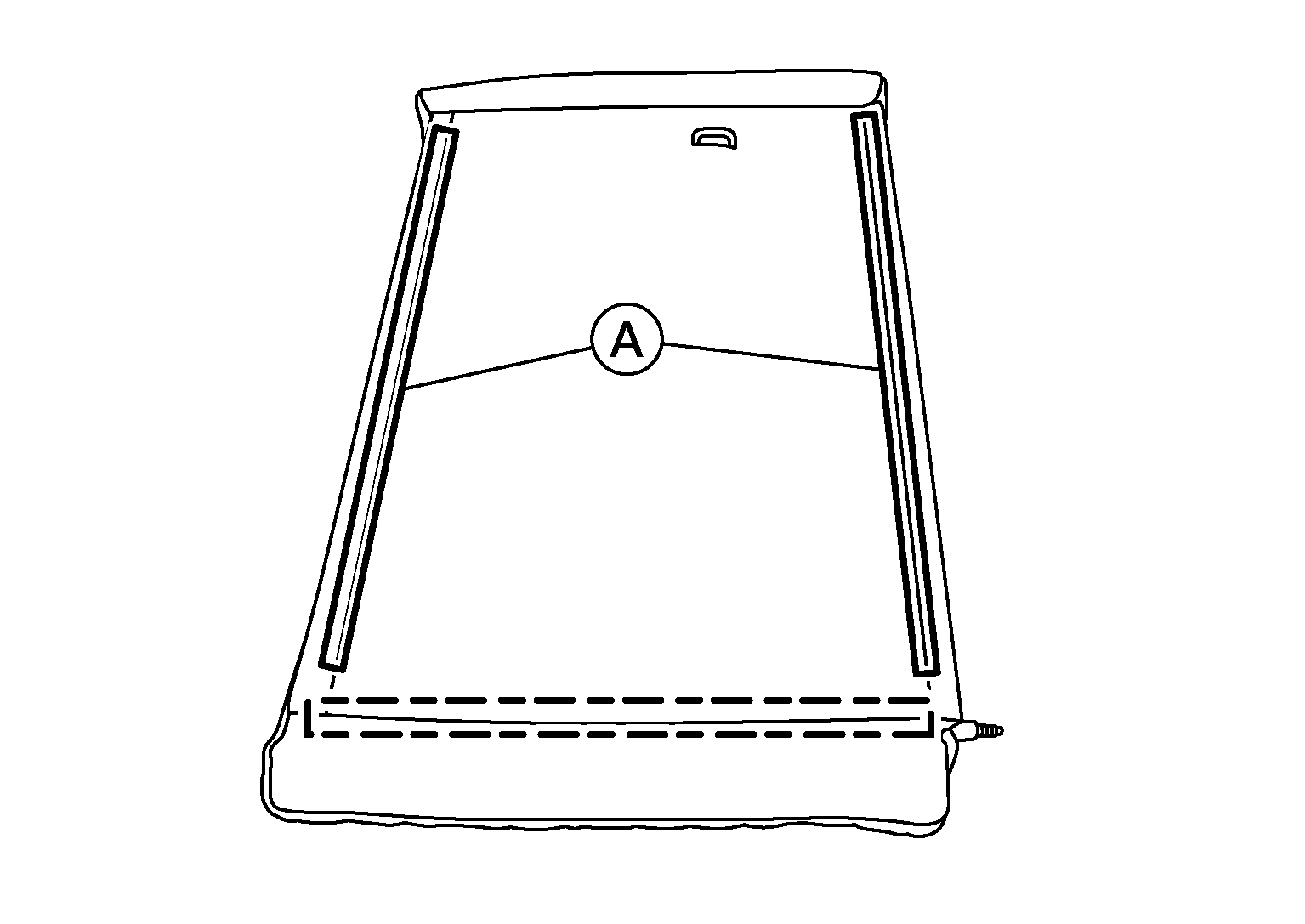

  8. Release J-hook and hook and loop fasteners (A), then place aside LH rear seatback flap.
    GNSALJIA1781Z-781Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : J-hook

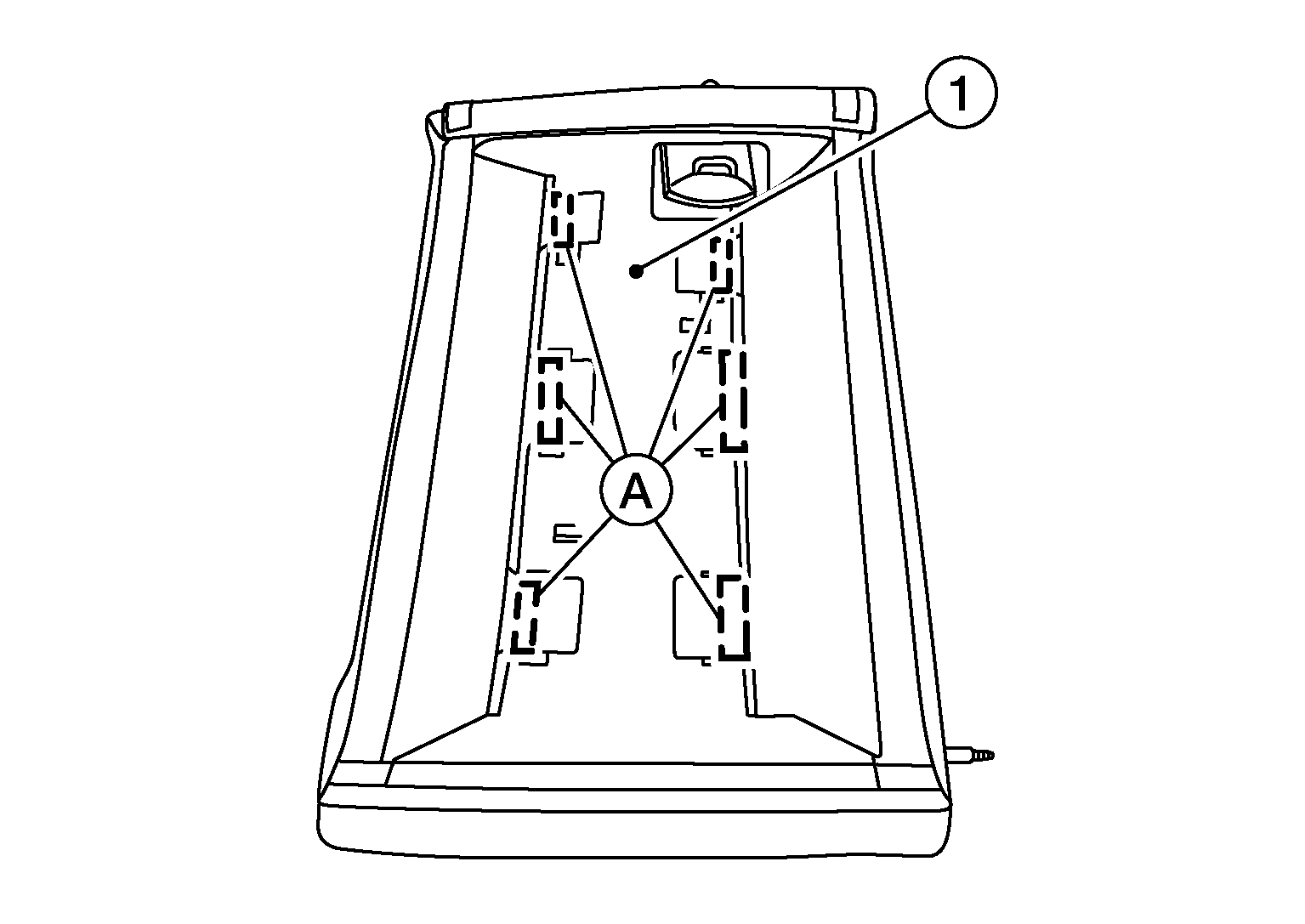

  9. Release J-hooks (A) from seatback board [LH (1)].
    GNSALJIA1782Z-782Courtesy of NISSAN NORTH AMERICA, INC.

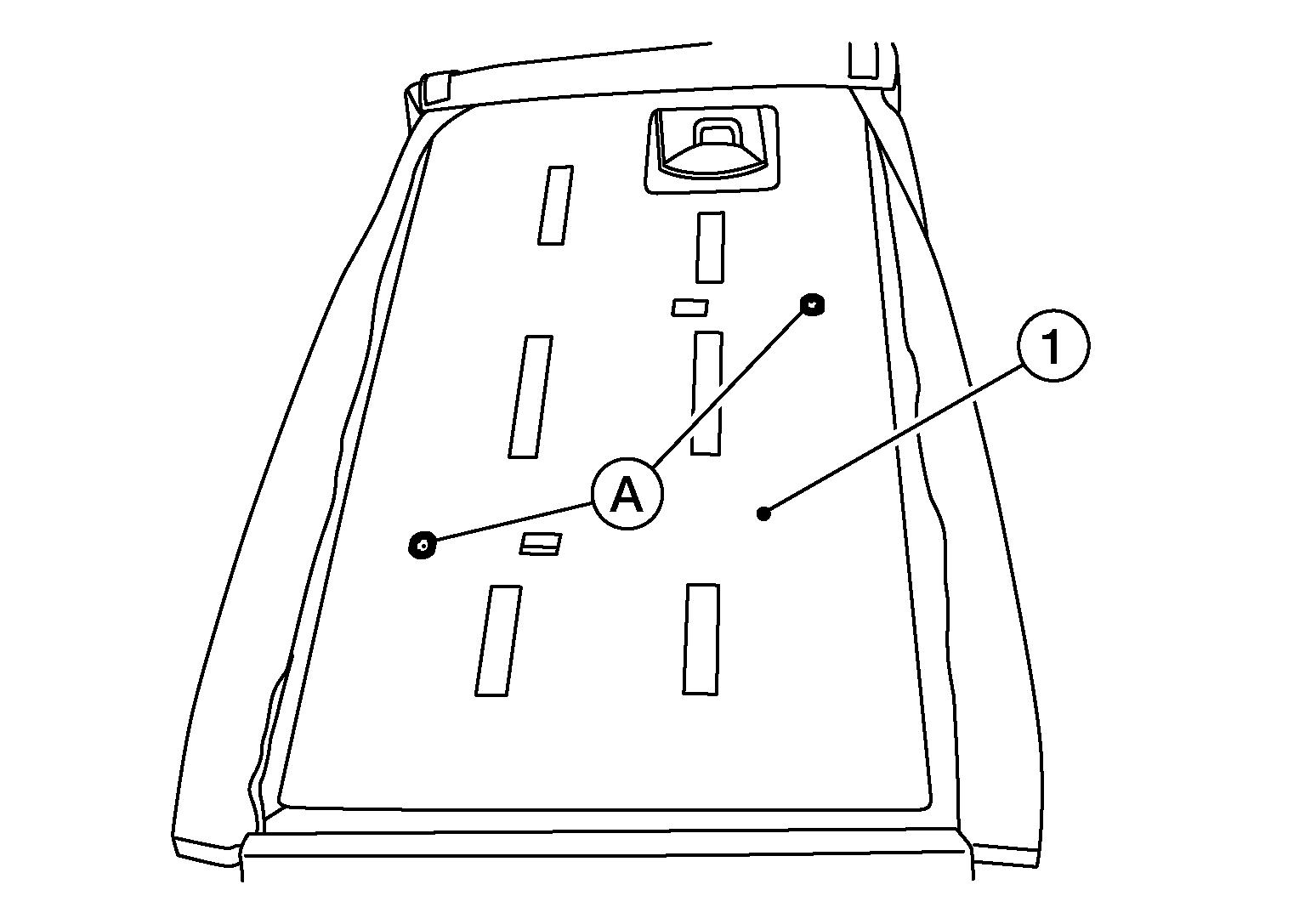

  10. Release clips (A) from seatback frame and remove seatback board [LH (1)].
    GNSALJIA1783Z-783Courtesy of NISSAN NORTH AMERICA, INC.

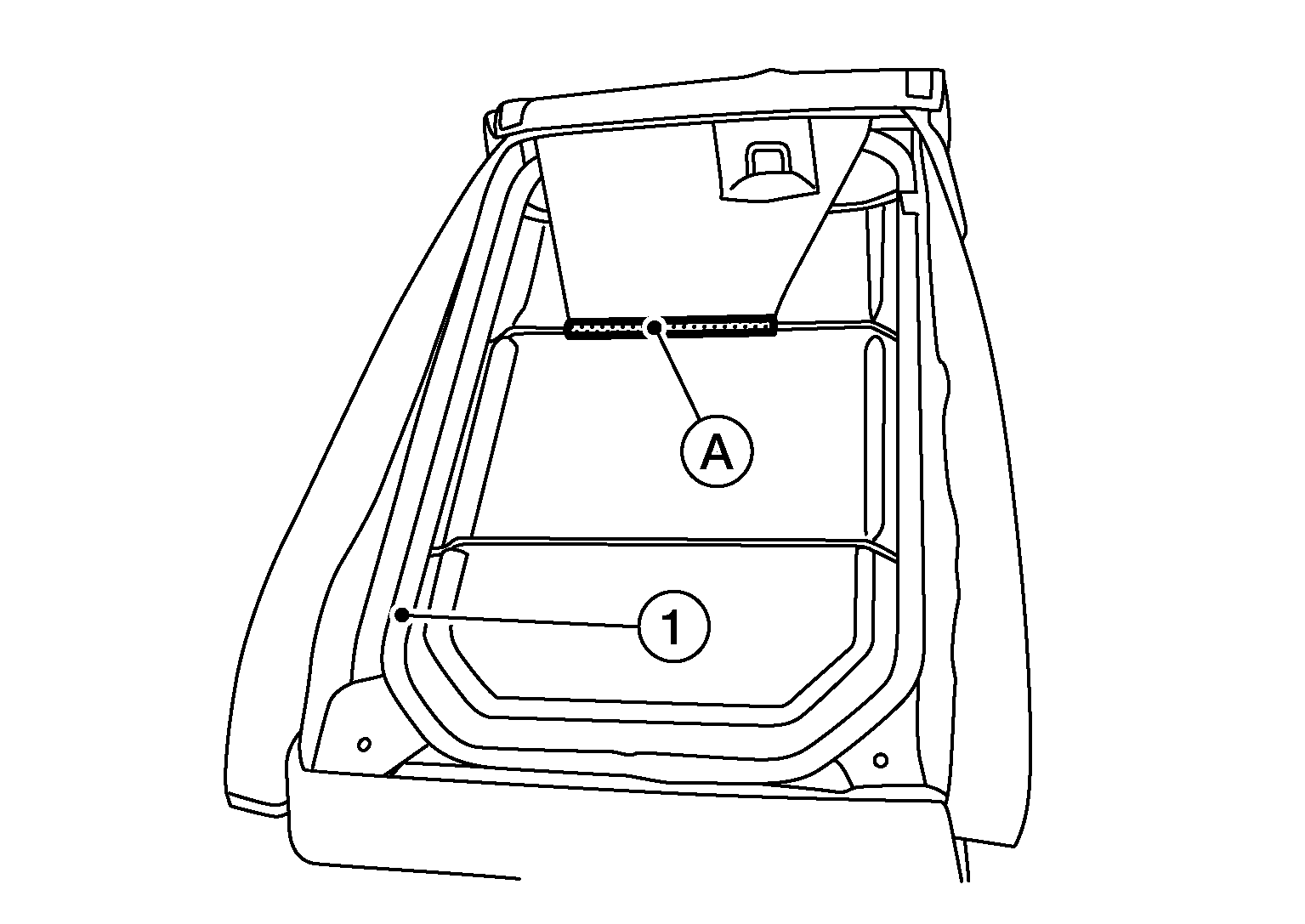

  11. Release J-hook (A) from seatback frame (1), then position J-hook (A) aside.
    GNSALJIA1784Z-784Courtesy of NISSAN NORTH AMERICA, INC.
  12. Release headrest holder (lock) and headrest holder (free), then remove headrest holders.
    CAUTION: Before removing/installing the headrest holder (lock) and headrest holder (free), check orientation (front/rear and right/left).

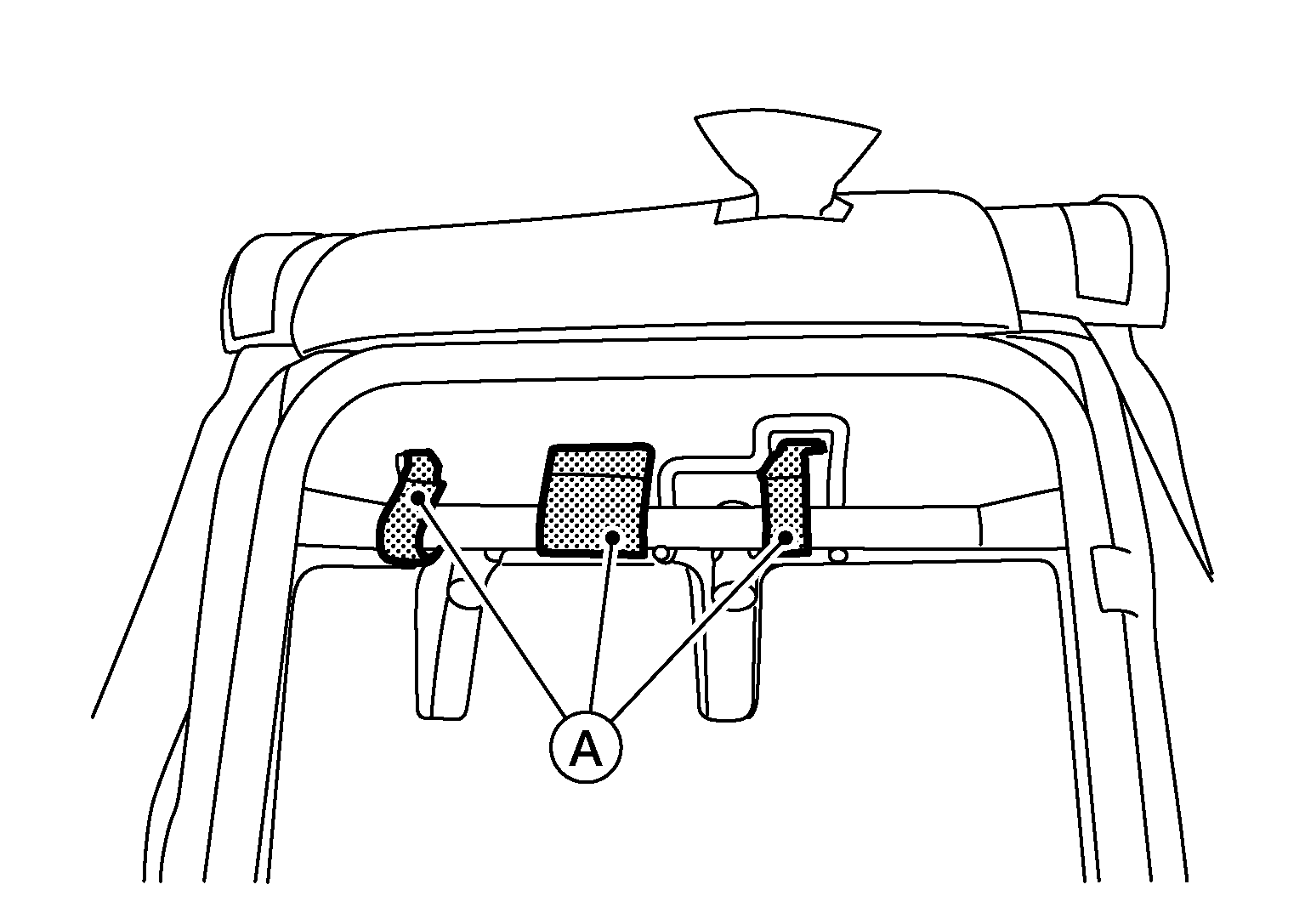

  13. Release J-hooks (A), then remove seatback frame (LH) from seatback pad and trim assembly (LH).
    GNSALJIA1785Z-785Courtesy of NISSAN NORTH AMERICA, INC.

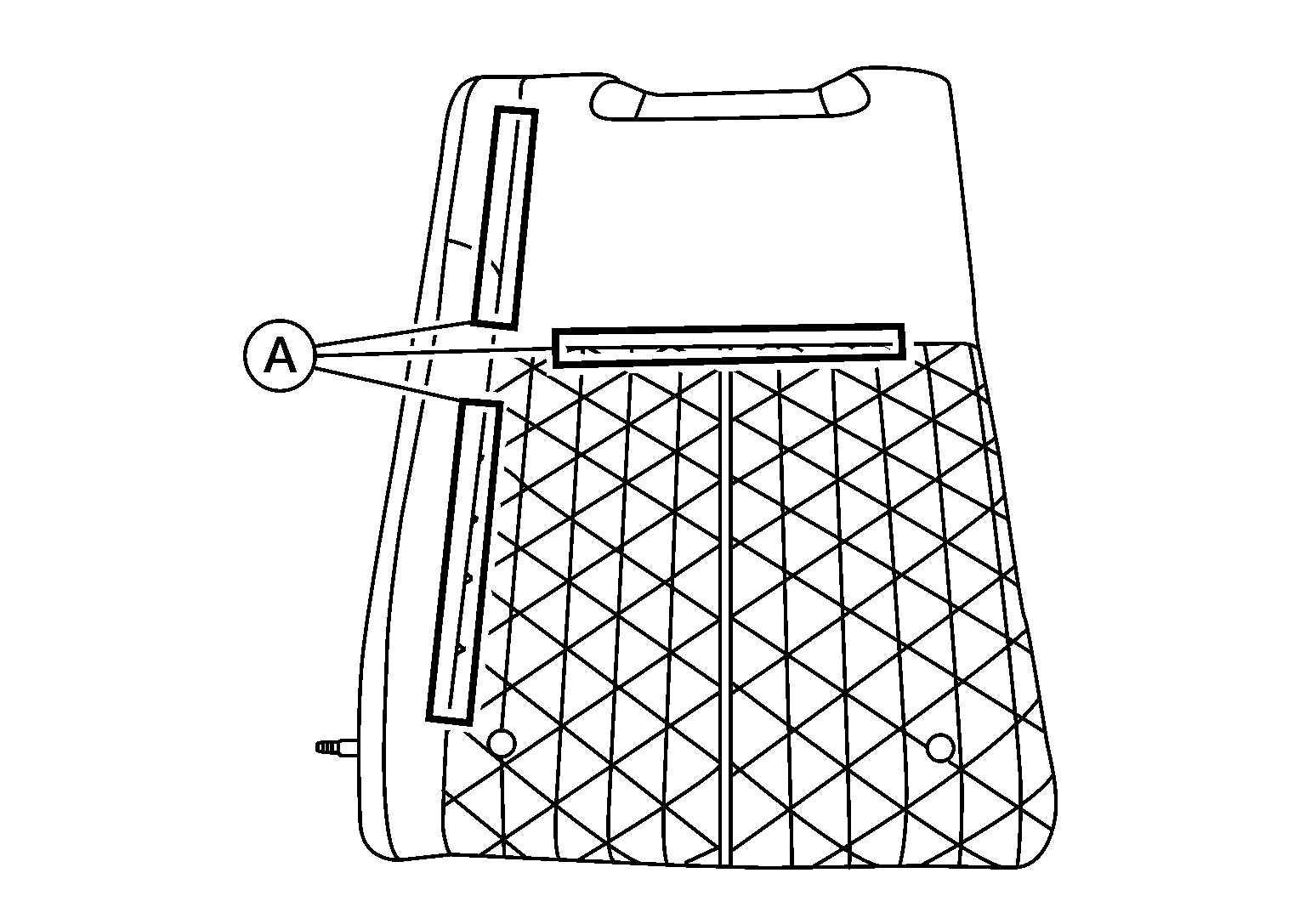

  14. Route J-hooks through the seatback pad (LH), then release hook fasteners (A) and separate seatback pad (LH) from seatback trim (LH).
    GNSALJIA1786Z-786Courtesy of NISSAN NORTH AMERICA, INC.
