Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Assembly is in the reverse order of disassembly.

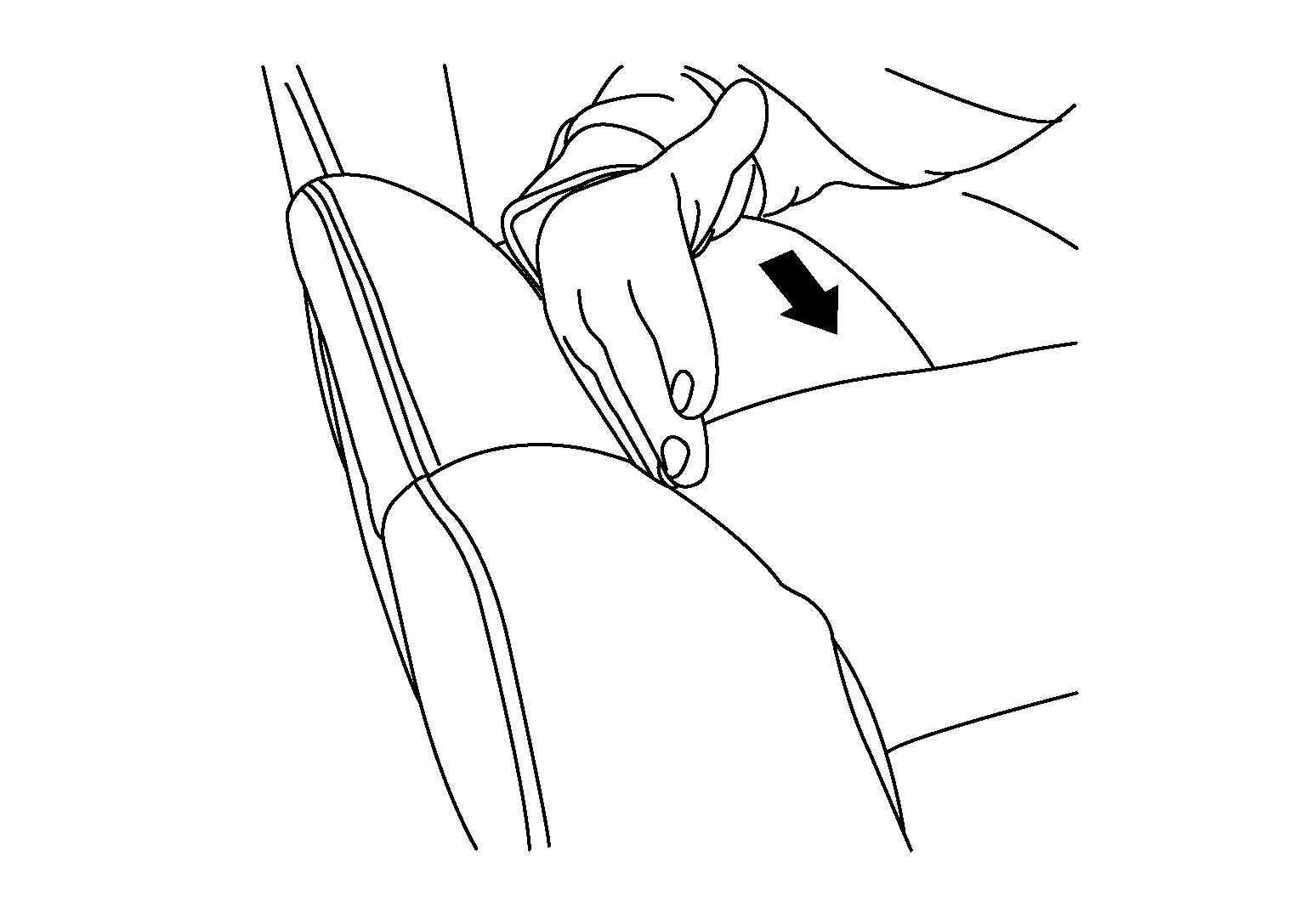

NOTE: When installing the seatback trim, firmly push down while sliding your hand along the seams as shown to ensure the hook fasteners below the seatback trim are fastened properly.
GNSALJIA0656Z-656Courtesy of NISSAN NORTH AMERICA, INC.


Assembly is in the reverse order of disassembly.

NOTE: When installing the seatback trim, firmly push down while sliding your hand along the seams as shown to ensure the hook fasteners below the seatback trim are fastened properly.
GNSALJIA0656Z-656Courtesy of NISSAN NORTH AMERICA, INC.
