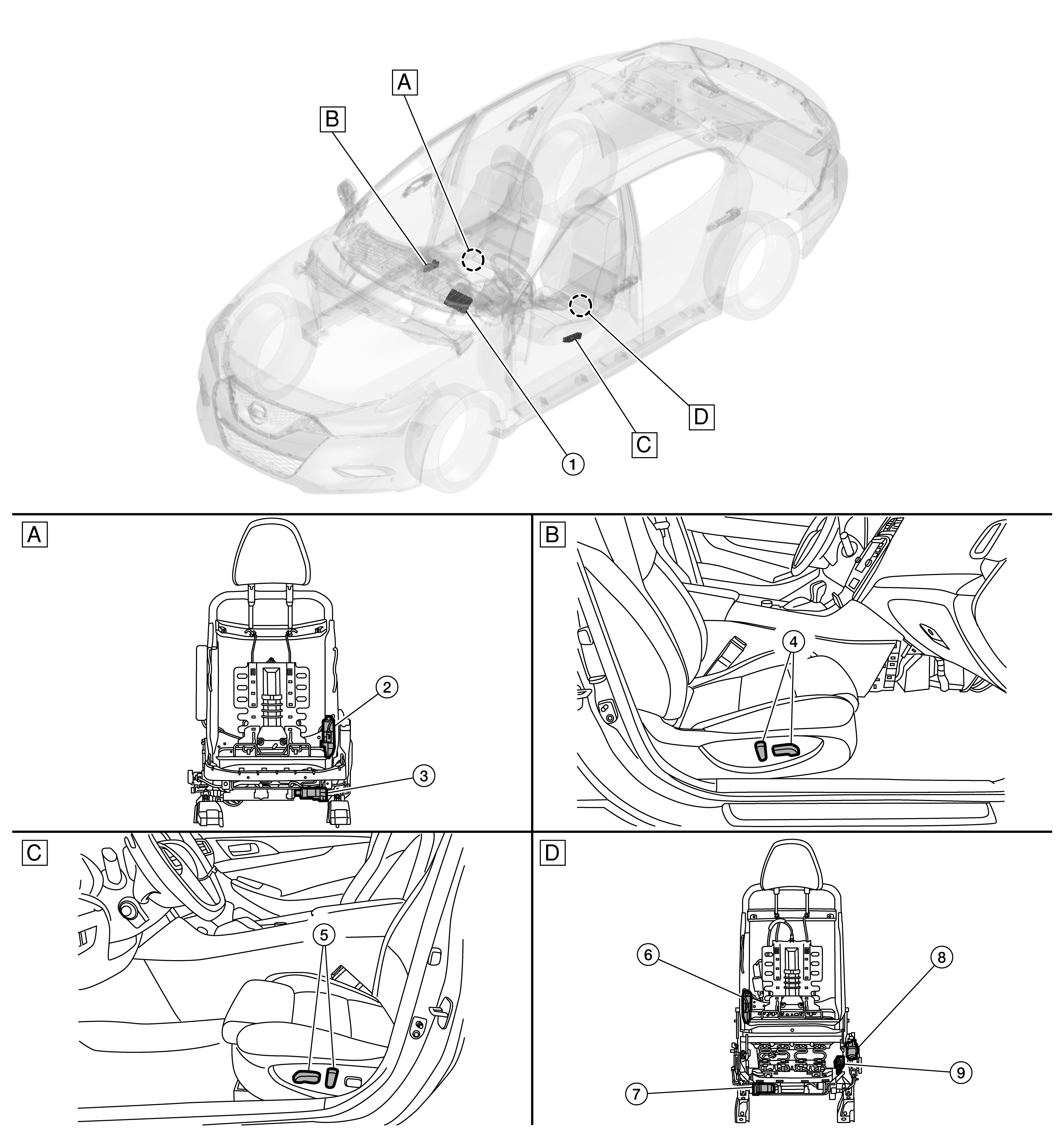

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
Passenger seat (view with seat and seat back finisher removed) |
B. |
RH side of passenger seat |
C. |
LH side of driver seat |
|
D. |
Driver seat (view with seat and seat back finisher removed) |
|
No. |
Component |
Function |
|
1. |
BCM |
Supplies the power received from battery to power seat switch. |
|
2. |
Reclining motor (RH) |
Refer to Reclining Motor . |
|
3. |
Sliding motor (RH) |
Refer to Sliding Motor . |
|
4. |
Power seat switch (RH) |
Refer to Power Seat Switch . |
|
5. |
Power seat switch (LH) |
Refer to Power Seat Switch . |
|
6. |
Reclining motor (LH) |
Refer to Reclining Motor . |
|
7. |
Sliding motor (LH) |
Refer to Sliding Motor . |
|
8 |
Lifting motor (rear) (LH) (RH similar, if equipped) |
Refer to Lifting Motor . |
|
9. |
Lifting motor (front) (LH) |
Refer to Lifting Motor . |
