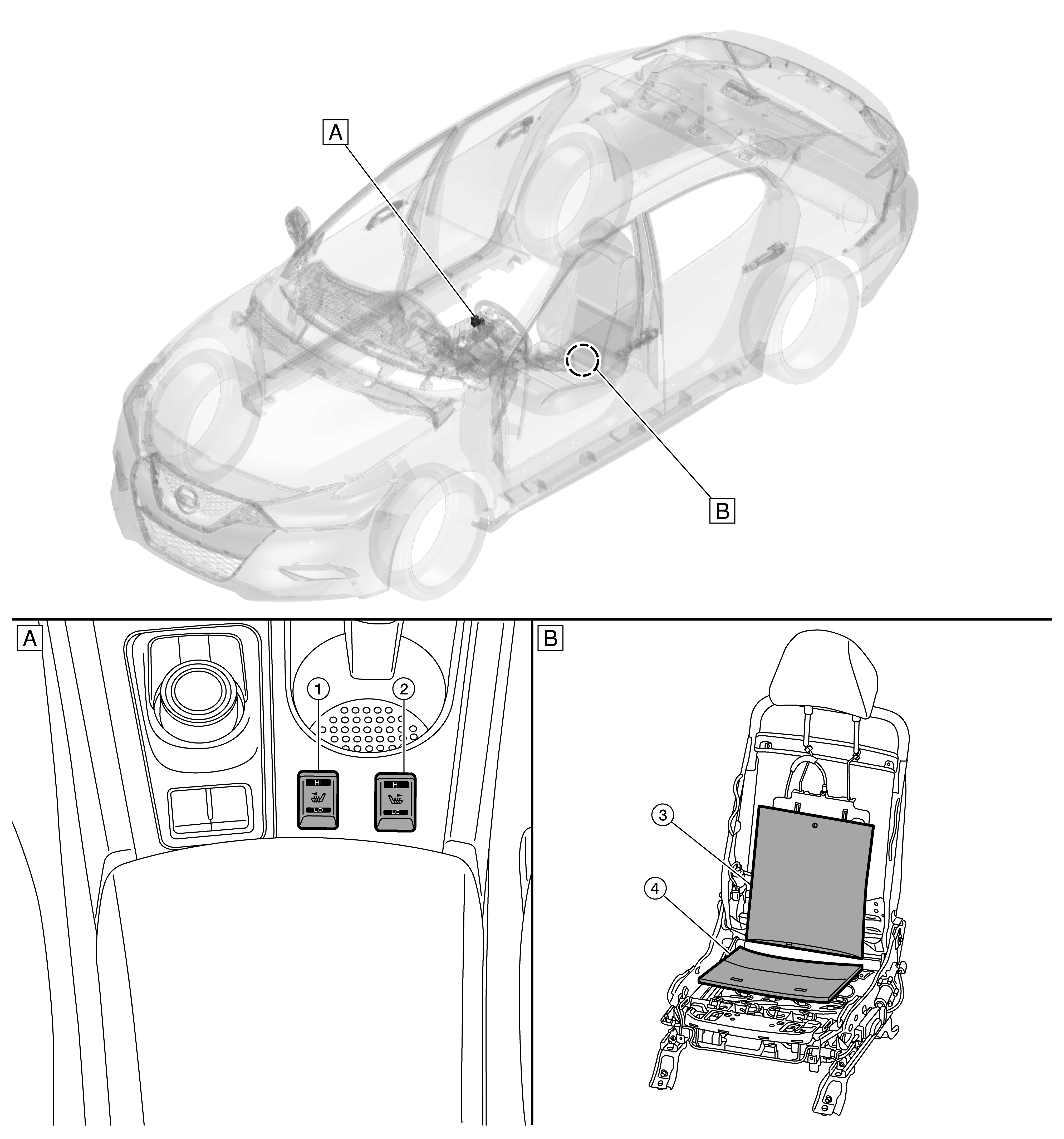

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
Front of center console |
B. |
Front seat (view with seat trim and cushion removed) |
|
No. |
Component |
Function |
|
1. |
Front heated seat switch LH |
Refer to Front Heated Seat Switch . |
|
2. |
Front heated seat switch RH |
|
|
3. |
Seat heater (back) |
Refer to Front Seat Heater . |
|
4. |
Seat heater (cushion) |
