Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

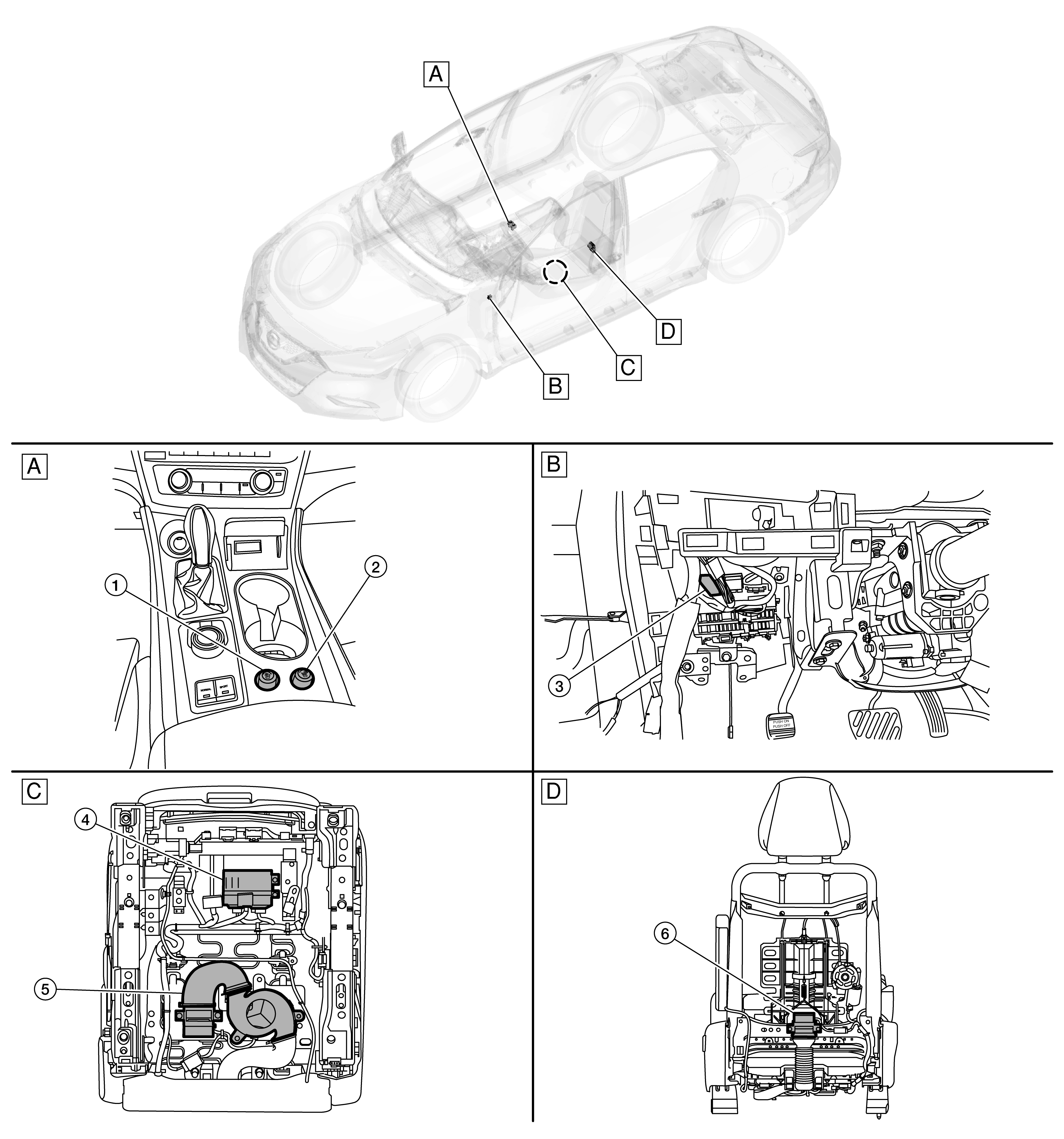

A.	Front of center console	B.	Instrument panel LH (view with instrument panel removed)	C.	Driver seat bottom (view with seat removed)
D.	Driver seat back (view with seat and seat back finisher removed)

No.	Component	Function
1.	Climate controlled seat switch (driver seat)	Refer to Climate Controlled Seat Switch .
2.	Climate controlled seat switch (passenger seat)	Refer to Climate Controlled Seat Switch .
3.	Climate controlled seat relay	Supplies power to the climate controlled seat control unit in accordance with the key switch position that is ON or OFF
4.	Climate controlled seat control unit	Refer to Climate Controlled Seat Control Unit .
5.	Climate controlled seat blower motor assembly	Refer to Climate Controlled Seat Blower Motor Assembly .
6.	Seatback thermal electric device	Refer to Seat Back Thermal Electric Device .
