Removal and Installation: Seatback
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Removal

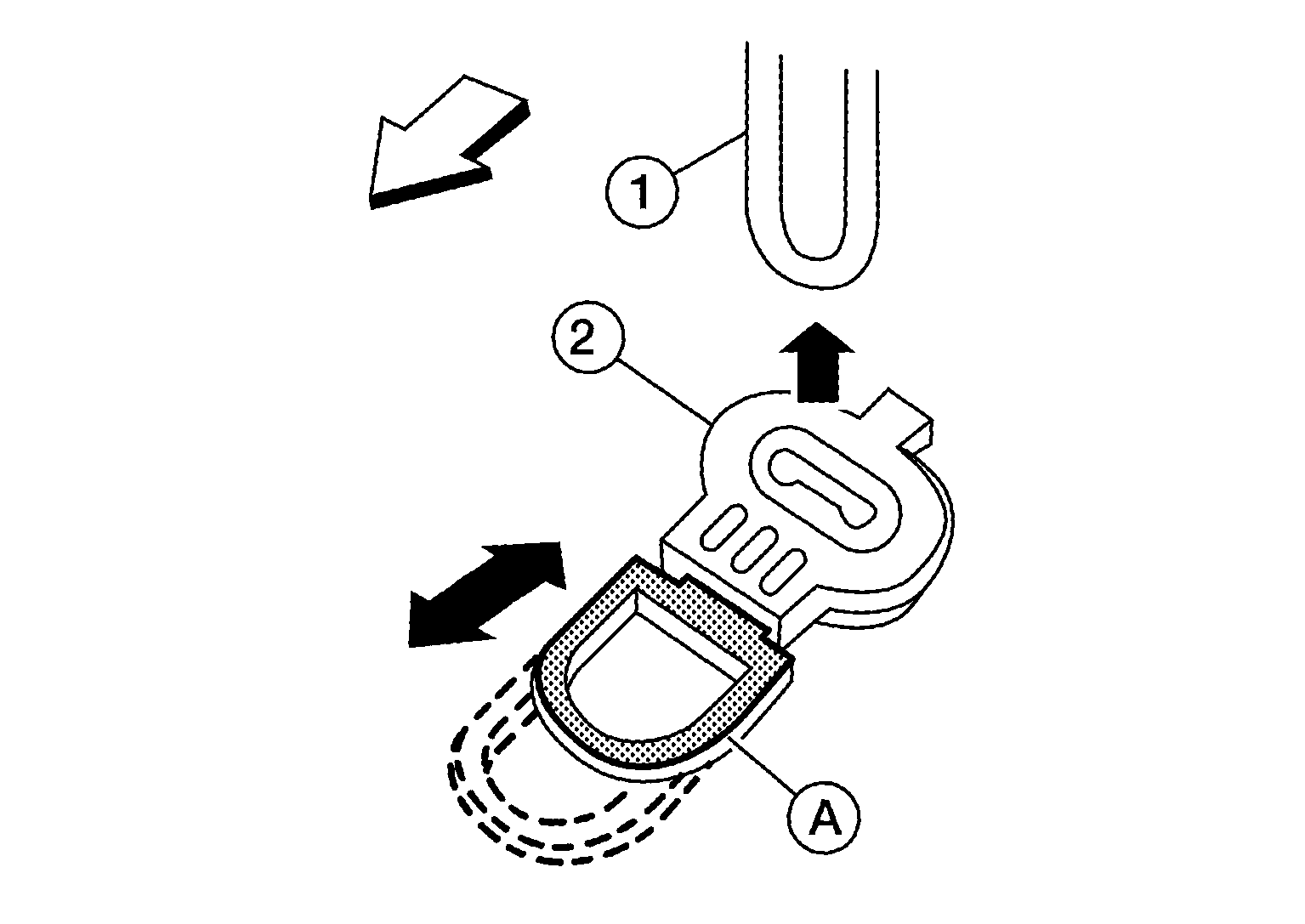

- Locate the seat cushion lock (2) at the front bottom of the seat cushion assembly (one for each side). Pull the release lever (A) forward and lift the seat cushion assembly upward to release the seat cushion wire (1) from the seat cushion lock (2).
: Front
- Then pull the seat cushion assembly forward and up to remove.
- With the seatbacks (LH/RH) locked in the upright position, perform the following step.
- Fold seatbacks (LH/RH) forward.

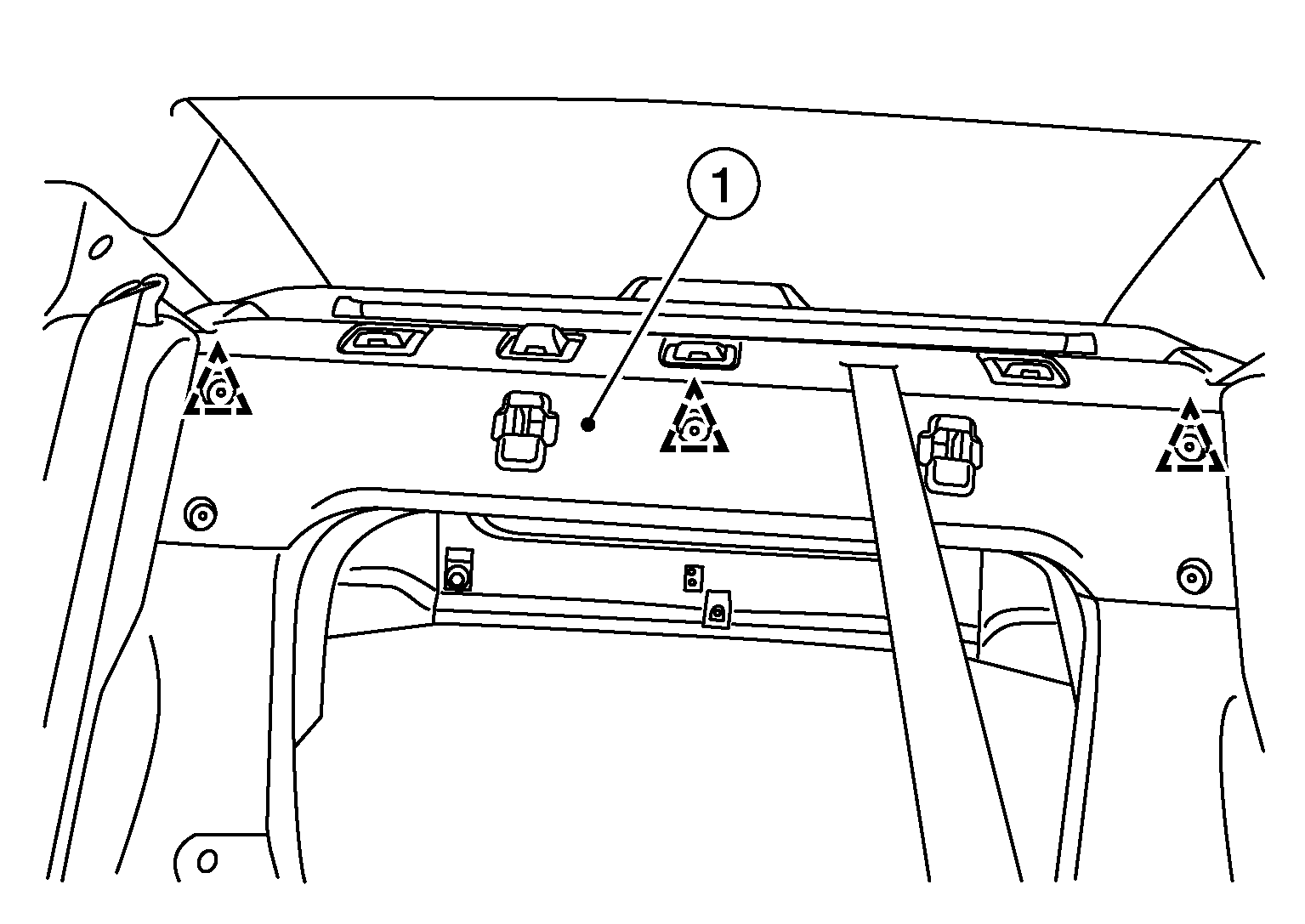

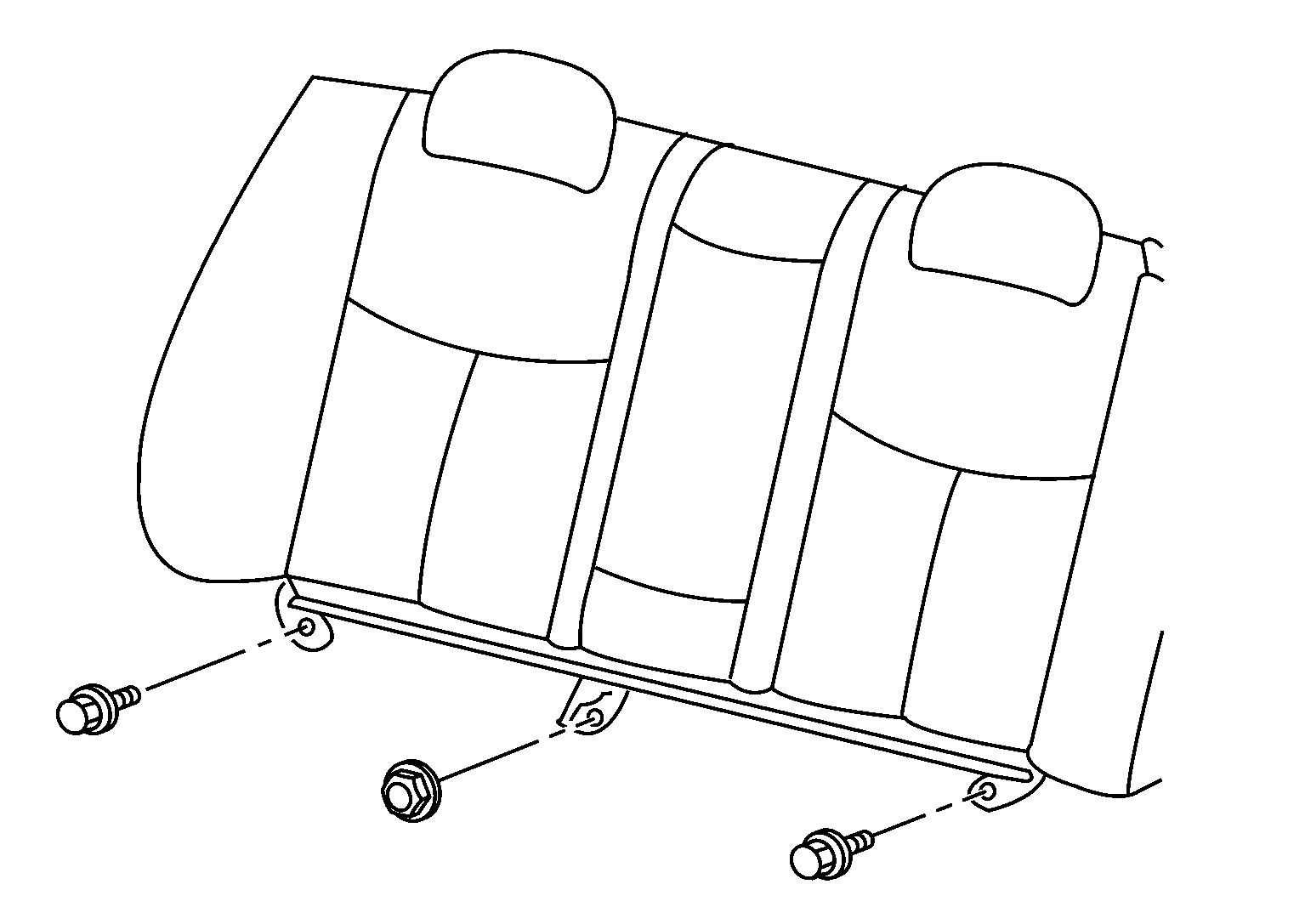

- Release clips and route seat belt buckle through the seatback assembly (1), then remove seatback assembly (1).
: Clip
Installation
Installation is in the reverse order of removal.
NOTE:

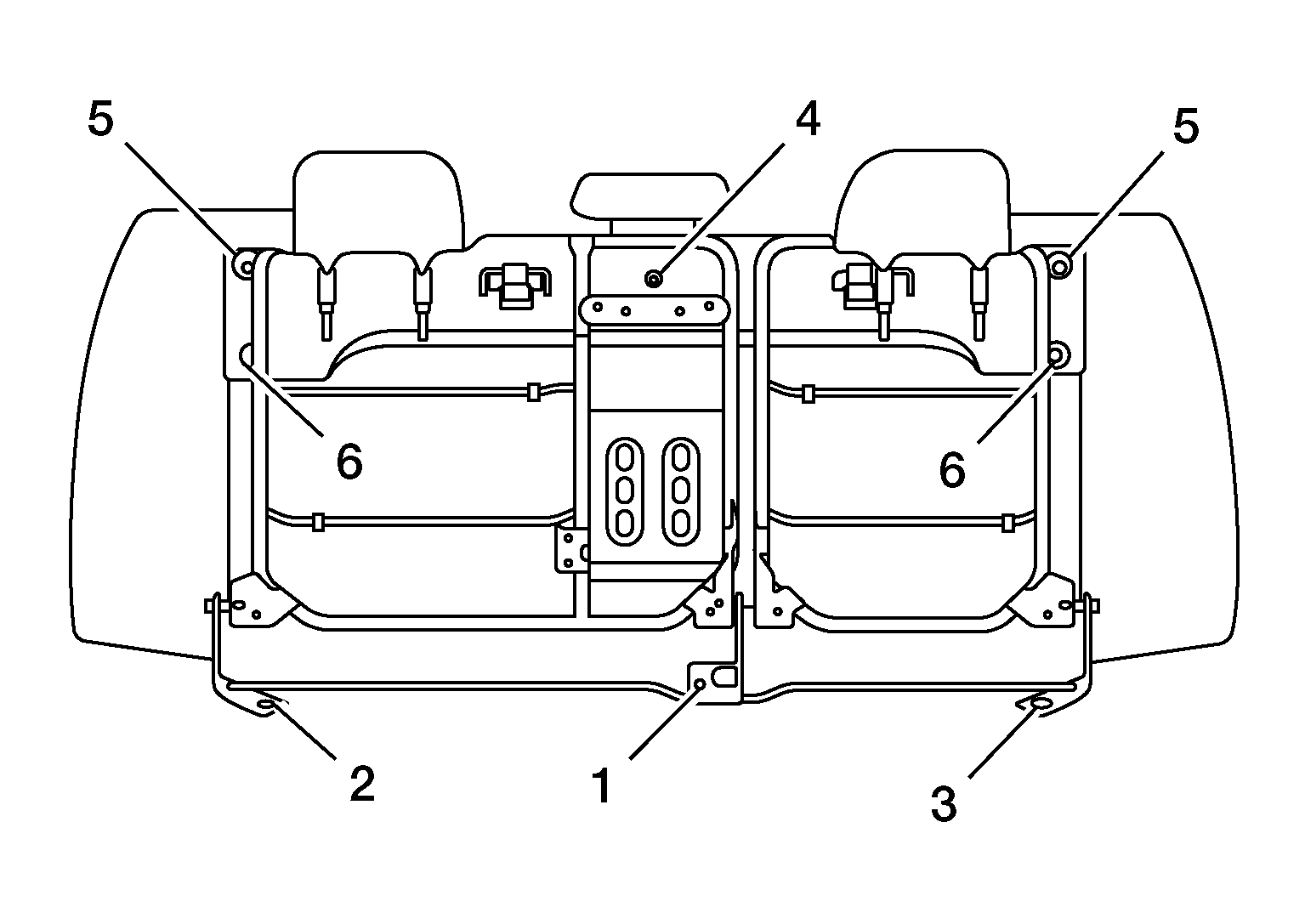

When installing seatback assembly, note the following installation sequence.
|
Step 1 |
M10 nut |
No. 1 |
Temporarily tighten |
|
Step 2 |
M8 bolts |
No. 2, 3 |
Temporarily tighten |
|
Step 3 |
Clip |
No. 4, 5, 6 |
Install |
|
Step 4 |
M10 nut |
No. 1 |
49 N.m (5.0 kg-m, 36 ft-lb) |
|
Step 5 |
M8 bolts |
No. 2, 3 |
21.05 N.m (2.1 kg-m, 16 ft-lb) |
