Removal and Installation - Seatback Latch Assembly: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear parcel shelf finisher. Refer to Removal and Installation .

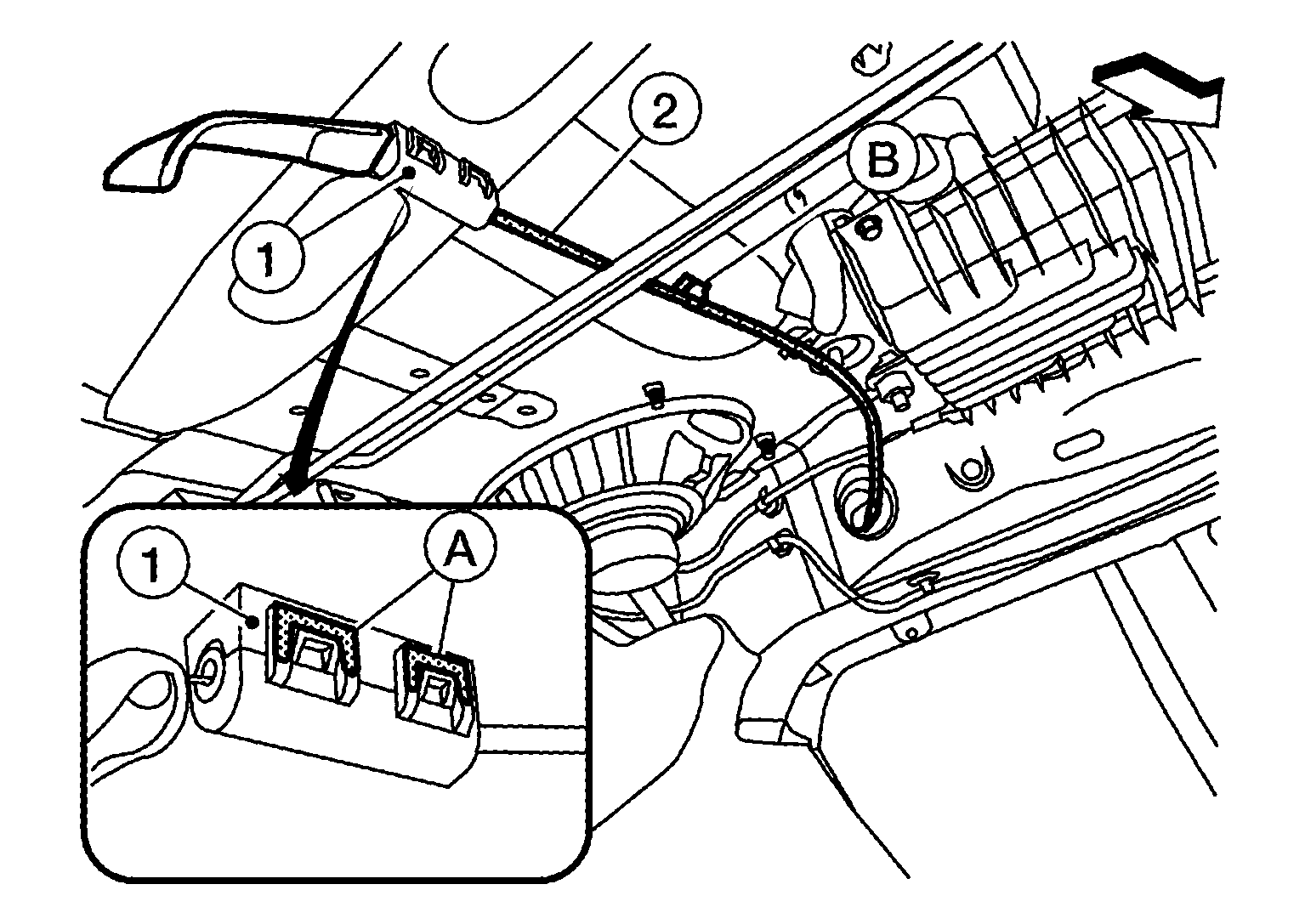

  2. From trunk area, release pawls (A) to open cable guide (1).
    GNSDB118447Courtesy of NISSAN NORTH AMERICA, INC.
  3. Unclip latch cable (2) at location (B).

    SYMBOL : Front

    NOTE: LH shown above; RH similar.
  4. Remove two seatback latch assembly bolts and the seatback latch assembly.
