Removal and Installation - Seatback Hinge: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seatback assembly. Refer to Removal and Installation .

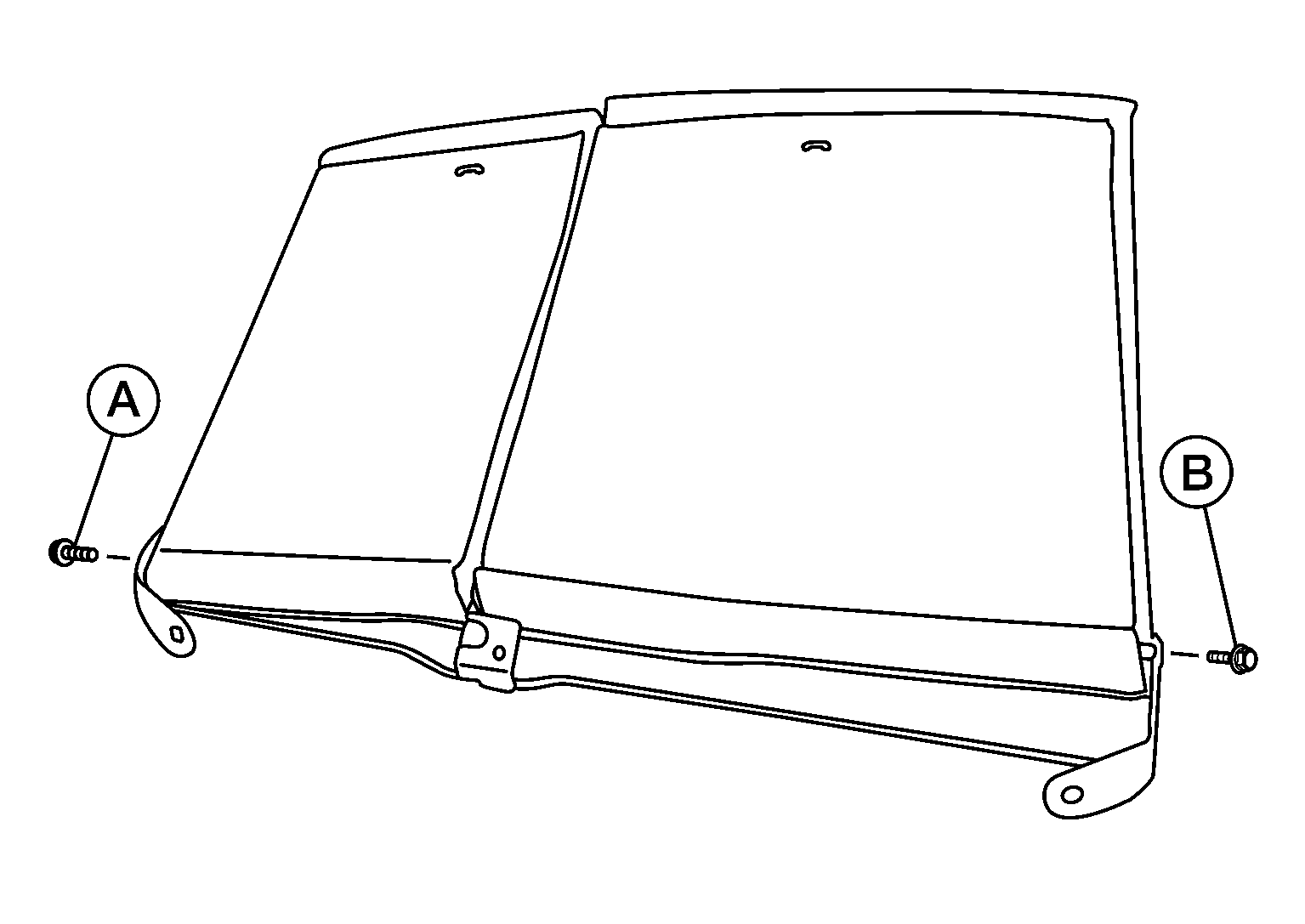

Remove rear seatback hinge assembly bolts (A/B).

Courtesy of NISSAN NORTH AMERICA, INC.

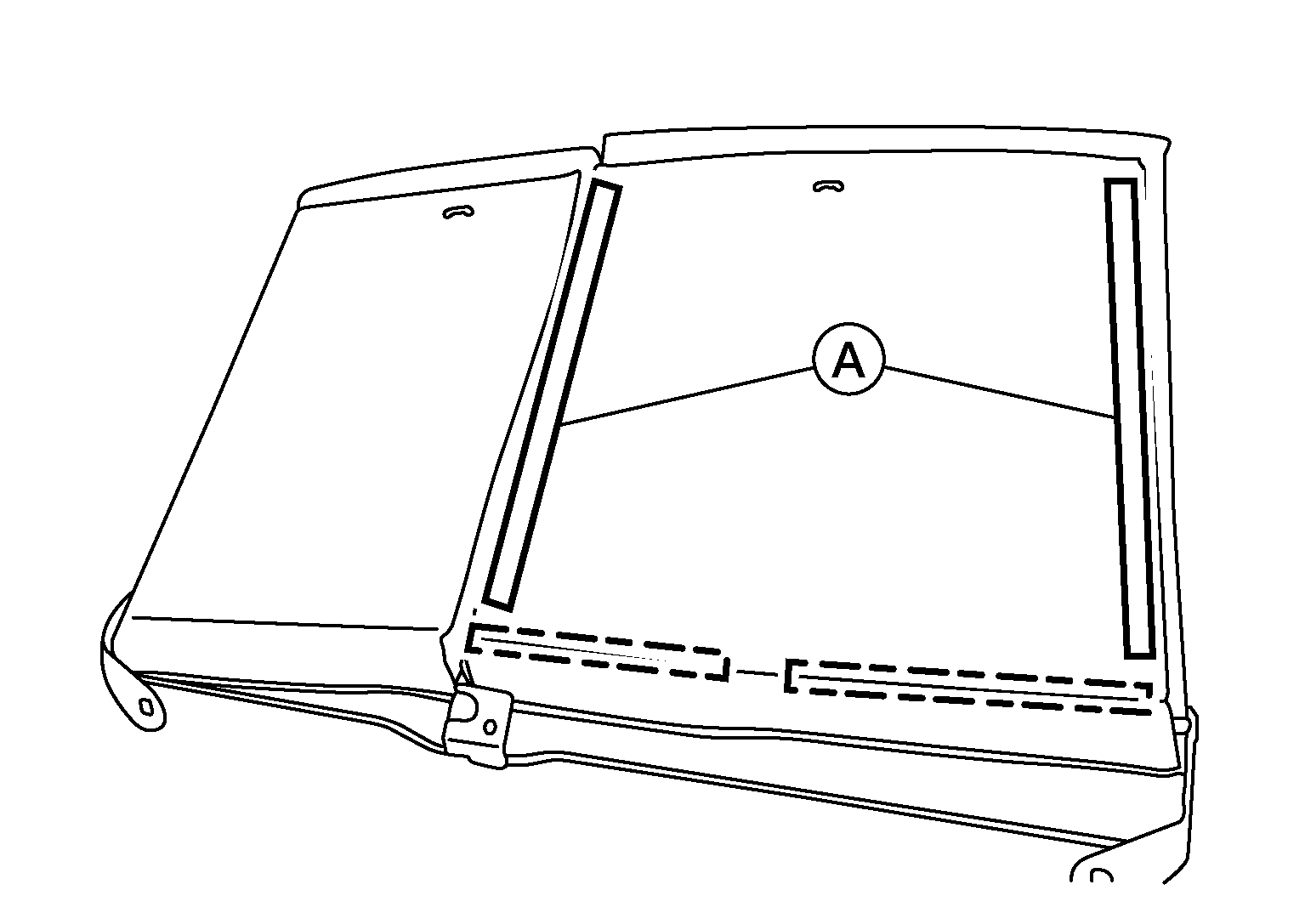

Release rear RH seatback flap J-hooks, then release hook and loop fasteners (A) then place seatback flap aside.

Courtesy of NISSAN NORTH AMERICA, INC.

: J-hook
Release J-hooks (A) from seatback board (1).

Courtesy of NISSAN NORTH AMERICA, INC.

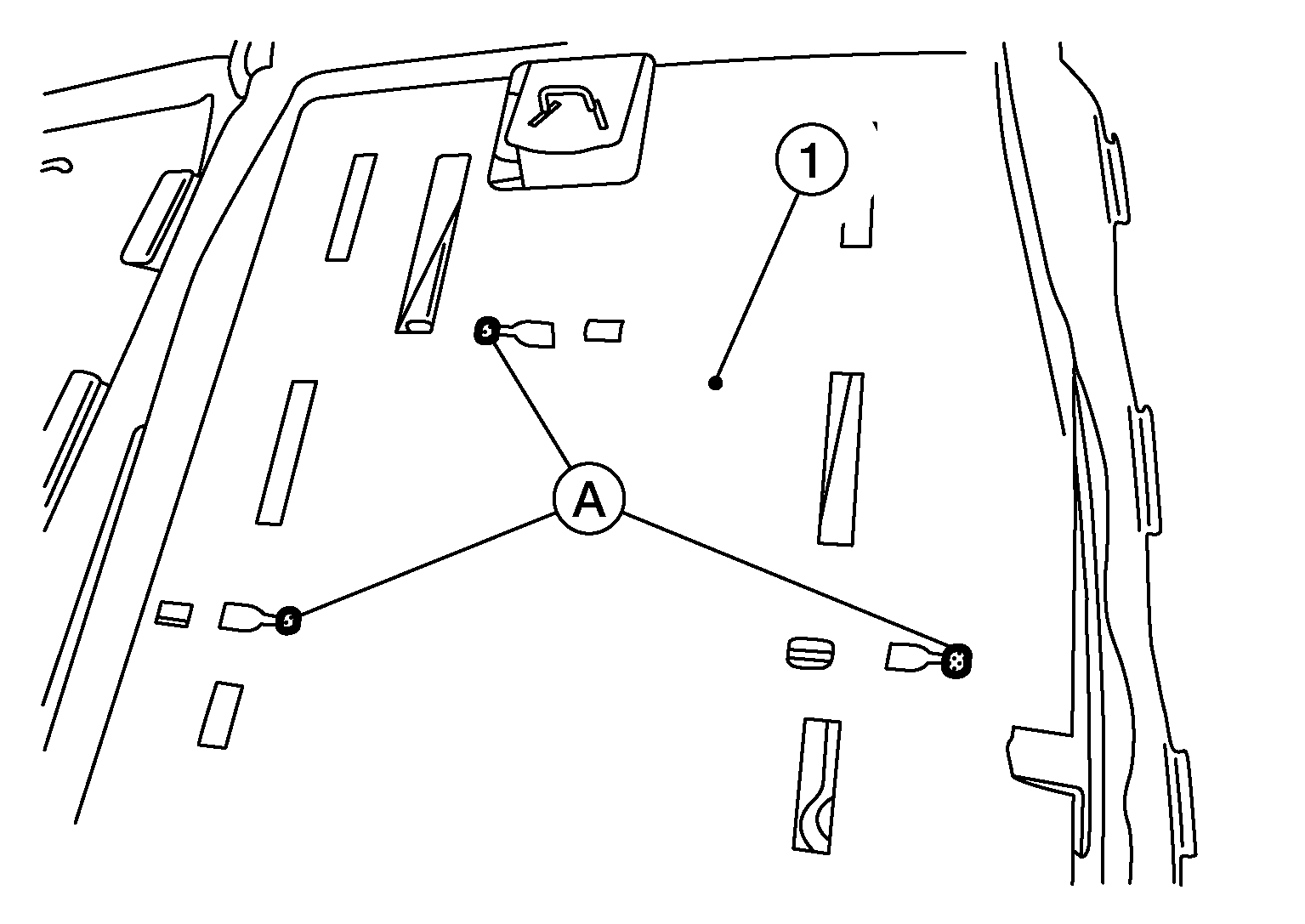

Release clips (A), then remove seatback board (1) from rear seatback frame (RH).

Courtesy of NISSAN NORTH AMERICA, INC.

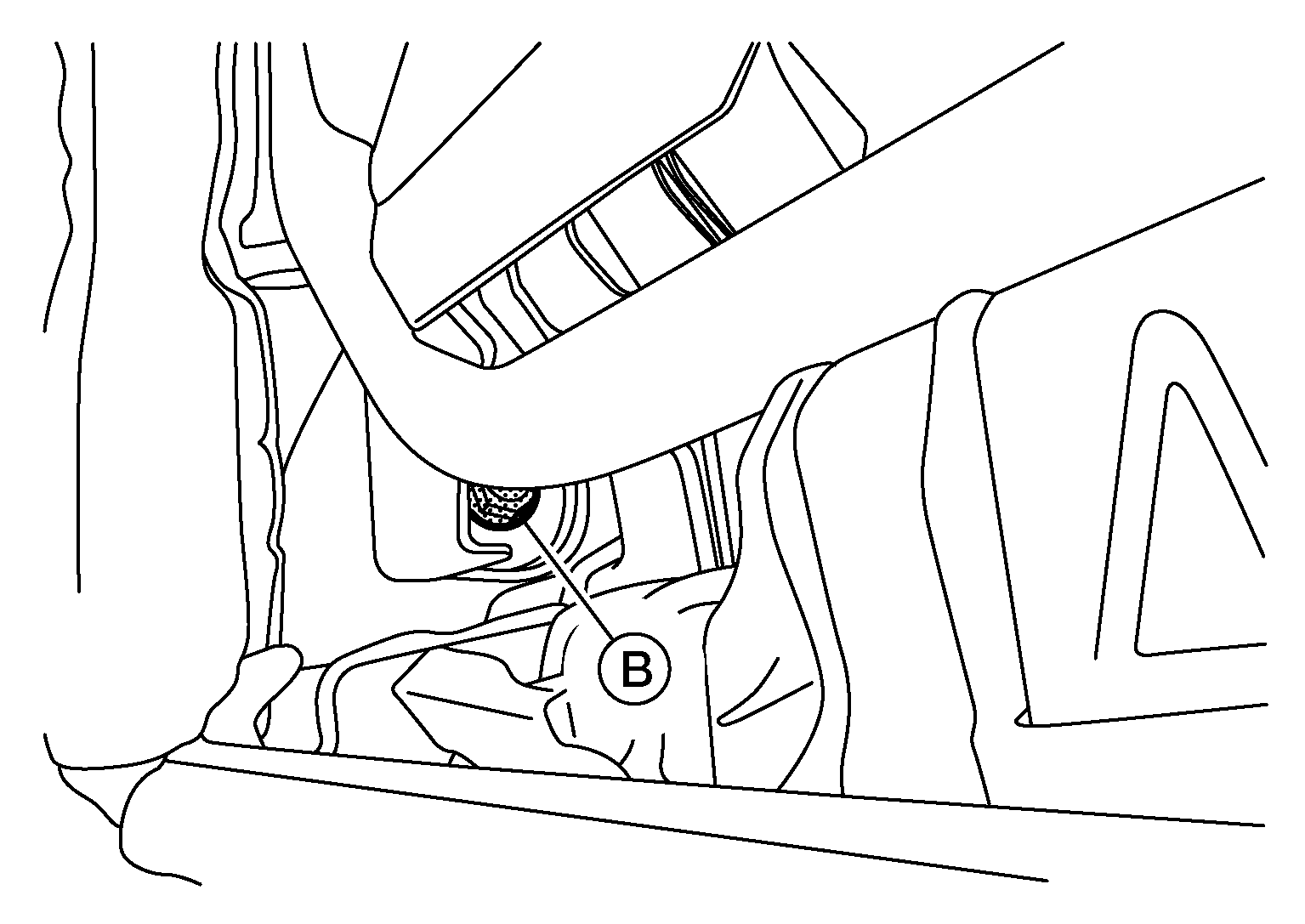

Remove nut (B), then separate rear seatbacks (LH/RH) from rear seat hinge.

Courtesy of NISSAN NORTH AMERICA, INC.
