Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
  • When removing or installing seat trim, handle it carefully to keep dirt out and to avoid damage.
  • When checking power seat circuit for continuity using a circuit tester, do not confuse its connector with side air bag module connector. Such an error may cause air bag module to deploy.
  • Do not drop, tilt, or bump side air bag module while installing seat. Always handle it with care.
  • After front side air bag module inflates, front seatback assembly must be replaced.
  • When removing and installing seat, use shop cloths to protect components from damage.
  • Before removing front seat, turn ignition switch OFF, disconnect both battery cables then wait at least three minutes.
  1. Slide seat to the full rearward position.
  2. Disconnect the battery. Refer to Battery Disconnect .
  3. Disconnect harness connectors from front seat assembly.
  4. Remove front seat front bolts using the following procedure:

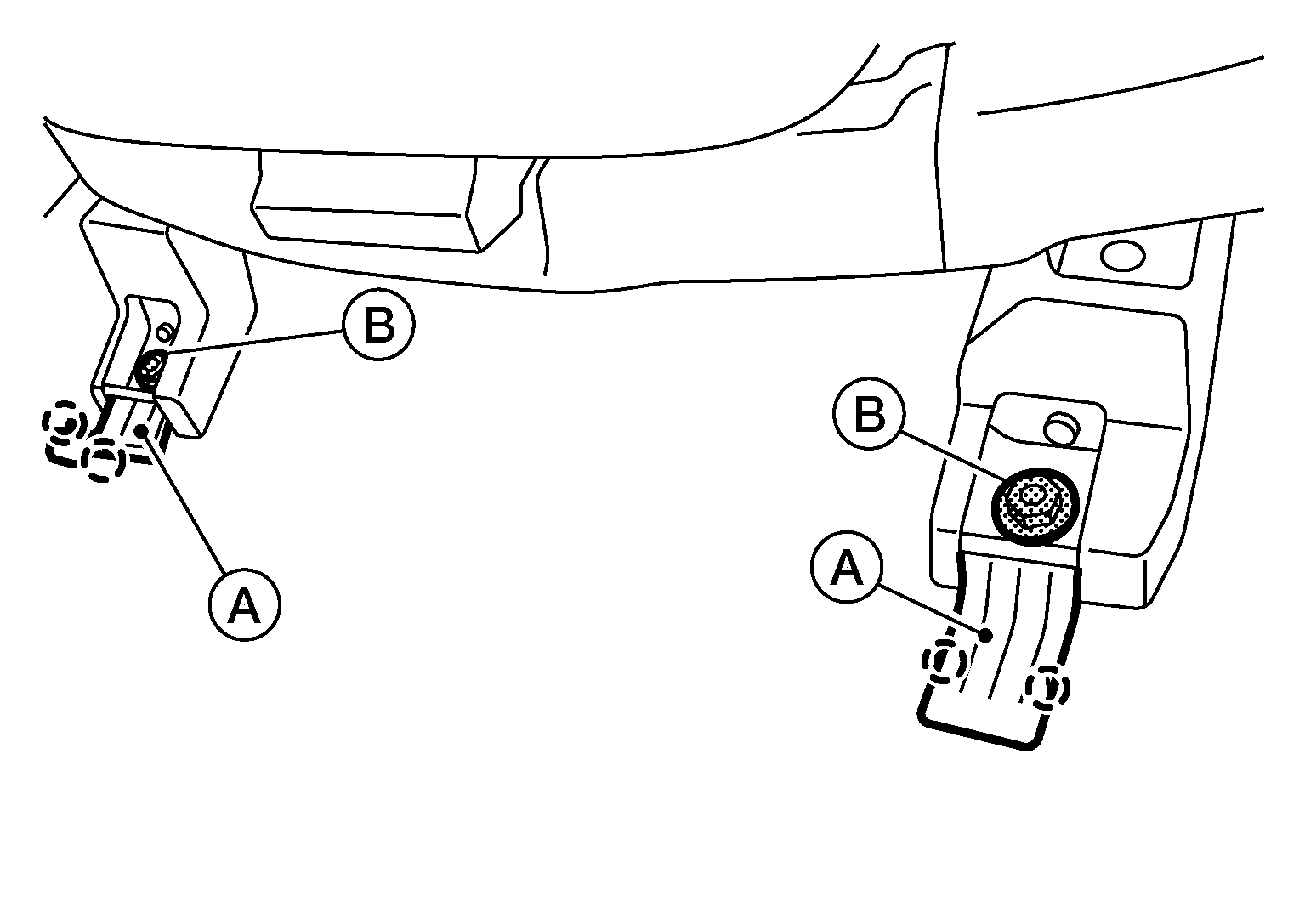

    1. Release pawls and position front leg finisher covers (A) as shown below.
      GNSALJIA1772Z-772Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl
    2. Remove front seat front bolts (B).
  5. Connect negative and positive battery terminals, then slide seat to the full forward position. Refer to Battery Disconnect .
  6. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Battery Disconnect .
  7. Remove front seat rear bolts using the following procedure:

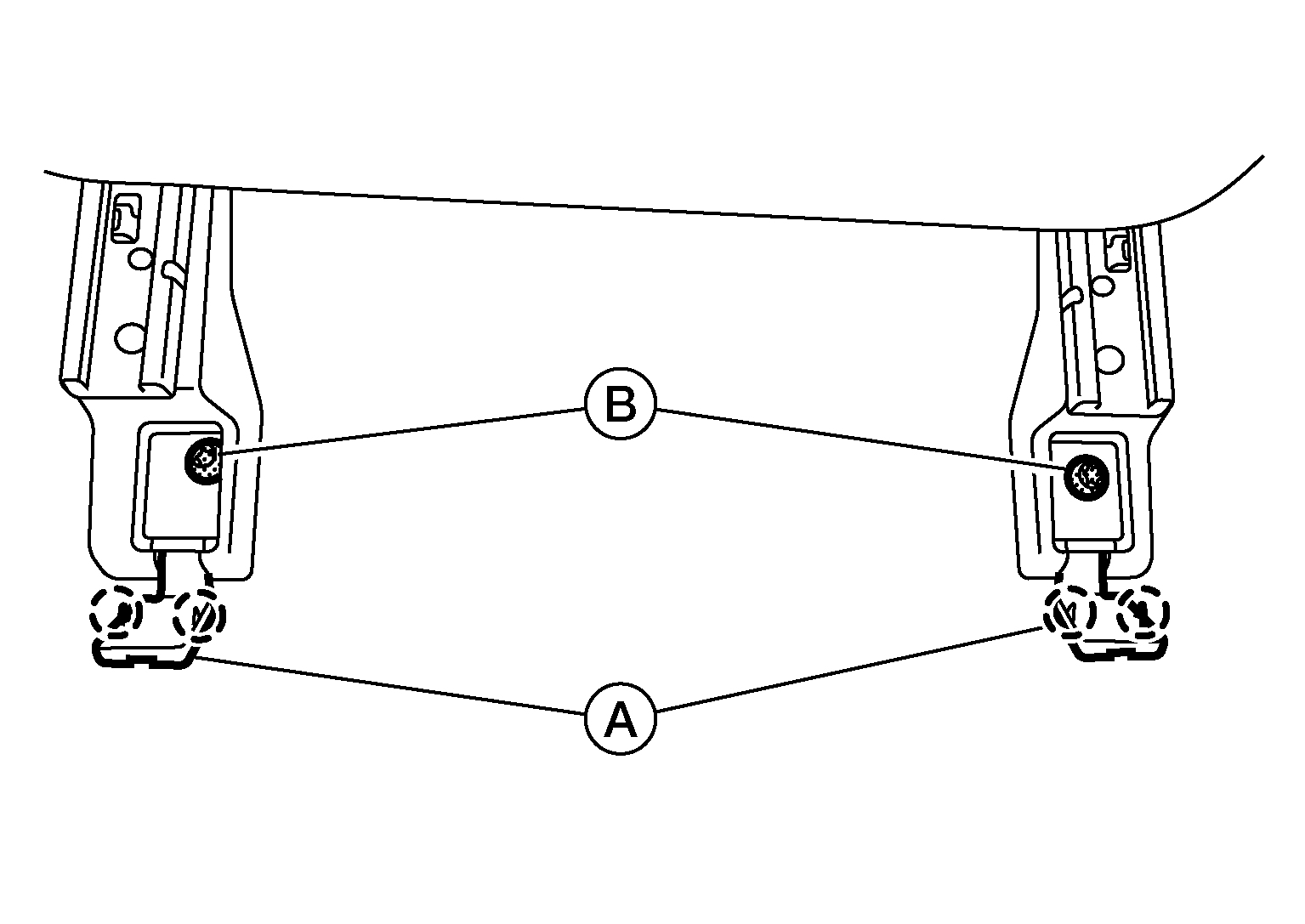

    1. Release pawls and position rear leg finisher covers (A) as shown below.
      GNSALJIA1773Z-773Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Pawl
    2. Remove front seat rear bolts (B).
  8. Remove front seat from the vehicle.
