Power Seat Switch: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown below, RH similar.
  1. Remove front seat assembly. Refer to Removal and Installation .
  2. Remove front finisher screws (B), release pawls and remove seat front finisher (1).
    GNSALHIA0671Z-671Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Harness connector

    SYMBOL

    : Pawl
  3. Remove the seat cushion outer finisher (LH) using the following procedure:

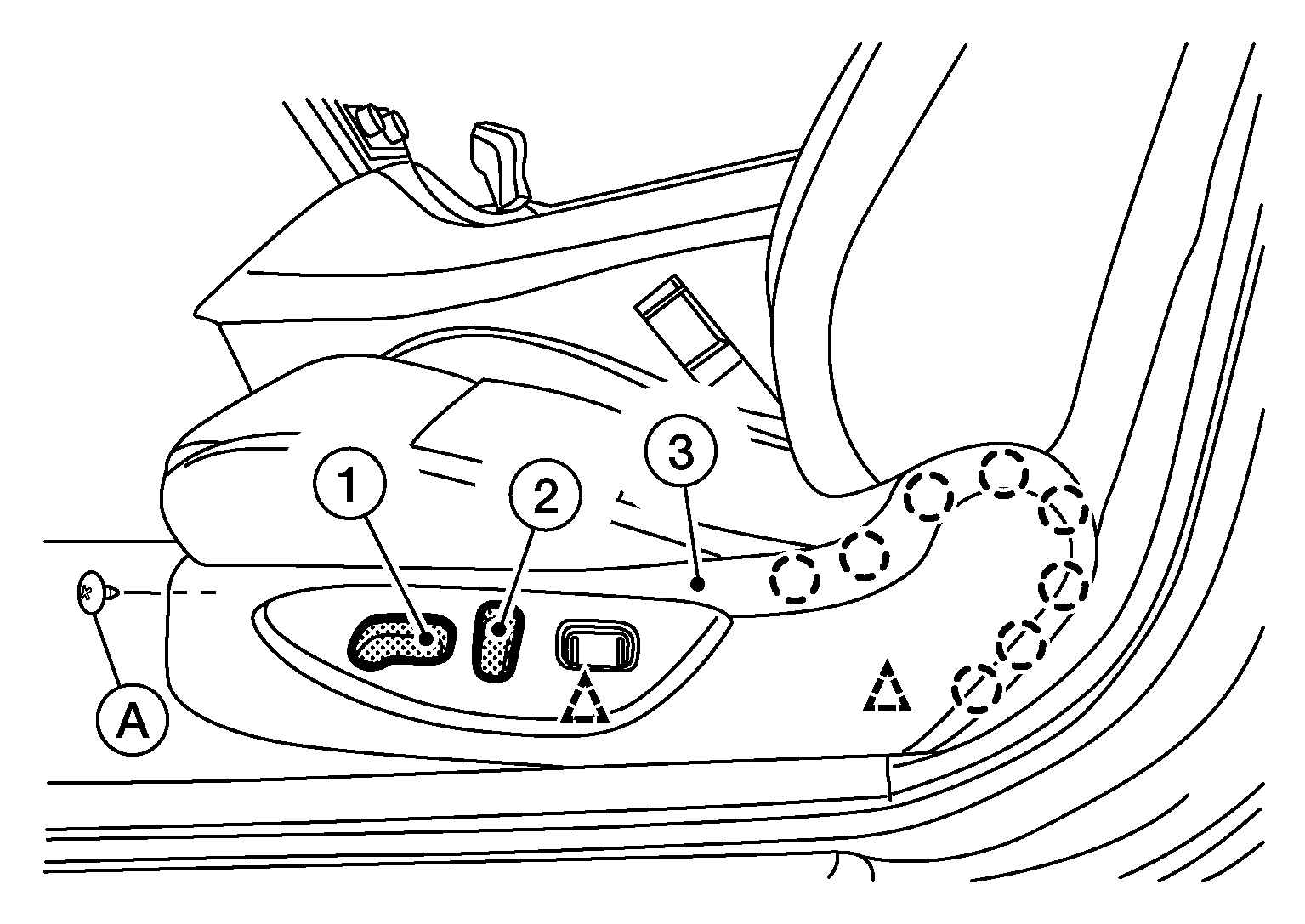

    1. Using a suitable tool, remove seat slide knob (1) and seat recline knob (2).
      GNSAWJIA1876Z-876Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove screw (A), then release clips and pawls and remove seat cushion outer finisher [LH (3)].

      SYMBOL

      : Pawl

      SYMBOL

      : Clip
  4. Release pawls and remove power seat switch, then disconnect harness connector from power seat switch.
    GNSAWJIA1865Z-865Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawls
