Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

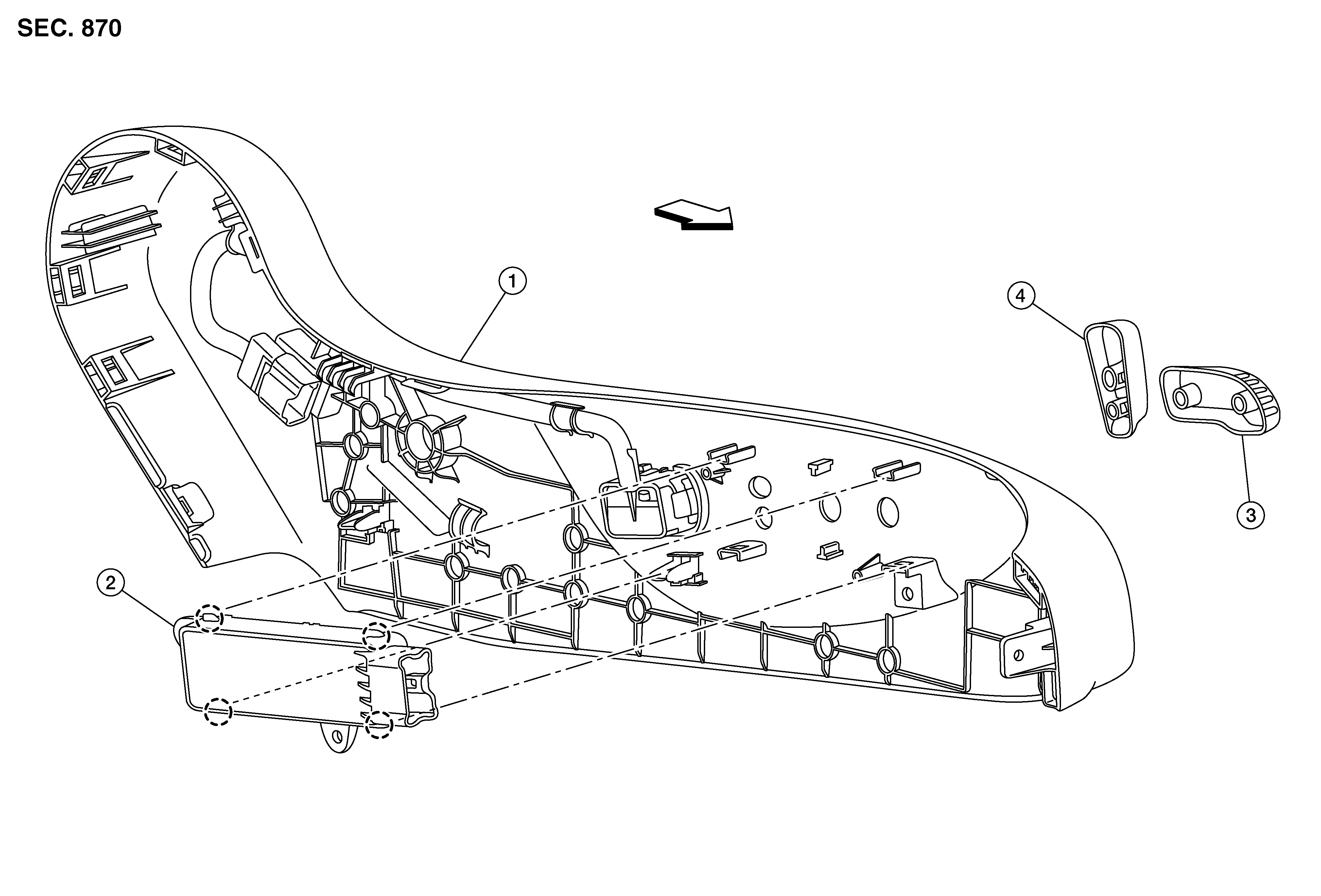

GNSALJIA1815Z-815Courtesy of NISSAN NORTH AMERICA, INC.

1.

Seat cushion outer finisher

2.

Power seat switch

3.

Slide knob

4.

Recline knob

SYMBOL

Pawl

SYMBOL

Front
