Lumbar Support Switch: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat assembly. Refer to Removal and Installation .
  2. Remove front finisher screws (B), release pawls and remove seat front finisher (1).
    GNSALHIA0671Z-671Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Harness connector

    SYMBOL

    : Pawl

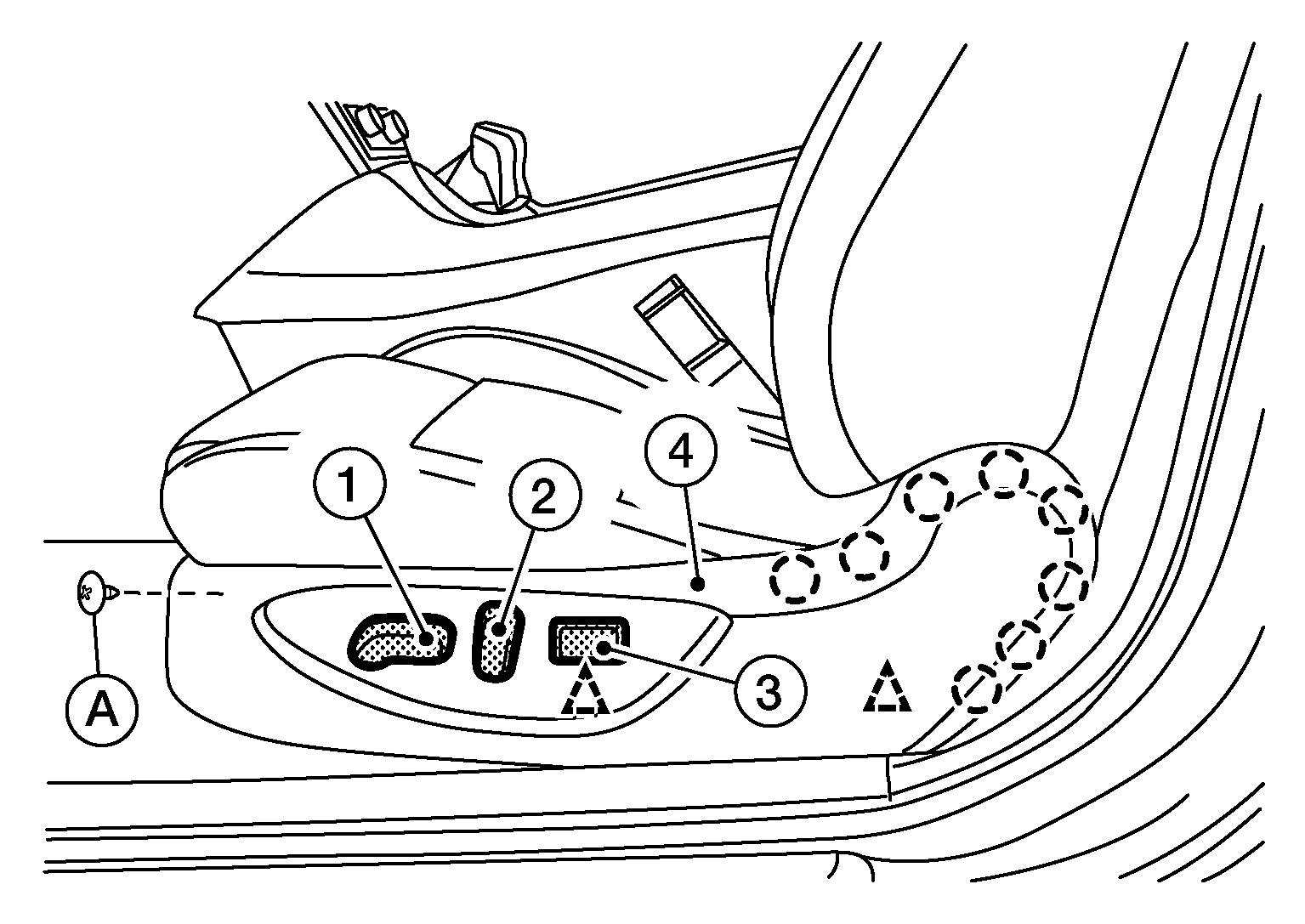

  3. Remove the seat cushion outer finisher (LH) from the front driver seat using the following procedure:
    1. Using a suitable tool remove seat slide knob (1) and seat recline knob (2).
      GNSAWJIA1877Z-877Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove screw (A), then release clips and pawls and remove seat cushion outer finisher [LH (4)].

      (3)

      : Lumbar support switch

      SYMBOL

      : Pawl

      SYMBOL

      : Clip

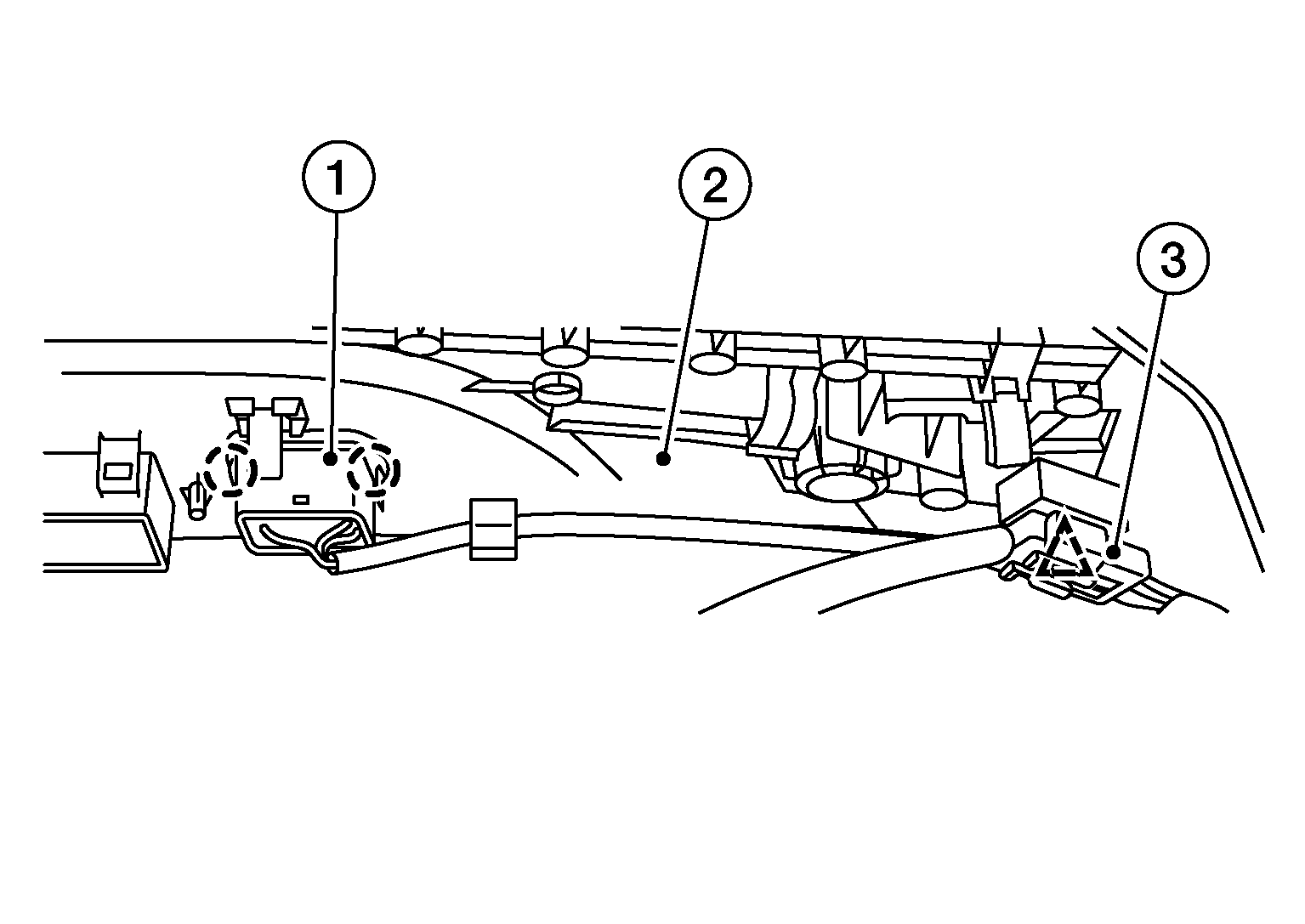

  4. Disconnect the harness connector (3) from the lumbar support switch (1).
    GNSALJIA1820Z-820Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release the harness connector clip, then release pawls and remove lumbar support switch (1) through front of seat cushion outer finisher [LH(2)].

    SYMBOL

    : Pawl

    SYMBOL

    : Clip
