Section 20 (Seat)
>>
Removal And Installation
>>
Front Seat
>>
Lumbar Support Switch
>>

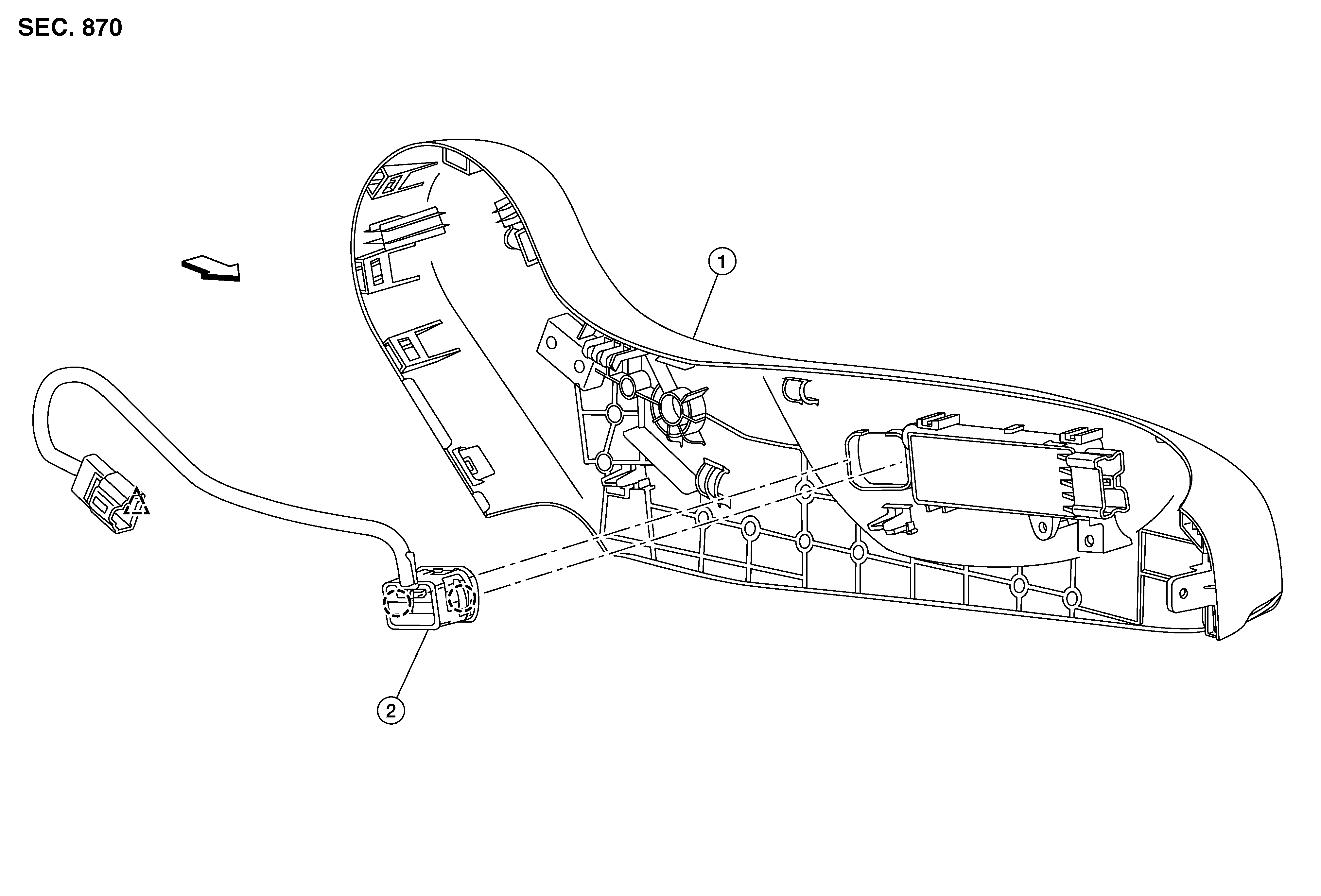

Exploded View
Exploded View
WARNING:
This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Seat cushion outer finisher
2.
Lumbar support switch
Pawl
Clip
Front
