Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

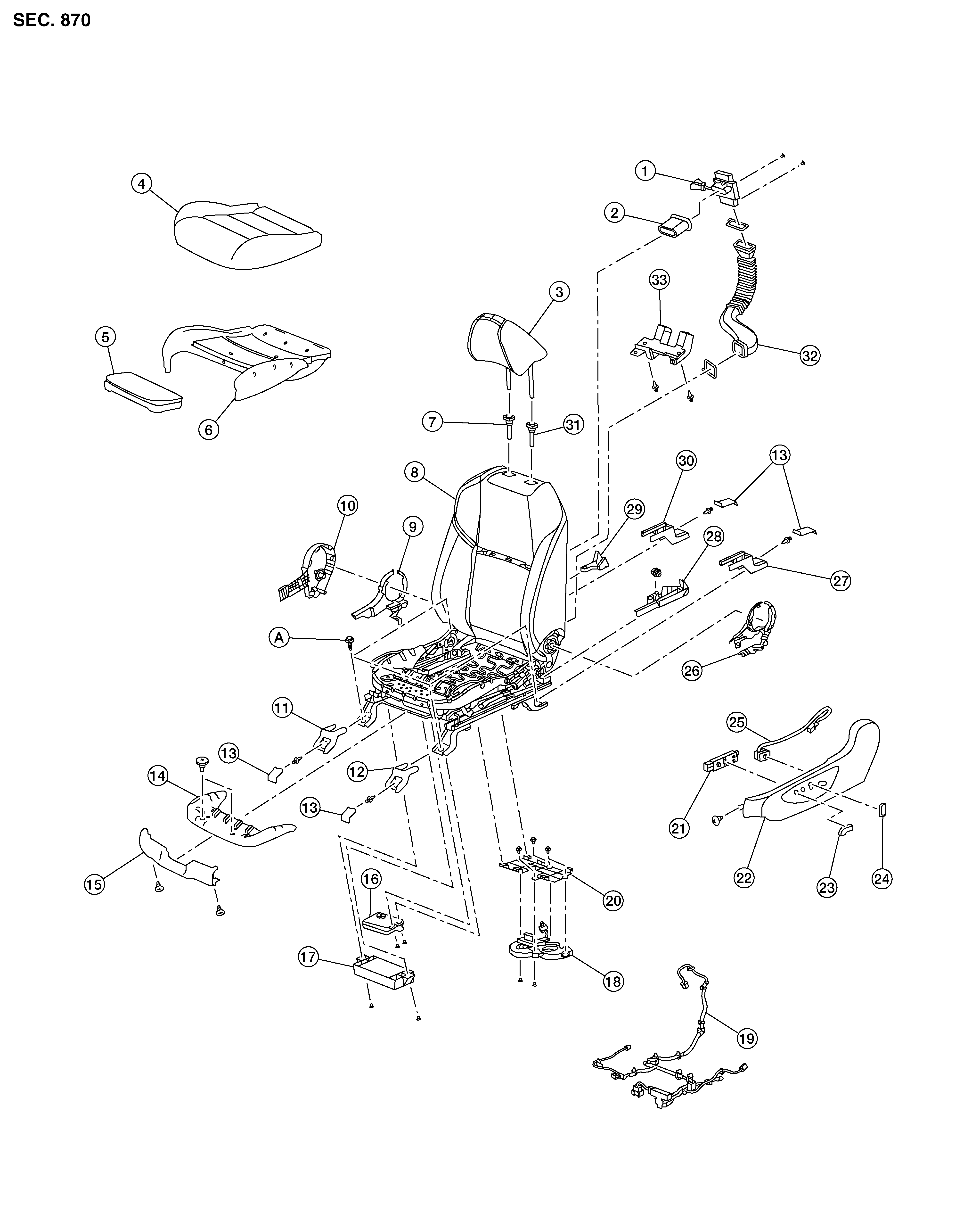

Driver Seat - With Climate Controlled Seats

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback thermal electric device	2.	Thermal electric device nozzle	3.	Headrest
4.	Seat cushion trim	5.	Thigh extension pad	6.	Seat cushion pad
7.	Headrest holder (free)	8.	Seat frame assembly	9.	Seat cushion inner finisher (RH)
10.	Seat cushion outer finisher (RH)	11.	Front leg finisher (inner)	12.	Front leg finisher (outer)
13.	Front seat leg finisher cover	14.	Thigh extension bracket	15.	Seat cushion front finisher
16.	Climate controlled seat control unit	17.	Driver seat control unit	18.	Climate controlled seat blower assembly
19.	Seat harness	20.	Climate controlled seat blower assembly bracket	21.	Power seat switch
22.	Seat cushion outer finisher (RH)	23.	Seat slide knob	24.	Seat recline knob
25.	Lumbar support switch	26.	Seat cushion inner finisher (LH)	27.	Rear leg finisher (outer)
28.	Slide finisher outer (LH)	29.	Seat finisher inner (RH)	30.	Rear leg finisher (inner)
31.	Headrest holder (locked)	32.	Blower duct	33.	Blower duct guide
A.	Refer to INSTALLATION.

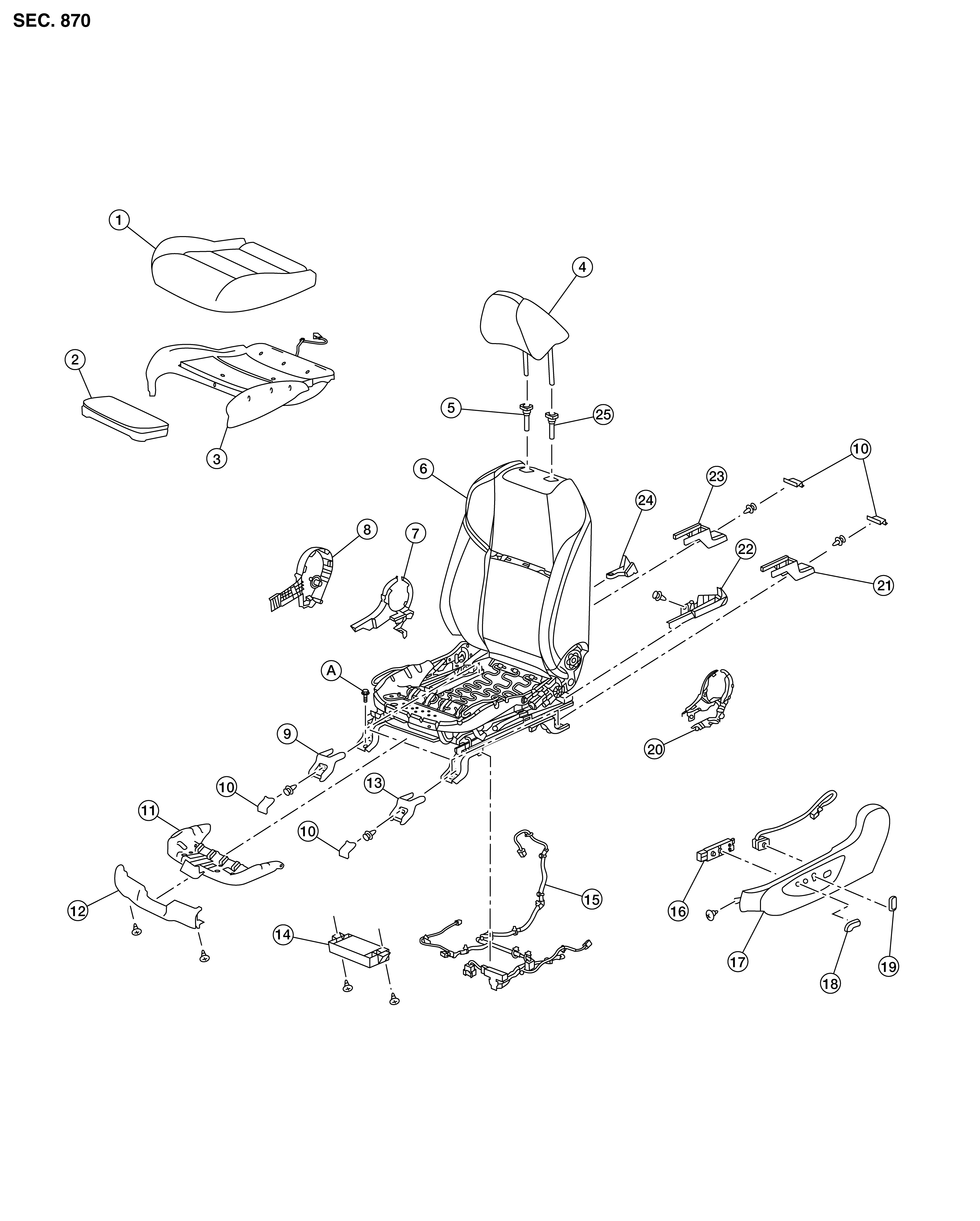

Driver Seat - With Heated Seats

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat cushion trim	2.	Thigh extension pad	3.	Seat cushion pad (with heater)
4.	Headrest	5.	Headrest holder (free)	6.	Seat frame assembly
7.	Seat cushion inner finisher (RH)	8.	Seat cushion outer finisher (RH)	9.	Front leg finisher (inner)
10.	Front seat leg finisher cover	11.	Thigh extension bracket	12.	Seat cushion front finisher
13.	Front leg finisher (outer)	14.	Driver seat control unit	15.	Seat harness
16.	Power seat switch	17.	Seat cushion outer finisher (LH)	18.	Seat slide knob
19.	Seat recline knob	20.	Seat cushion inner finisher (LH)	21.	Rear leg finisher (outer)
22.	Slide finisher outer (LH)	23.	Rear leg finisher (inner)	24.	Slide finisher inner (RH)
25.	Headrest holder (locked)	A.	Refer to INSTALLATION.

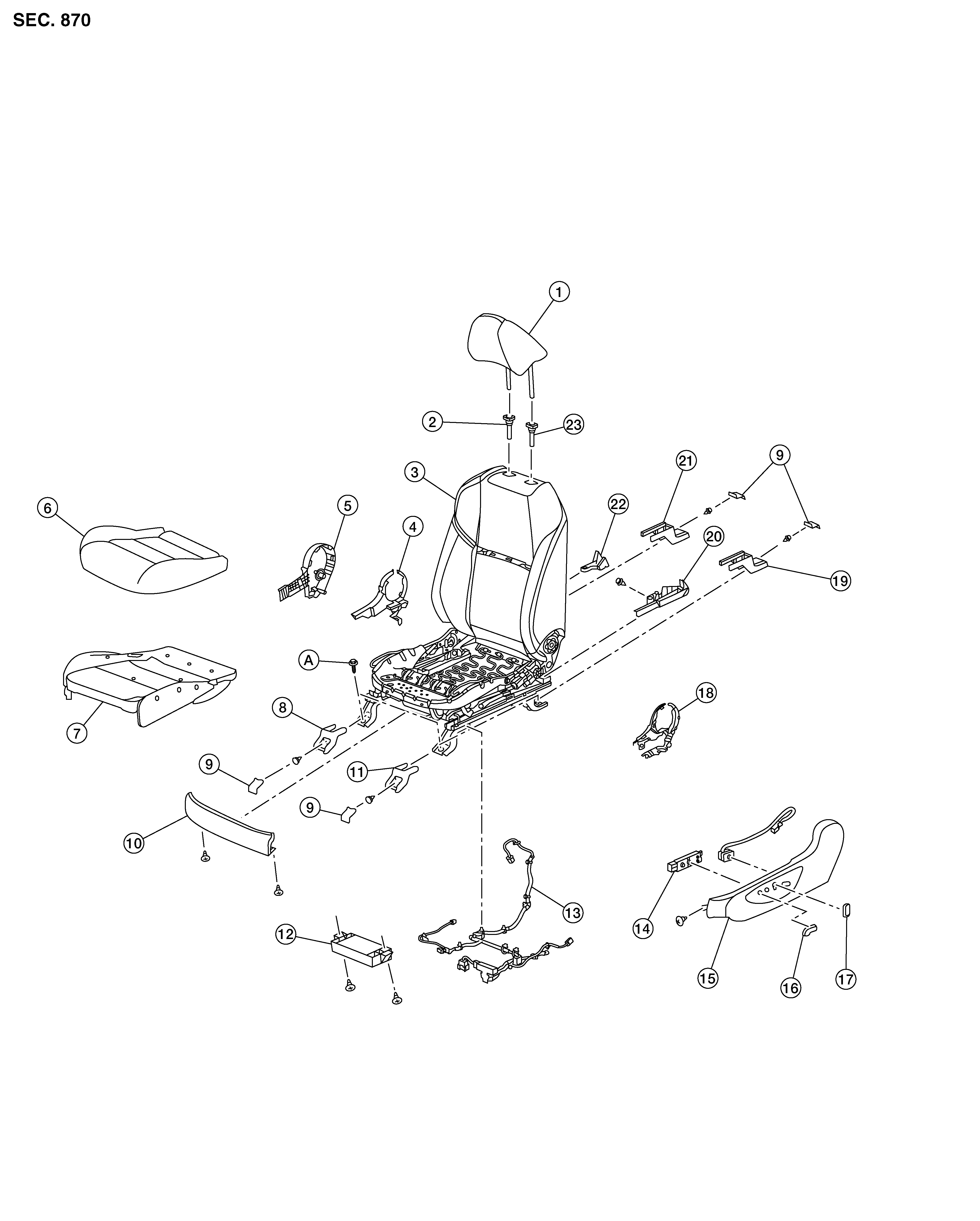

Driver Seat - Without Heated Seats

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (free)	3.	Seat frame assembly
4.	Seat cushion inner finisher (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat cushion trim
7.	Seat cushion pad	8.	Front leg finisher (outer)	9.	Front seat leg finisher cover
10.	Seat cushion front finisher	11.	Front leg finisher (inner)	12.	Driver seat control unit
13.	Seat harness	14.	Power seat switch	15.	Seat cushion outer finisher (LH)
16.	Seat slide knob	17.	Seat recline knob	18.	Lumbar support switch
19.	Rear leg finisher (outer)	20.	Slide finisher outer (LH)	21.	Rear leg finisher (inner)
22.	Slide finisher inner (RH)	23.	Headrest holder (locked)	A.	Refer to INSTALLATION.

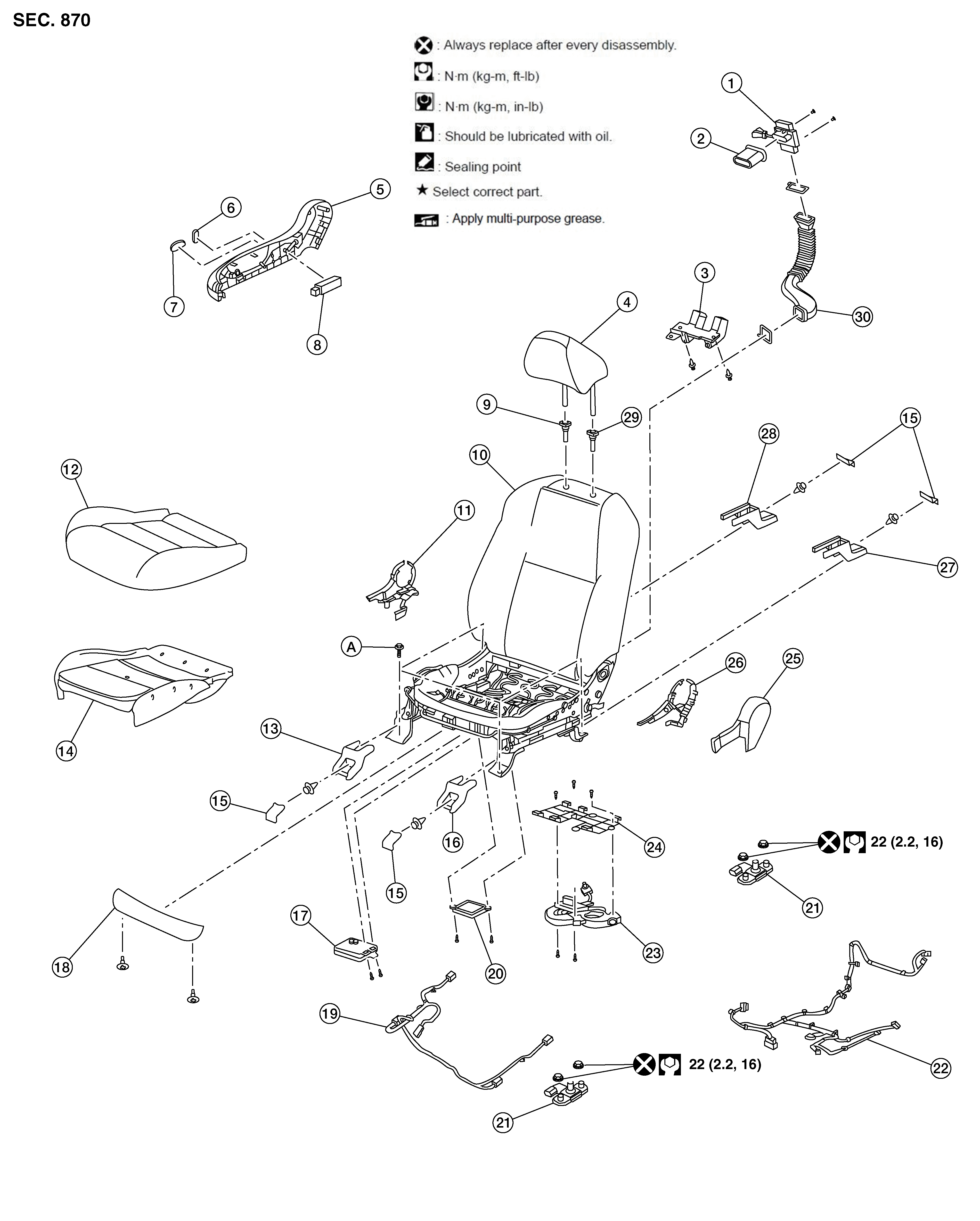

Passenger Seat - With Climate Controlled Seat

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback thermal electric device	2.	Thermal electric device nozzle	3.	Blower duct guide
4.	Headrest	5.	Seat cushion outer finisher (RH)	6.	Seat recline knob
7.	Seat slide knob	8.	Power seat switch	9.	Headrest holder (free)
10.	Seat frame assembly	11.	Seat cushion inner finisher (RH)	12.	Seat cushion trim
13.	Front leg finisher (outer)	14.	Seat cushion pad	15.	Front seat leg finisher cover
16	Front leg finisher (inner)	17.	Climate controlled seat control unit	18.	Seat cushion front finisher
19.	Occupant classification system seat harness	20.	Occupant classification system control unit	21.	Occupant classification system sensor
22.	Seat harness	23.	Climate controlled seat blower assembly	24.	Climate controlled seat blower assembly bracket
25.	Seat cushion outer finisher (LH)	26.	Seat cushion inner finisher (LH)	27.	Rear leg finisher (inner)
28.	Rear leg finisher (outer)	29.	Headrest holder (locked)	30.	Blower duct
A.	Refer to INSTALLATION.

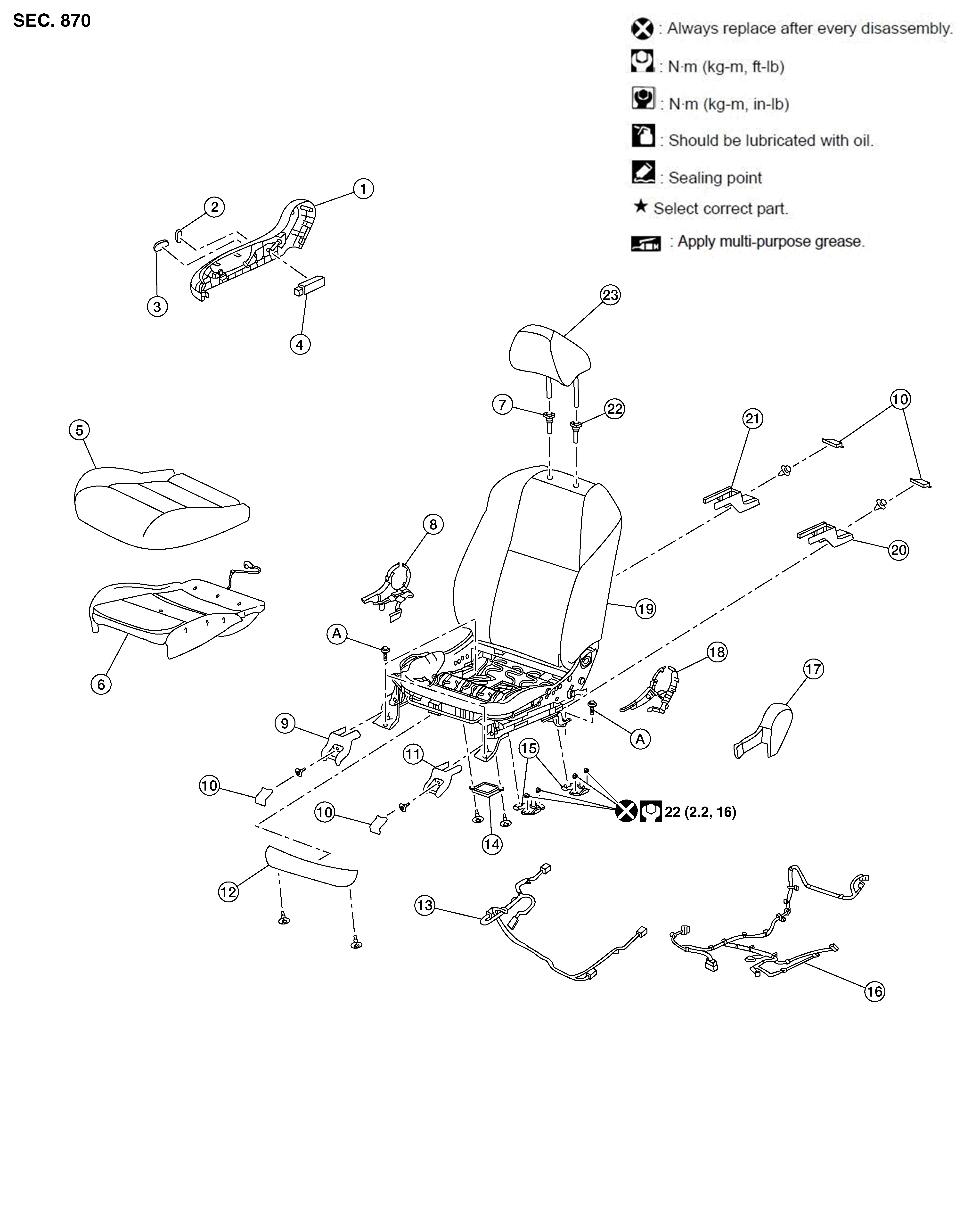

Passenger Seat - With Heated Seats

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat cushion outer finisher (RH)	2.	Seat recline knob	3.	Seat slide knob
4.	Power seat switch	5.	Seat cushion trim	6.	Seat cushion pad (with heater)
7.	Headrest holder (free)	8.	Seat cushion inner finisher (RH)	9.	Front leg finisher (outer)
10.	Front seat leg finisher cover	11.	Front leg finisher (inner)	12.	Seat cushion front finisher
13.	Occupant classification system harness	14.	Occupant classification system control unit	15.	Occupant classification system sensor
16.	Seat harness	17.	Seat cushion outer finisher (LH)	18.	Seat cushion inner finisher (LH)
19.	Seat frame assembly	20.	Rear leg finisher (inner)	21.	Rear leg finisher (outer)
22.	Headrest holder (locked)	23.	Headrest	A.	Refer to INSTALLATION.

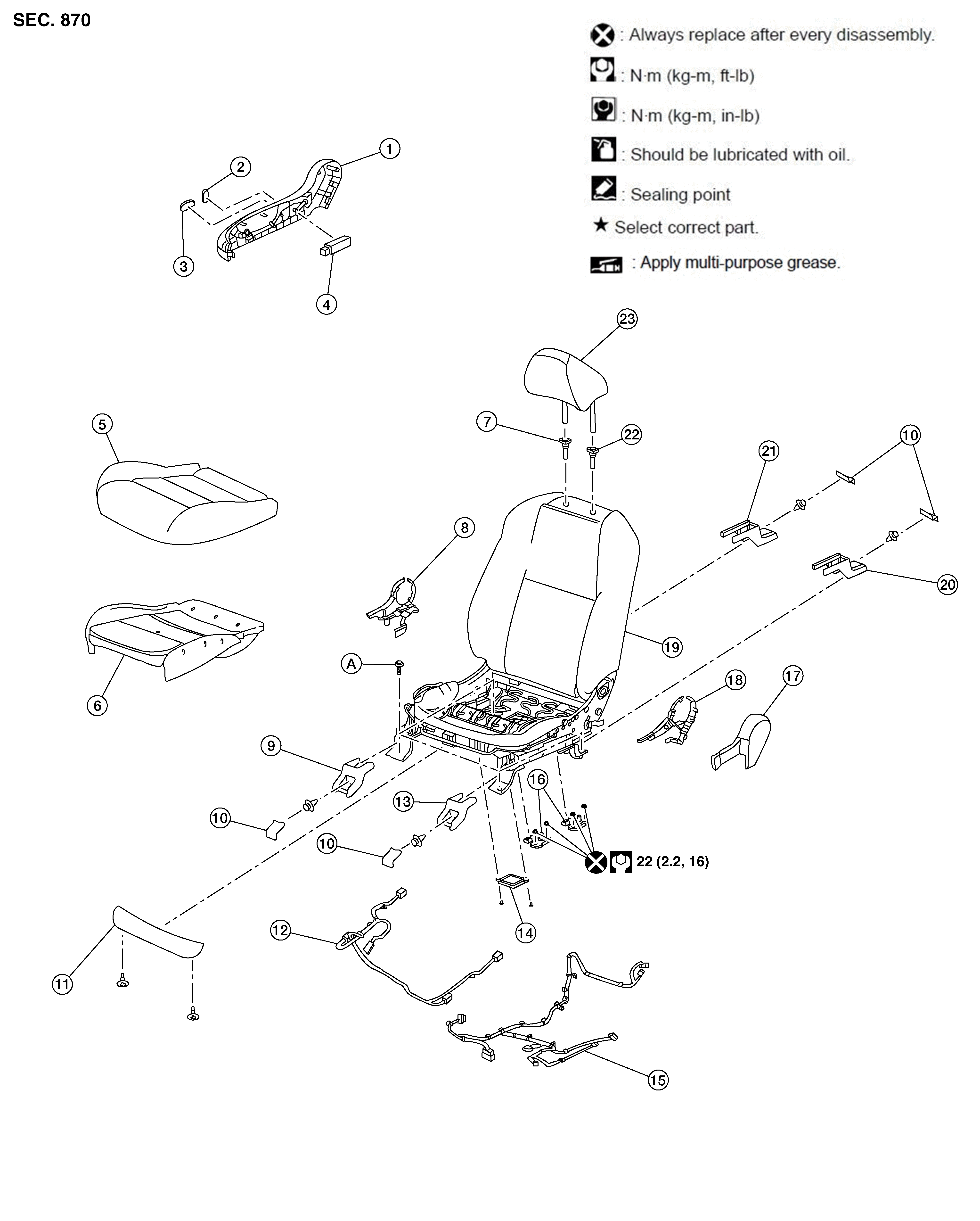

Passenger Seat - Without Heated Seats

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat cushion outer finisher (RH)	2.	Seat recline knob	3.	Seat slide knob
4.	Power seat switch	5.	Seat cushion trim	6.	Seat cushion pad
7.	Headrest holder (free)	8.	Seat cushion outer finisher (RH)	9.	Front leg finisher (outer)
10.	Front seat leg finisher cover	11.	Seat cushion front finisher	12.	Occupant classification system harness
13.	Front leg finisher (inner)	14.	Occupant classification system control unit	15.	Seat harness
16.	Occupant classification system sensor	17.	Seat cushion outer finisher (LH)	18.	Seat cushion inner finisher (LH)
19.	Seat frame assembly	20.	Rear leg finisher (inner)	21.	Rear leg finisher (outer)
22.	Headrest holder (locked)	23.	Headrest	A.	Refer to INSTALLATION.
