Climate Controlled Seat Control Unit: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat. Refer to Removal and Installation  (driver side) or Removal and Installation  (passenger side).
  2. Remove climate controlled seat control unit using the following procedure:
    1. For driver seat, perform the following steps:

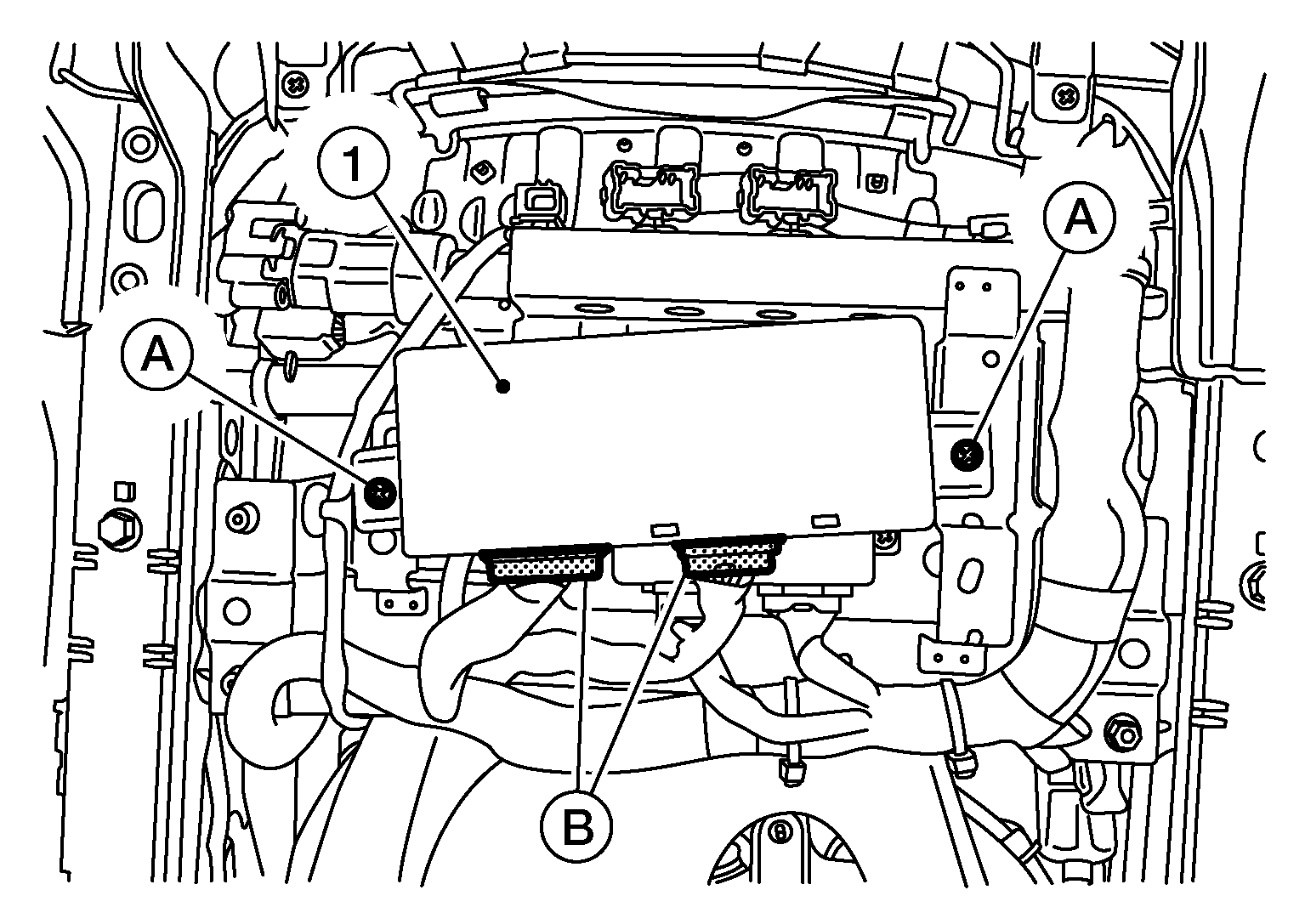

      1. Remove screws (A), then disconnect harness connectors (B) and remove driver seat control unit (1).
        GNSALJIA1799Z-799Courtesy of NISSAN NORTH AMERICA, INC.

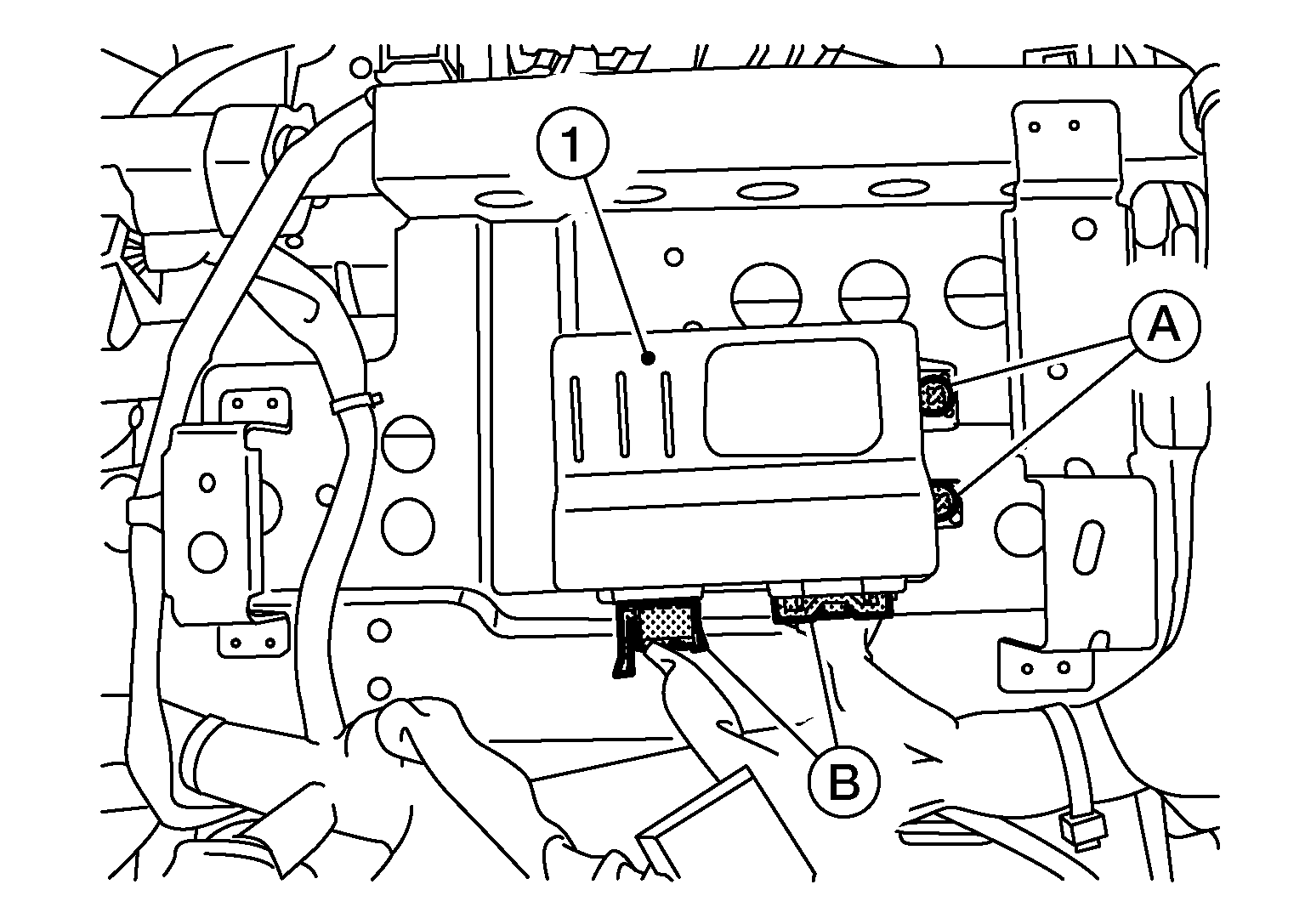

      2. Remove screws (A), then disconnect harness connectors (B) and remove climate controlled seat control unit (1).
        GNSALJIA1800Z-800Courtesy of NISSAN NORTH AMERICA, INC.
    2. For passenger seat, perform the following steps:

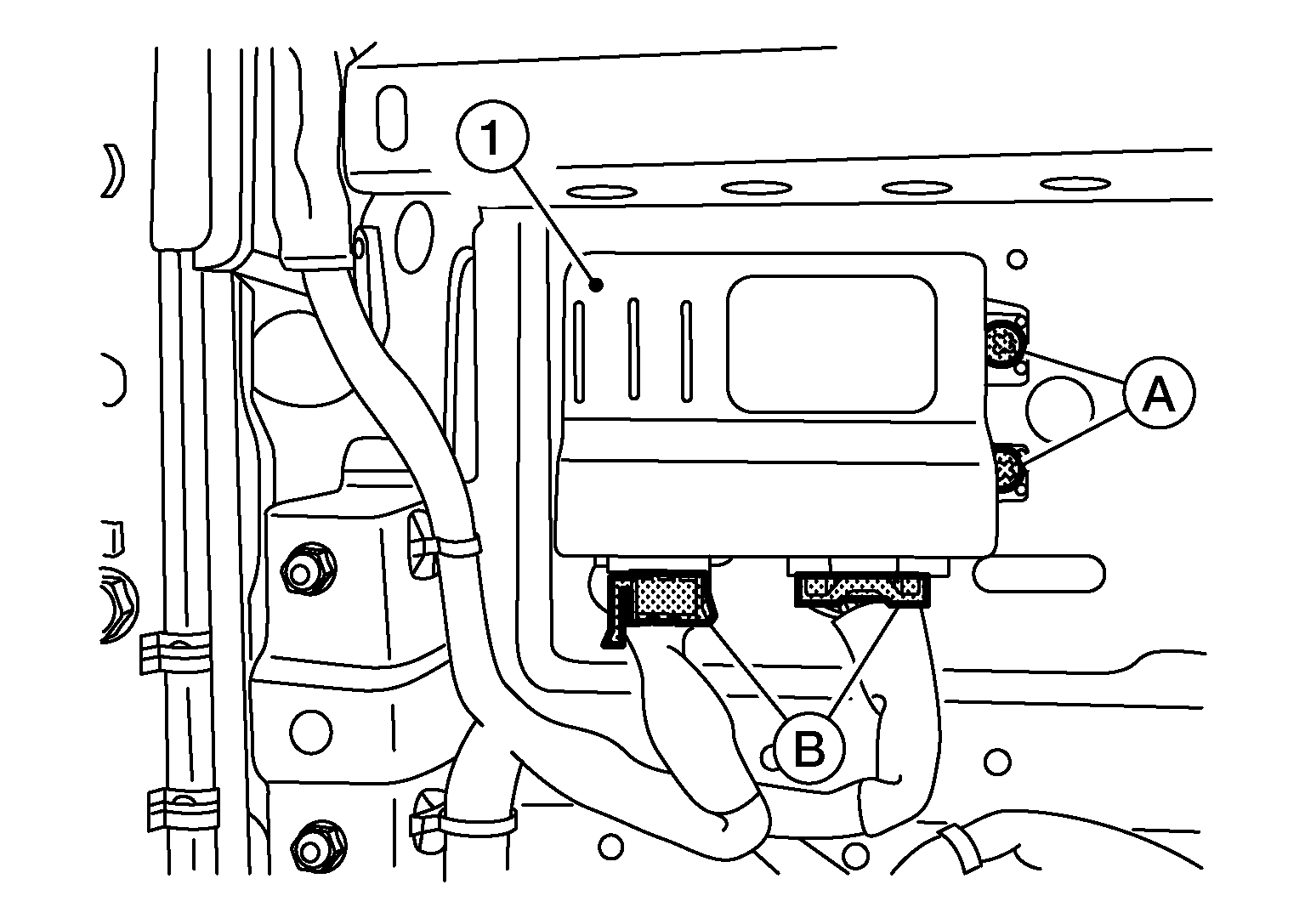

      1. Remove screws (A), then disconnect harness connectors (B) and remove climate controlled seat control unit (1).
        GNSALJIA1801Z-801Courtesy of NISSAN NORTH AMERICA, INC.
