Climate Controlled Seat Blower Assembly: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat. Refer to Removal and Installation  (driver side) or Removal and Installation  (passenger side).
  2. From under the rear of the front passenger seat, release the seatback J-hooks (A) and position seatback flap (B) aside.
    GNSDB117889Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

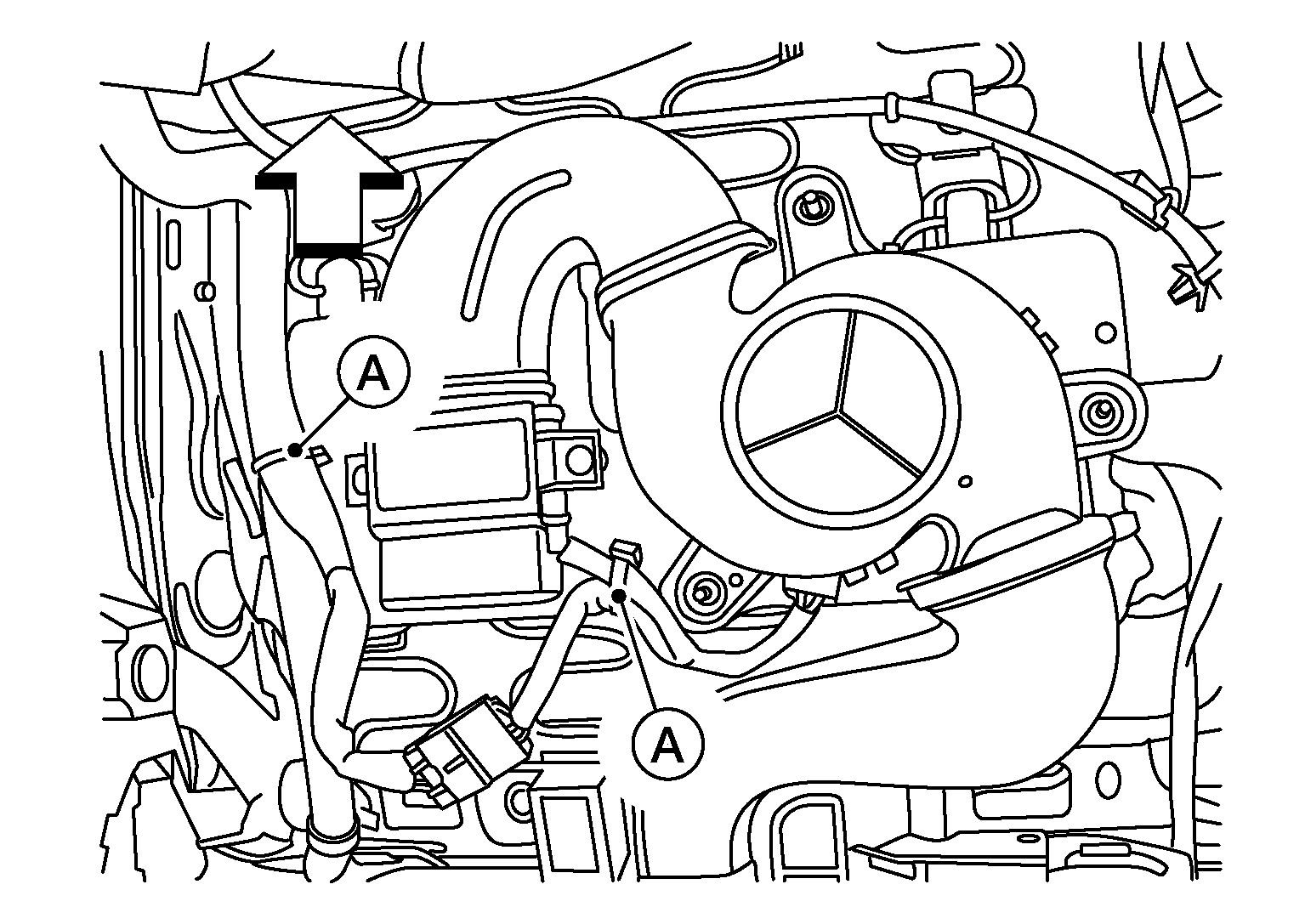

  3. Release harness clips (A) from bracket.
    GNSALJIA1804Z-804Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

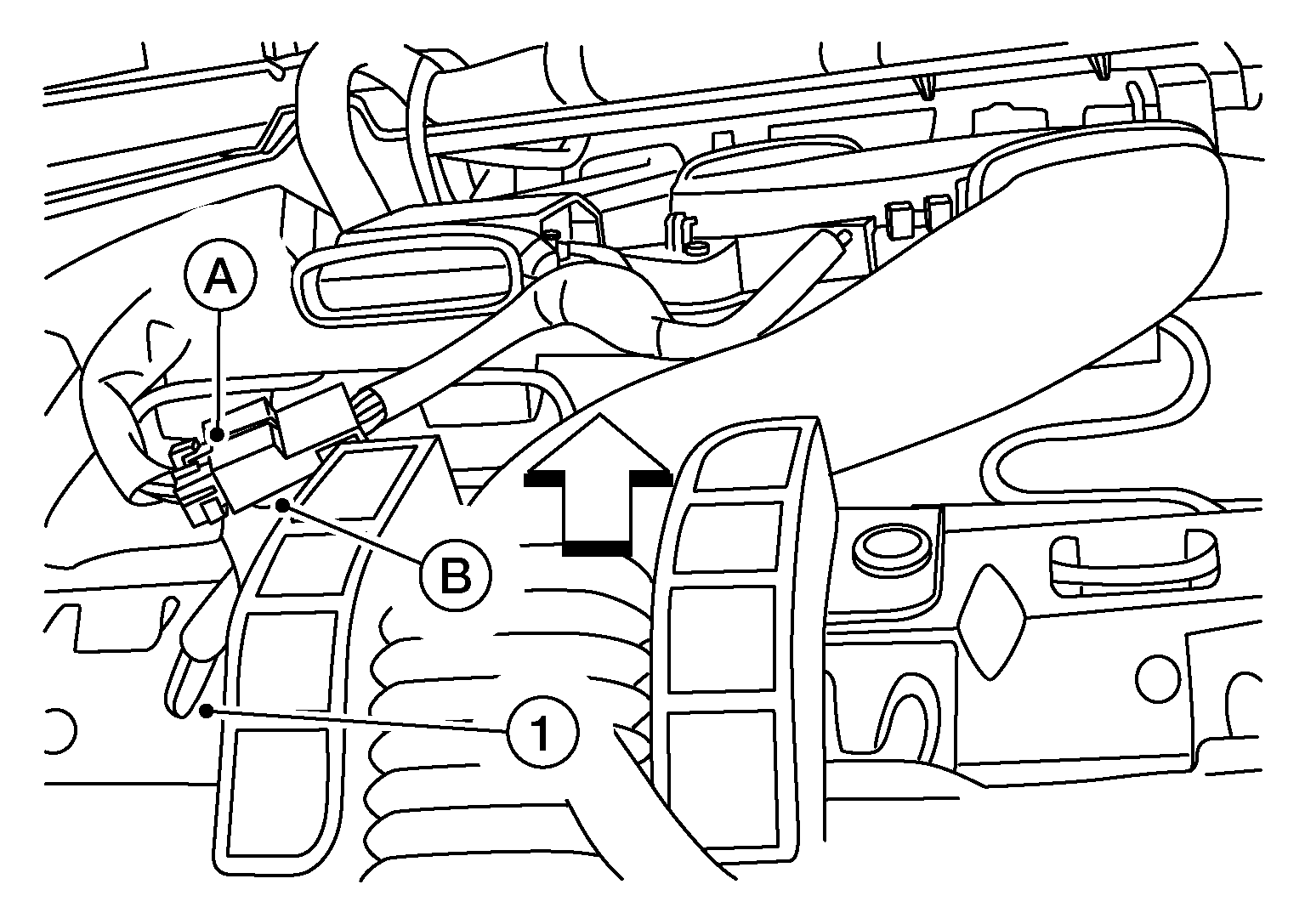

  4. Disconnect harness connector (A) and release harness clip (B) from seat frame (1).
    GNSALJIA1805Z-805Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

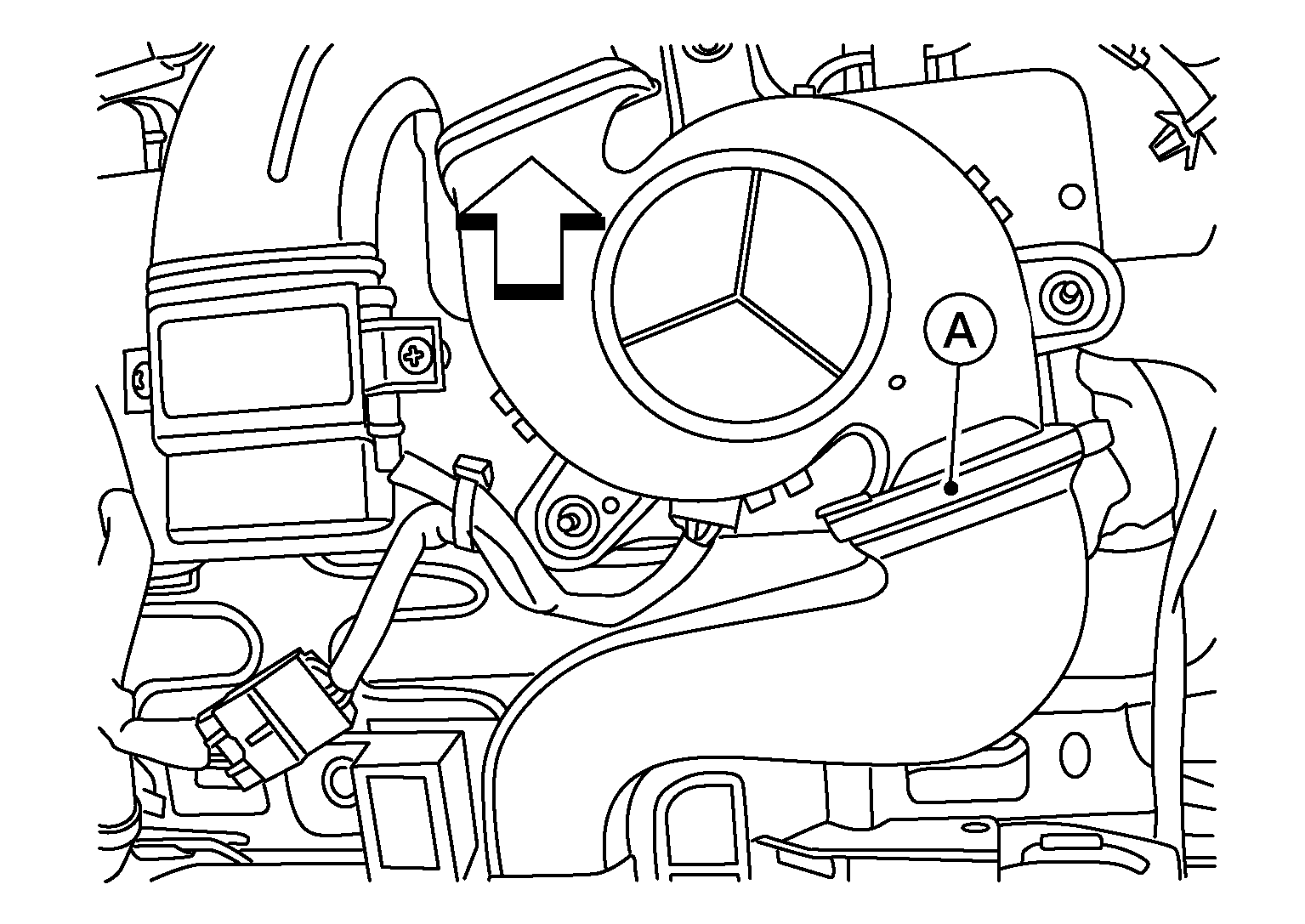

  5. Remove tie strap (A) from seatback angle duct.
    GNSALJIA1806Z-806Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse tie strap; new tie strap must be used for installation.

    SYMBOL

    : Front
  6. Release bracket pawls and remove bracket and climate controlled seat blower assembly from seat frame.
  7. Remove screws (A) from climate controlled seat blower assembly (1) and screws (B) from bracket (2), then remove climate controlled seat blower assembly (1).
    GNSALJIA1807Z-807Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
