Climate Controlled Seat Blower Assembly: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION: Do not reuse tie strap; new tie strap must be used for installation.

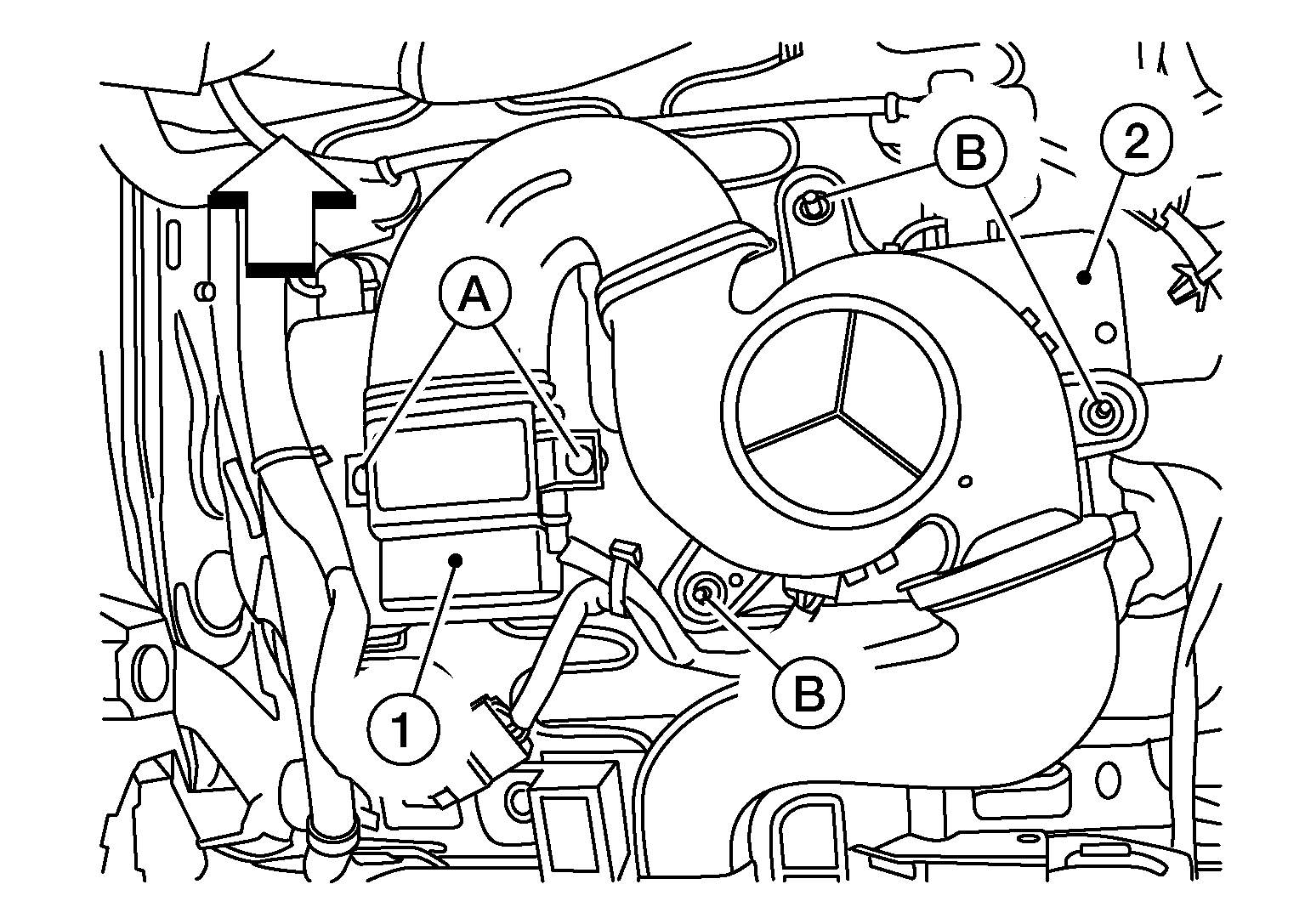

Tighten screws (A) from climate controlled seat blower assembly (1) and screws (B) from bracket (2), then remove climate controlled seat blower assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	8-32 x 5/8 Screw	: 0.5 Nm (0.05 kg-m, 4 in-lb)
(B)	M4x10mm Screw	: Hand tighten

: Front
