Diagnosis Procedure

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK TRANSFER ROTARY POSITION SENSOR SIGNAL

    SYMBOL CONSULT

    1. Turn the ignition switch ON.
    2. Check the voltage between transfer control unit harness connector and ground.

      +

      -

      Voltage

      Transfer control unit

      Connector

      Terminal

      E142

      15

      Ground

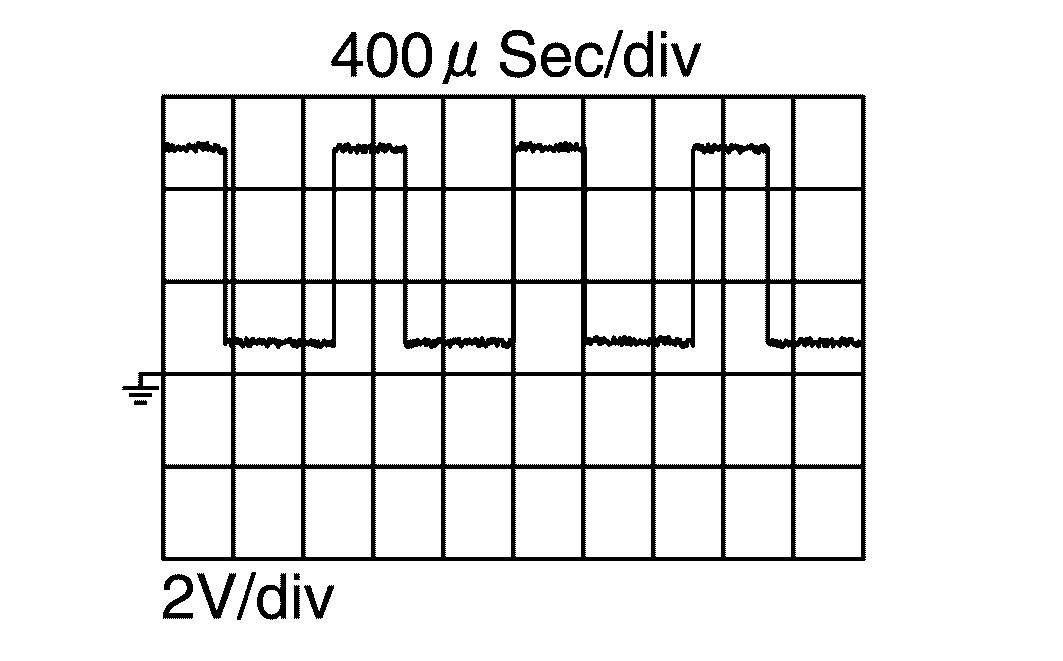

      GNSJPDIE0268GB-268Courtesy of NISSAN NORTH AMERICA, INC.
    3. Start the engine.
    4. Select "ALL MODE AWD/4WD" >> "Data Monitor" >> "ROTARY POSITION SENSOR".
    5. Check that the "ROTARY POSITION SENSOR" value.

      Monitor Item

      Condition

      Value

      ROTARY POSITION SENSOR

      4WD mode: 2WD

      11 - 14%

      4WD mode: 4H

      34 - 44%

      4WD mode: 4LO

      75 - 85%

    Is the inspection result normal?

    YES

    Replace transfer control unit. Refer to Removal and Installation .

    NO

    GO TO 2 .

  2. CHECK TRANSFER ROTARY POSITION SENSOR POWER SUPPLY
    1. Turn the ignition switch OFF.
    2. Disconnect transfer rotary position sensor harness connector.
    3. Turn the ignition switch ON.
      CAUTION: Never start the engine.
    4. Check the voltage between transfer rotary position sensor harness connector terminals.

      +

      "

      Voltage

      (Approx.)

      Transfer rotary position sensor

      Connector

      Terminal

      F219 (Cummins 5.0L)

      2

      3

      5 V

      F18 (VK56VD)

    Is the inspection result normal?

    YES

    GO TO 4 .

    NO

    GO TO 3 .

  3. CHECK TRANSFER ROTARY POSITION SENSOR CIRCUIT
    1. Turn the ignition switch OFF.
    2. Disconnect transfer control unit harness connector.
    3. Check the continuity between transfer control unit harness connector and transfer rotary position sensor harness connector.

      Transfer control unit

      Transfer rotary position sensor

      Continuity

      Connector

      Terminal

      Connector

      Terminal

      E142

      5

      F219 (Cummins 5.0L)

      2

      Yes

      6

      3

      5

      F18 (VK56VD)

      2

      6

      3

    4. Check the continuity between transfer rotary position sensor harness connector and ground.

      Transfer rotary position sensor

      -

      Continuity

      Connector

      Terminal

      F219 (Cummins 5.0L)

      2

      Ground

      No

      3

      F18 (VK56VD)

      2

      3

    Is the inspection result normal?

    YES

    Replace transfer rotary position sensor. Refer to Removal and Installation .

    NO

    Repair or replace error-detected parts.

  4. CHECK TRANSFER ROTARY POSITION SENSOR SIGNAL CIRCUIT
    1. Turn the ignition switch OFF.
    2. Disconnect transfer control unit harness connector.
    3. Check the continuity between transfer control unit harness connector and transfer rotary position sensor harness connector.

      Transfer control unit

      Transfer rotary position sensor

      Continuity

      Connector

      Terminal

      Connector

      Terminal

      E142

      15

      F219 (Cummins 5.0L)

      1

      Yes

      F18 (VK56VD)

    4. Check the continuity between transfer rotary position sensor harness connector and ground.

      Transfer rotary position sensor

      -

      Continuity

      Connector

      Terminal

      F219 (Cummins 5.0L)

      1

      Ground

      No

      F18 (VK56VD)

    Is the inspection result normal?

    YES

    Inspection End.

    NO

    Repair or replace error-detected parts.
