Removal and Installation: Cummins 5.0L: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery or batteries negative terminal(s). Refer to Battery Disconnect .
  2. Remove the drive belt. Refer to Removal and Installation - Drive Belt .
  3. Remove the front wheel and tire (RH) using power tool. Refer to Removal and Installation .
  4. Remove the front fender protector (RH). Refer to Removal and Installation - Front Fender Protector .

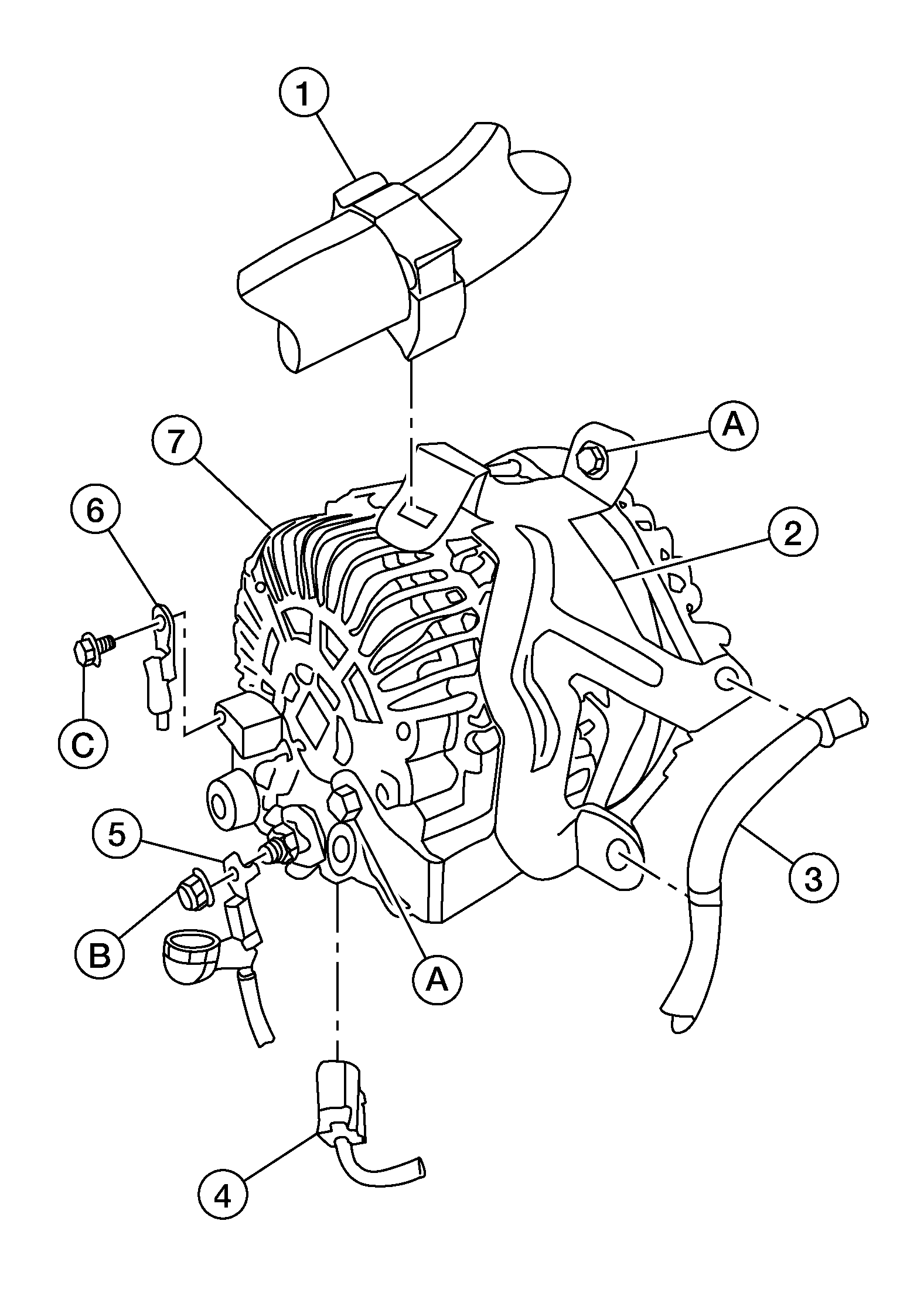

  5. Disconnect the following:
    • Engine harness retainer (1) from engine harness bracket (2).
    • Negative battery cable (3) from engine harness bracket (2).
    • Harness connector (4) from bottom of generator (7).
    • Terminal bolt (C) and generator ground wire (6) from back of generator (7).
    • Terminal nut (B) and harness (5) from back of generator (7).
    • Bolts (A) and engine harness bracket (2) from generator (7) (if necessary).
    GNSAWMIA1877Z-877Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove upper and lower bolts, and generator from vehicle.
  7. Remove bolts and generator bracket from engine (if necessary).
