Removal and Installation: Cummins 5.0L: Notes

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

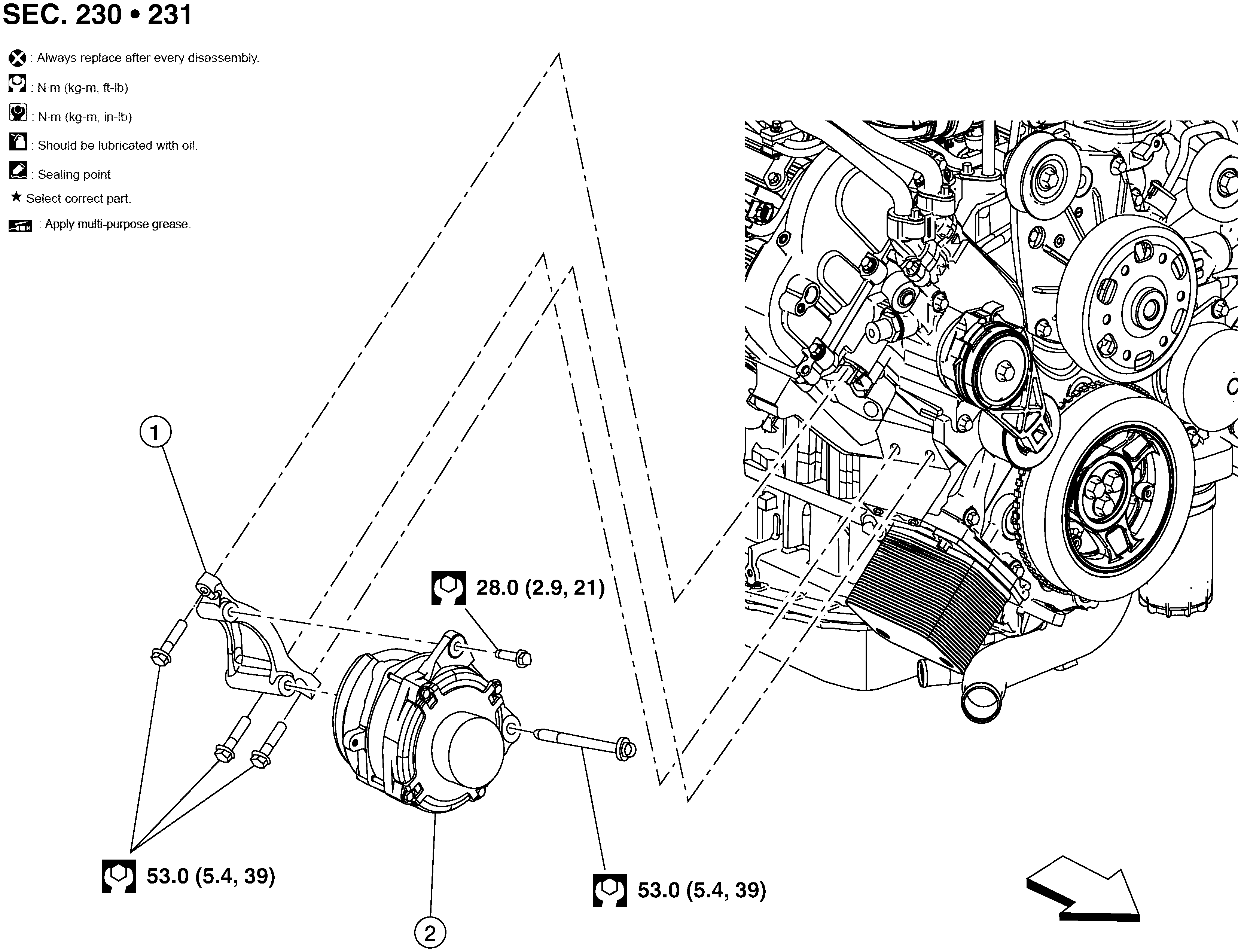

Fig 1: Generator 5.0L With Torque Specifications
GNSAWMIA1876Z-876Courtesy of NISSAN NORTH AMERICA, INC.

1.

Generator bracket

2.

Generator

SYMBOL

Front
