Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery or batteries. Refer to Battery Disconnect .
  2. Remove the cluster lid C. Refer to Removal and Installation .

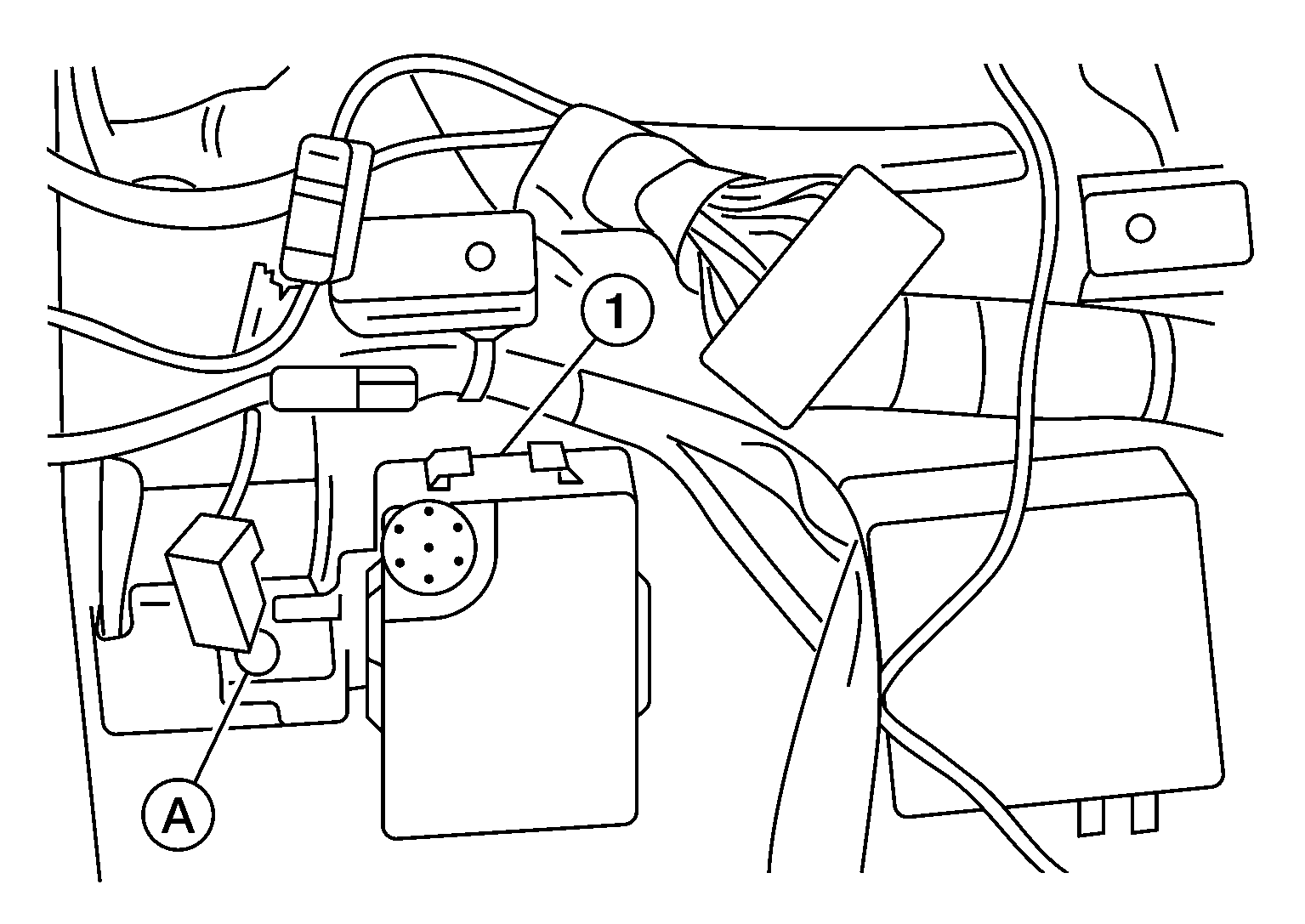

  3. Remove the CAN gateway screw (A).
    GNSALMIA0861Z-861Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connector from the CAN gateway.
  5. Remove the CAN gateway (1).
