Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Install the fuel level sensor unit and fuel pump assembly with the fuel feed hose facing the left side of the vehicle. Use a new O-ring.
CAUTION: Do not reuse O-ring.

Connect the quick connector as follows:

Courtesy of NISSAN NORTH AMERICA, INC.
1. Check the connection for damage or any foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a click is heard.

After the tube is connected, make sure the connection is secure by performing the following checks:

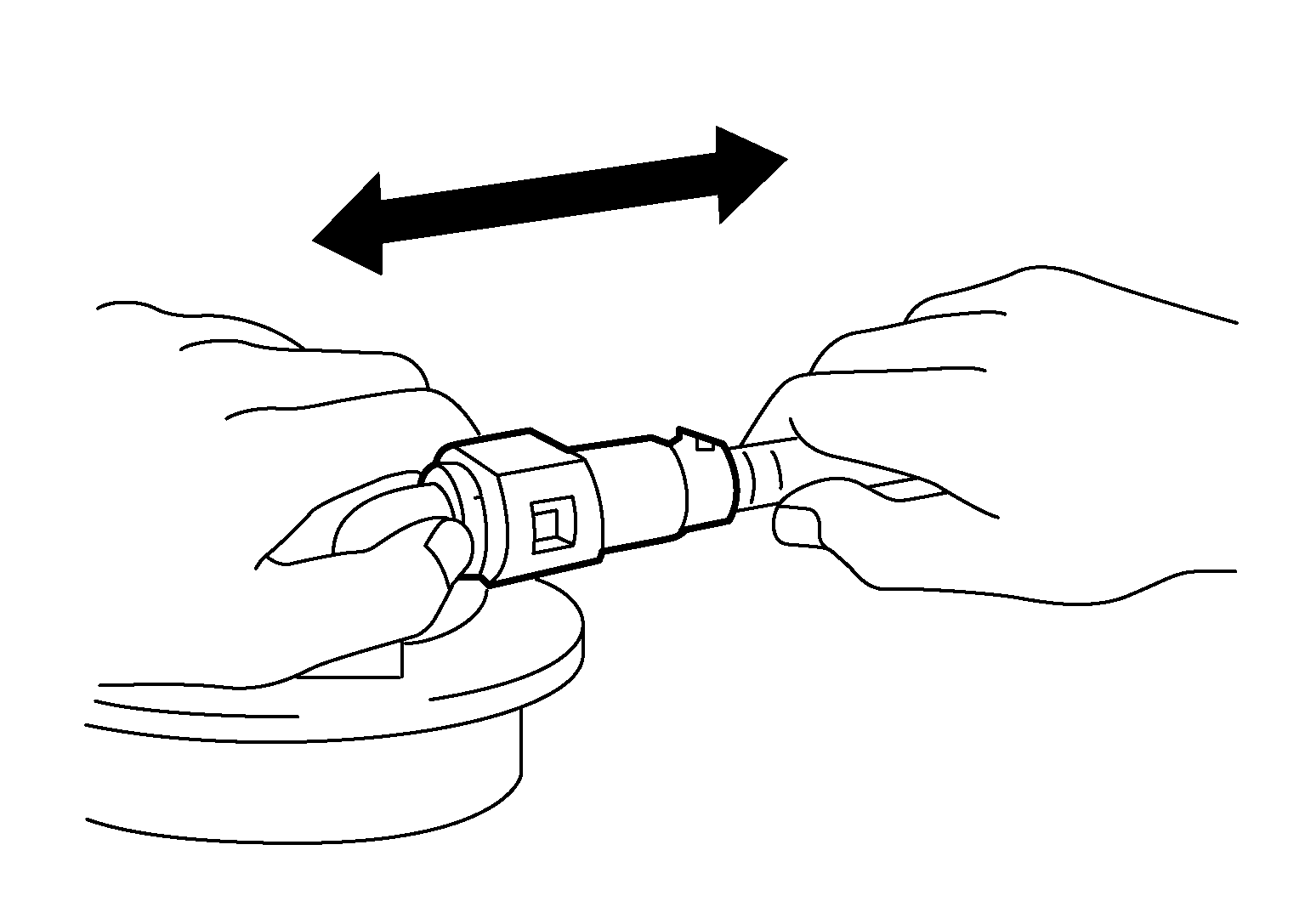

Pull the tube and the connector to make sure they are securely connected.

Visually confirm that the two retainer tabs (3) are connected to the quick connector (2).

Courtesy of NISSAN NORTH AMERICA, INC.

(1): Resin tube

(4): Retainer

(A): Connection (cross-section)

(B): Disconnection

(C): To under floor fuel line

(D): To fuel tank
