Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow the "General Precautions" before working on the fuel system. Refer to General Precaution .
WARNING:
Battery acid and battery acid fumes are extremely dangerous and can cause severe burns and explosion. To help reduce the risk of personal injury:
- Wear appropriate goggles and protective clothing.
- Always properly ventilate the area where the service is being performed.
- Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces.
- To avoid arcing, remove the negative (-) battery cable first and attach the negative (-) battery cable last.
- If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
- Disconnect the battery or batteries. Refer to Battery Disconnect .
- Remove air cleaner lid and air inlet connection air ducts.CAUTION: Cap or wrap the air inlet ducts with suitable material to avoid dirt or contaminants from entering the air inlet system or engine.

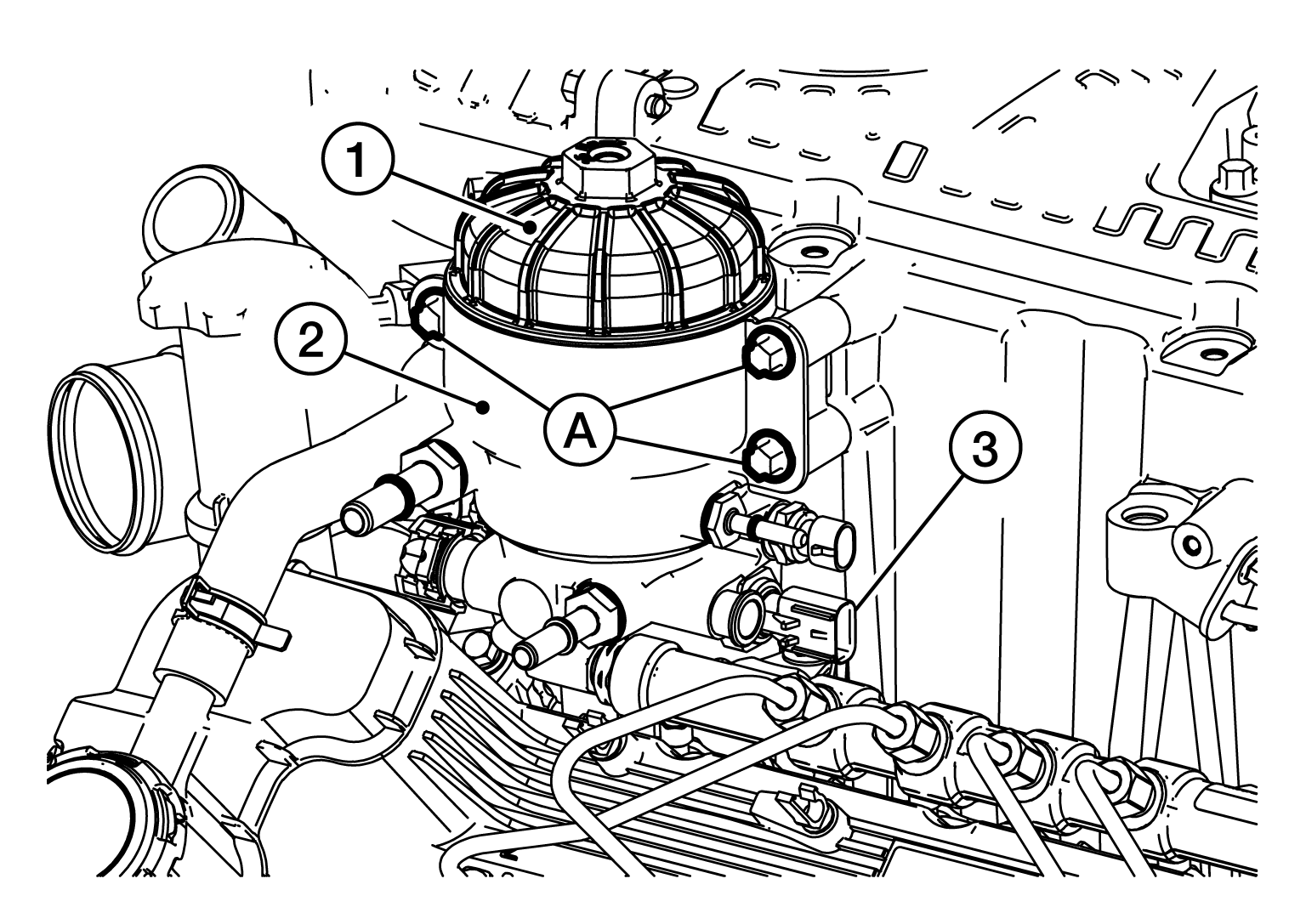

- Loosen the fuel filter housing (Stage 2) lid (1) to allow fuel to drain back to the fuel tank.
- Disconnect the harness connector (2) from the fuel pressure sensor (3).
- Loosen the bolts (A) securing the fuel filter housing [Stage 2 (2)] to the intake manifold to access the fuel pressure sensor (3).
- Remove the fuel pressure sensor from the fuel filter housing [Stage 2 (1)].
