Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow the "General Precautions" before working on the fuel system. Refer to General Precaution .
WARNING:
The fuel system (fuel pump, high pressure fuel lines, fuel rail, injectors) contains very high pressure fuel. To avoid the risk of personal injury or fire:
- Do not loosen any fittings while the engine is running.
- Wait at least 10 minutes after shutting down the engine before loosening any fittings in the high-pressure fuel system to allow pressure to decrease to a lower level.
- Wear appropriate eye protection and protective equipment as high-pressure fuel spray can penetrate skin.
- Never smoke or allow sparks or flames (such as pilot lights, electrical switches, or welding equipment) in the work area. Never allow diesel fuel to spill onto a hot exhaust manifold which can cause a fire.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
- Remove fuel tank. Refer to Removal and Installation .

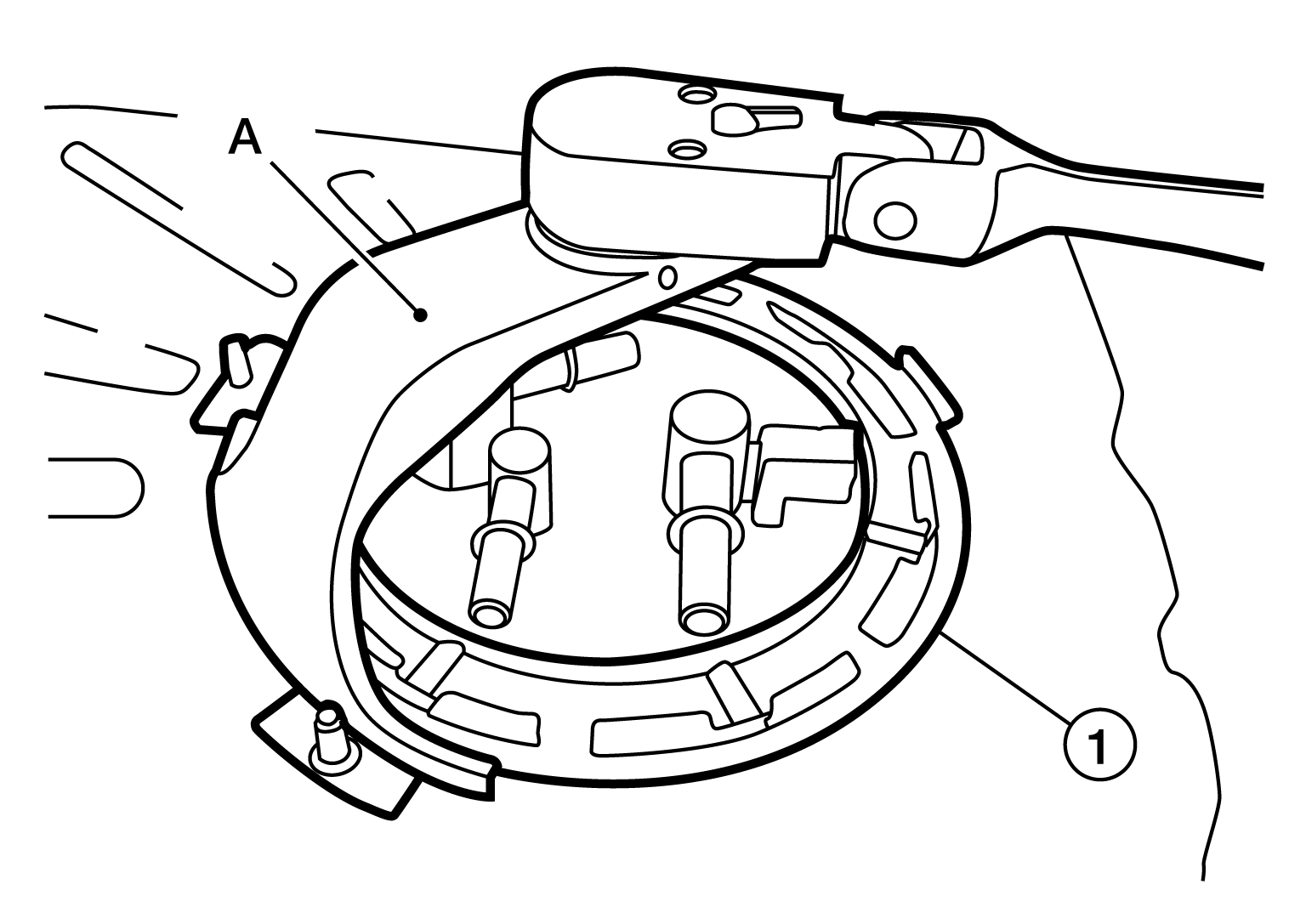

- Remove the lock ring (1) using Tool (A) as shown.
Tool number
: KV101207S0 (-)
- Remove the fuel level sensor unit and discard the O-ring.CAUTION:
- Do not bend the float arm during removal.
- Avoid impacts such as dropping when handling the components.
- Do not reuse O-ring.
- Release pawls and remove chamber assembly from fuel tank (if necessary).
