Inspection After Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

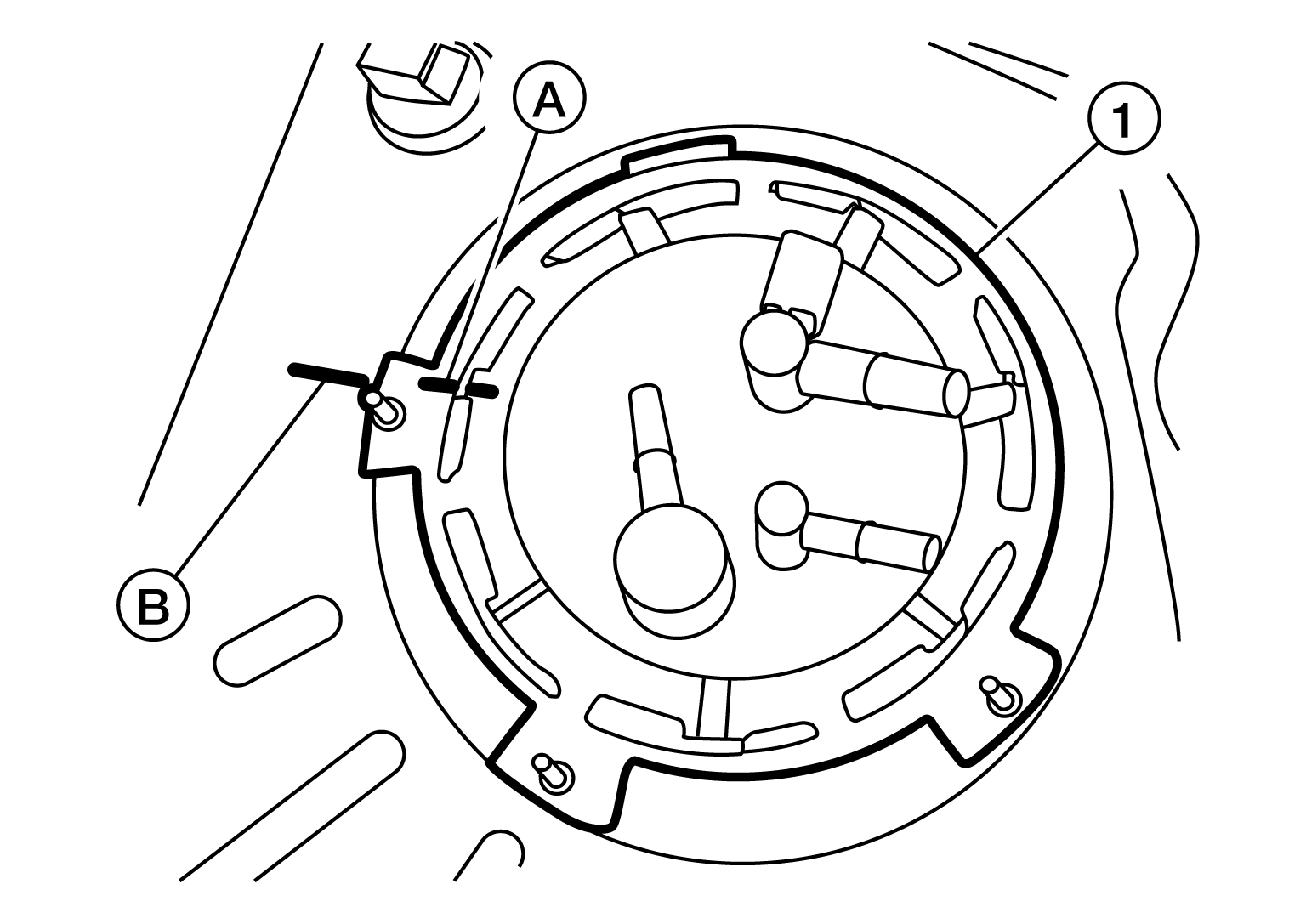

After removal, observe the alignment on the fuel level sensor unit (1) between the fuel level sensor unit tabs (A) and the matching mark (B) on the fuel tank as shown. This alignment is necessary for proper installation.

GNSALBIA2721Z-721Courtesy of NISSAN NORTH AMERICA, INC.
