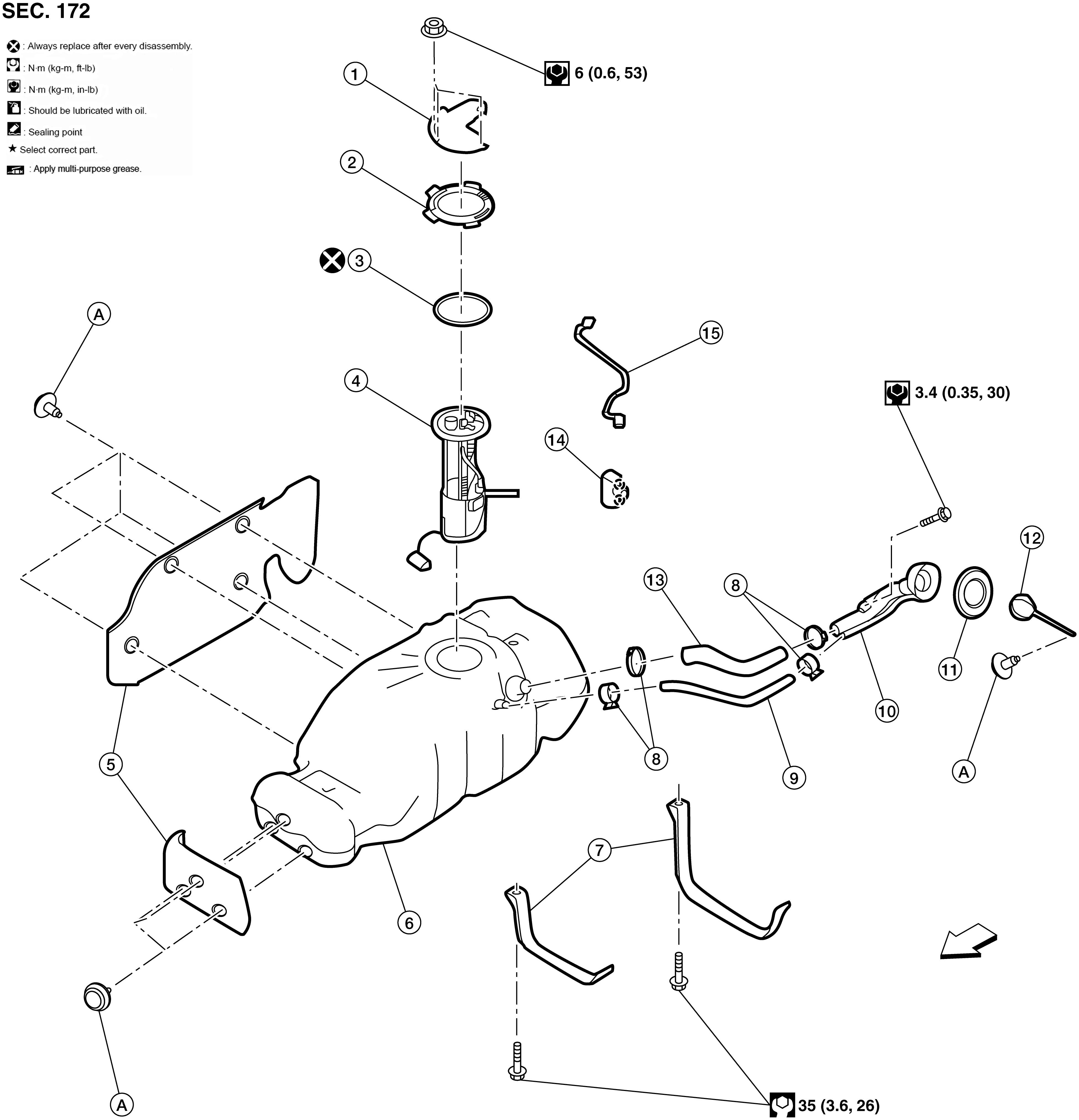

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Fuel level sensor unit protector |
2. |
Lock ring |
3. |
O-ring |
|
4. |
Fuel level sensor unit |
5. |
Fuel tank protector |
6. |
Fuel tank |
|
7. |
Fuel tank mounting strap |
8. |
Clamp |
9. |
Fuel filler return hose |
|
10. |
Fuel filler tube |
11. |
Grommet |
12. |
Fuel filler cap |
|
13. |
Fuel filler hose |
14. |
Chamber assembly |
15. |
Breather tube |
|
A. |
Clip |
|
Pawl |
|
Front |
