Fuel Tank Inlet Valve: Inspection: Setup

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

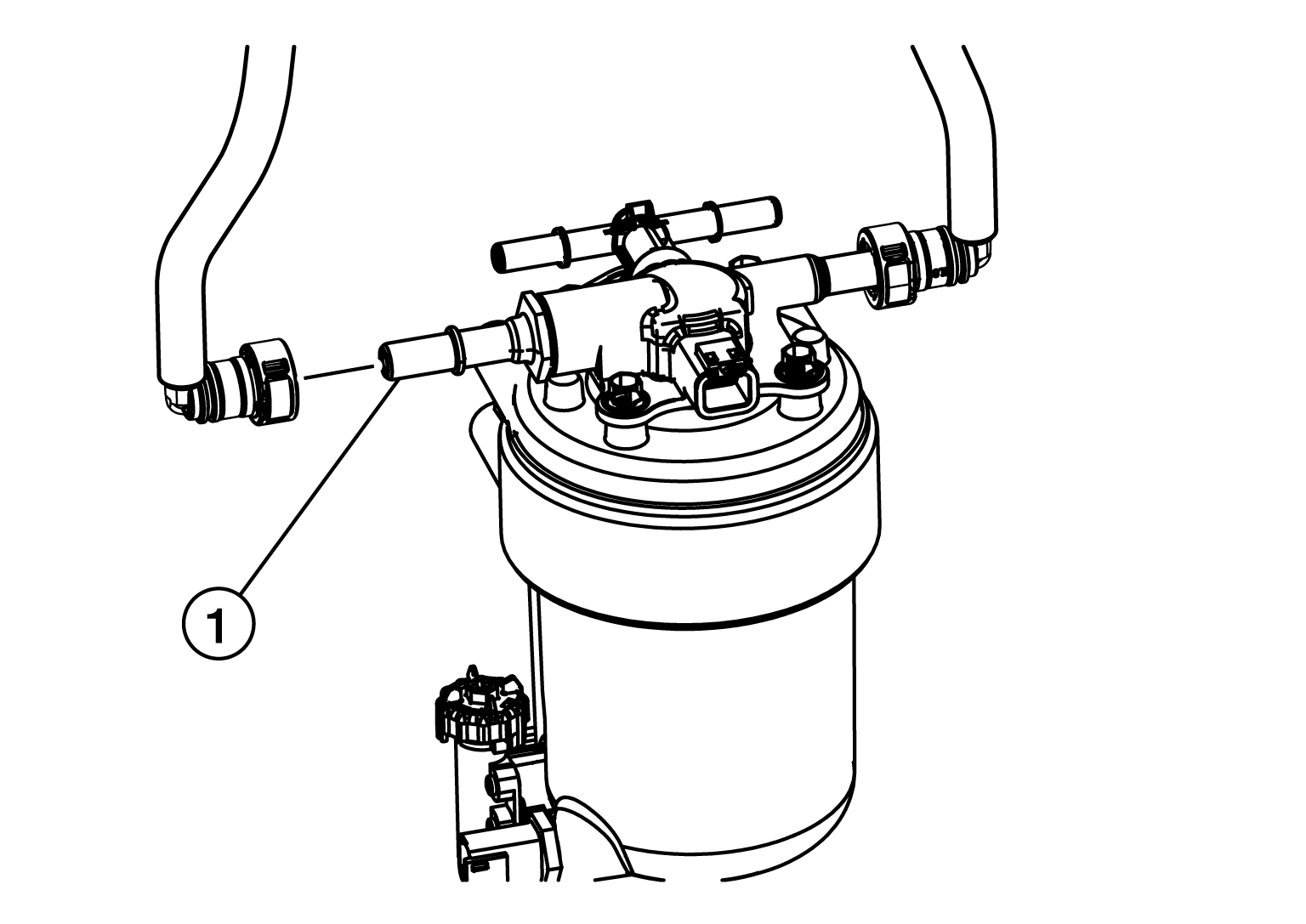

  1. Disconnect the fuel supply line from the Stage I fuel filter inlet (lift pump inlet) connection (1).
    GNSALBIA2701Z-701Courtesy of NISSAN NORTH AMERICA, INC.
  2. Install fuel pressure test kit between the fuel supply line and the inlet to the lift pump.

    Tool number

    : -- - (J-54420)
  3. Install a vacuum gauge with a range of at least 0 to 101.6 kPa (0-1.04 kg/cm 2 , 0-14.7 psi) onto the pressure gauge adapter.
