Warning Chime System

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

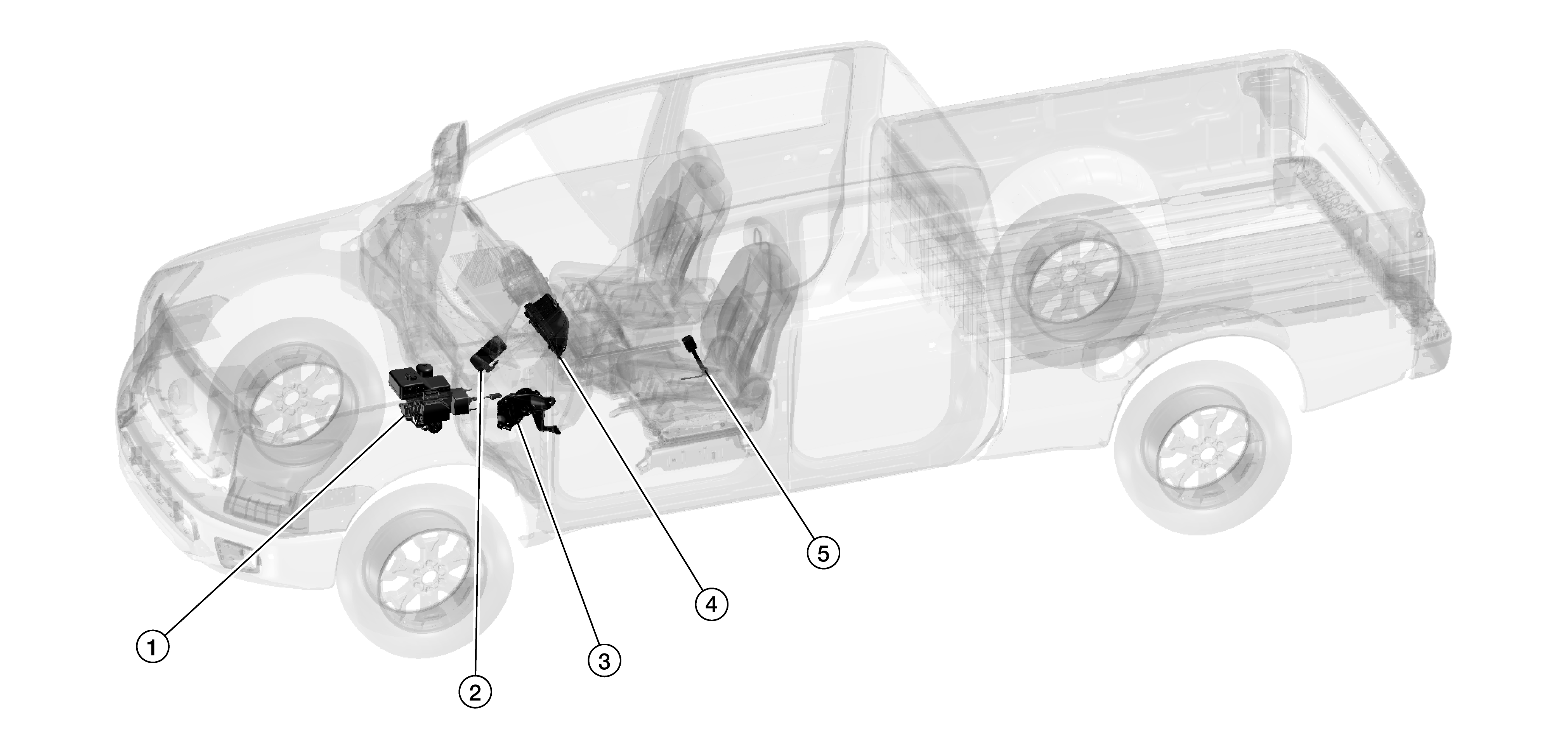

No.	Component	Function
1.	ABS actuator and electric unit (control unit)	Transmits the vehicle speed signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed installation location.
2.	BCM	Based on the signals received from various units and switches, transmits the buzzer output signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed installation location.
3.	Parking brake switch	Transmits the parking brake switch signal to the combination meter.
4.	Combination meter	Receives a buzzer output signal from the BCM via CAN communication and sounds the buzzer. Judges whether the parking brake is released using the vehicle speed signal and the parking brake switch signal, and sounds the buzzer if necessary.
5.	Seat belt buckle switch LH	Transmits a seat belt buckle switch signal LH to the combination meter.
