Door Motor: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heating and cooling unit assembly. Refer to Removal and Installation .

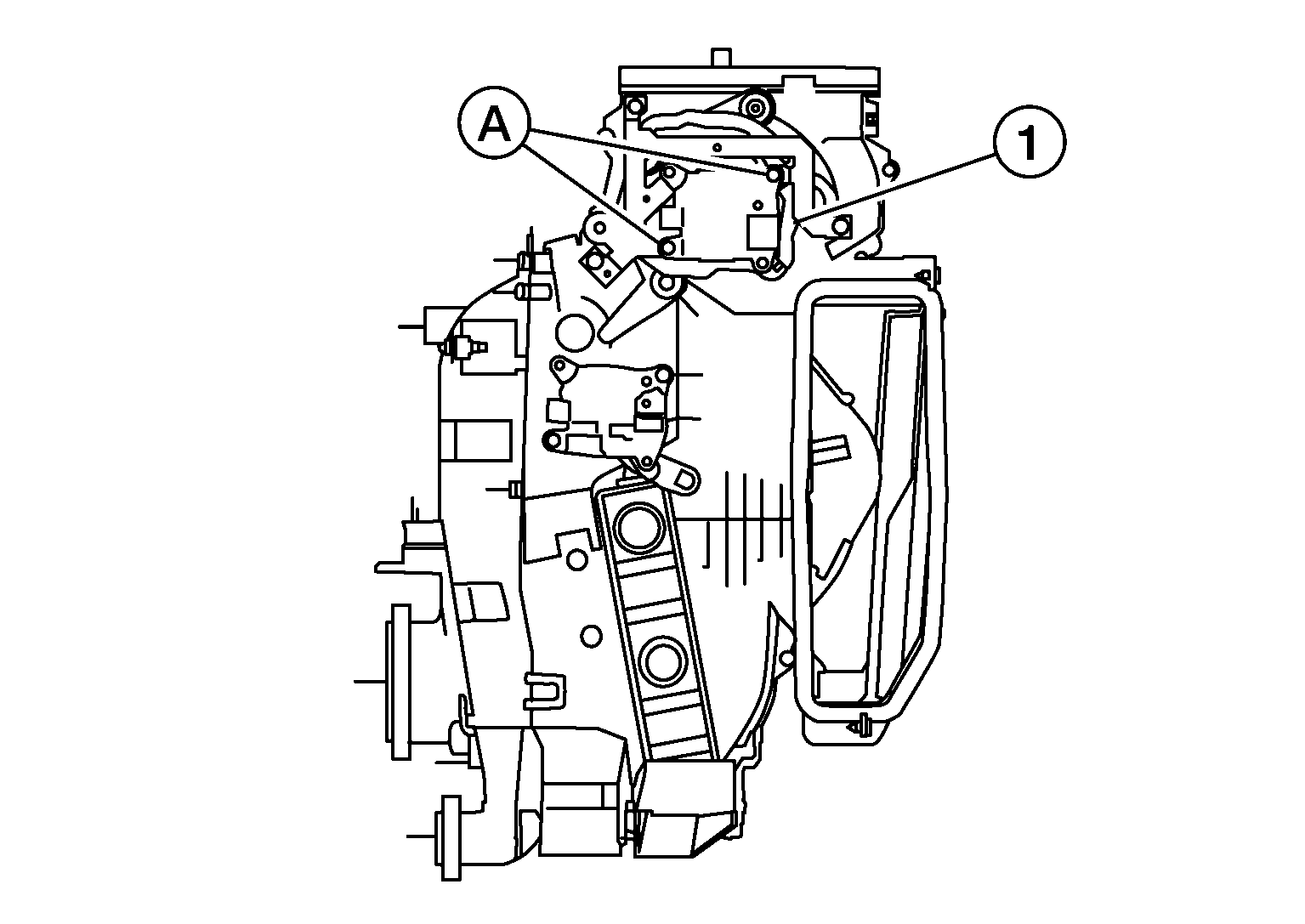

  2. Remove mode door motor screws (A).
    GNSAWIIA2082Z-082Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from the mode door motor (1) and remove.
