Component Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

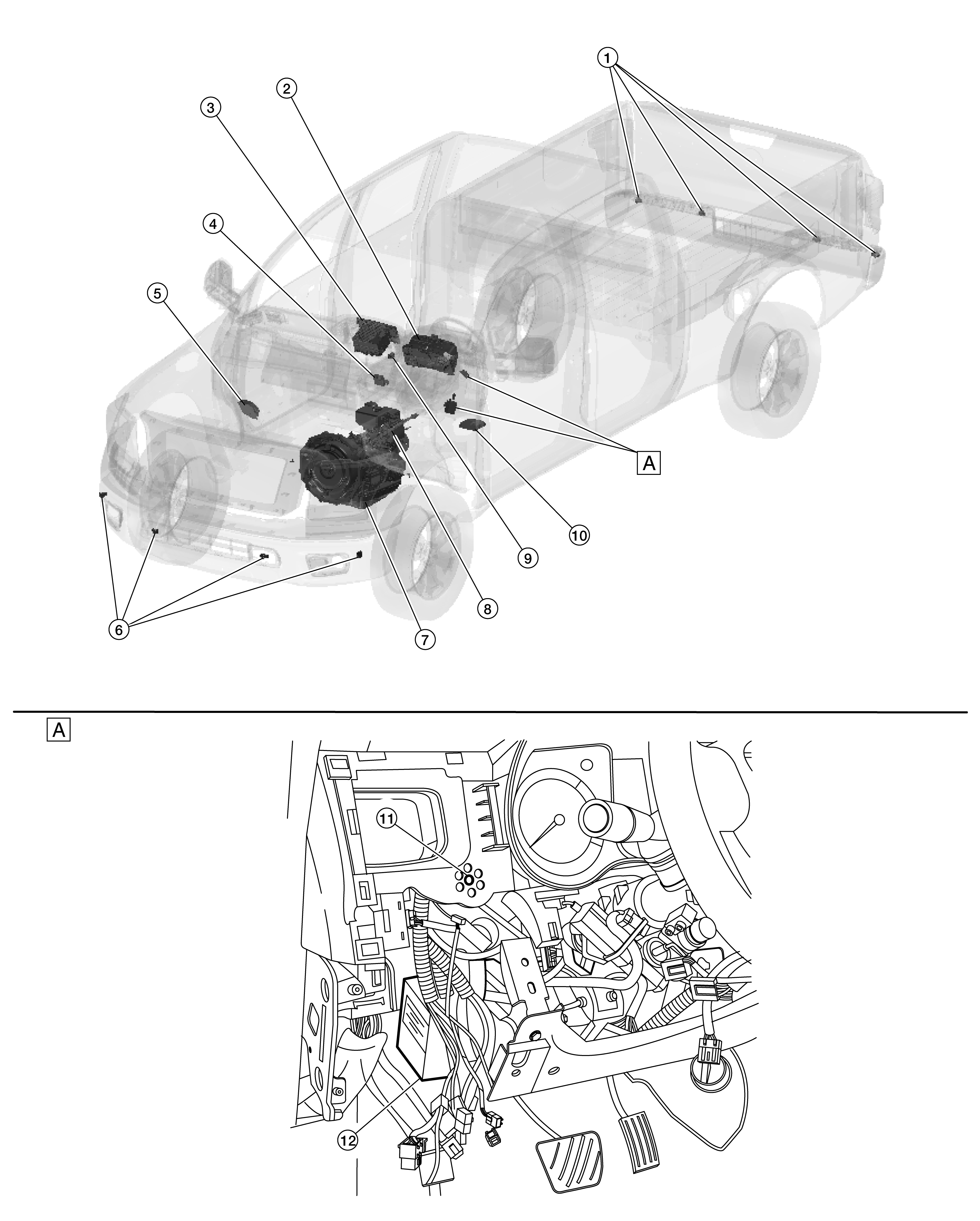

A.	Instrument lower panel LH (view with instrument lower panel LH removed)

No.	Component	Function
1.	Rear sonar sensors	Refer to Sonar Sensor .
2.	Combination meter	Refer to Combination Meter (Type A)Combination Meter (Type B) . Displays the sonar indicator.
3.	AV control unit	Refer to AV Control Unit Displays an intelligent around view monitor image with sonar indicator.
4.	ADAS control unit	Refer to ADAS Control Unit . Supplies power and ground for the sonar system OFF switch, when equipped.
5.	TCM (Cummins 5.0L)	Refer to TCM . Supplies the P (park) or D (drive) signal to the sonar control unit via CAN communication.
6.	Front sonar sensors	Refer to Sonar Sensor .
7.	TCM (integral to the control valve assembly, built into the A/T assembly) (VK56VD)	Refer to TCM . Supplies the P (park) or D (drive) signal to the sonar control unit via CAN communication.
8.	ABS actuator and electric unit (control unit)	Refer to ABS Actuator and Electric Unit (Control Unit) . Supplies the speed signal to the sonar control unit via CAN communication.
9.	Sonar system OFF switch	Refer to Sonar System Off Switch .
10.	Around view monitor control unit	Refer to Around View Monitor Control Unit . Renders the sonar indicator image for display on the AV control unit.
11.	Front sonar buzzer	Refer to Buzzer .
12.	Sonar control unit	Refer to Sonar Control Unit .
